China Elastomeric Rubber Foam Insulation For Ultra Low Temperature System Manufacturer, Pricelist

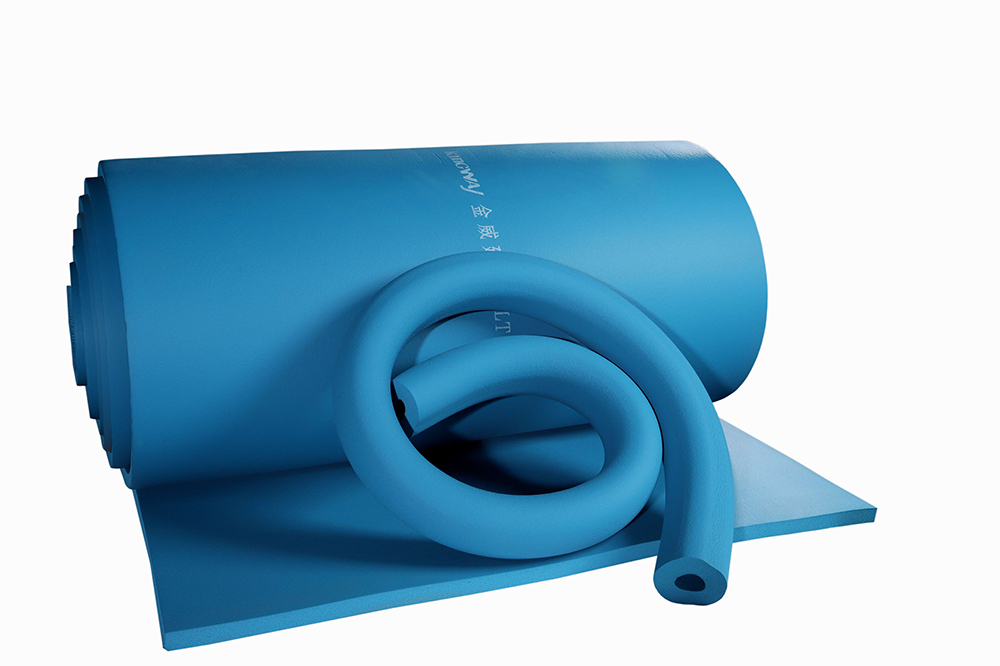

Kingflex ULT
Kingflex ULT is a flexible, high density and mechanically roubust, closed cell cryogenic thermal insulation material based on extrude elastomeric foam.

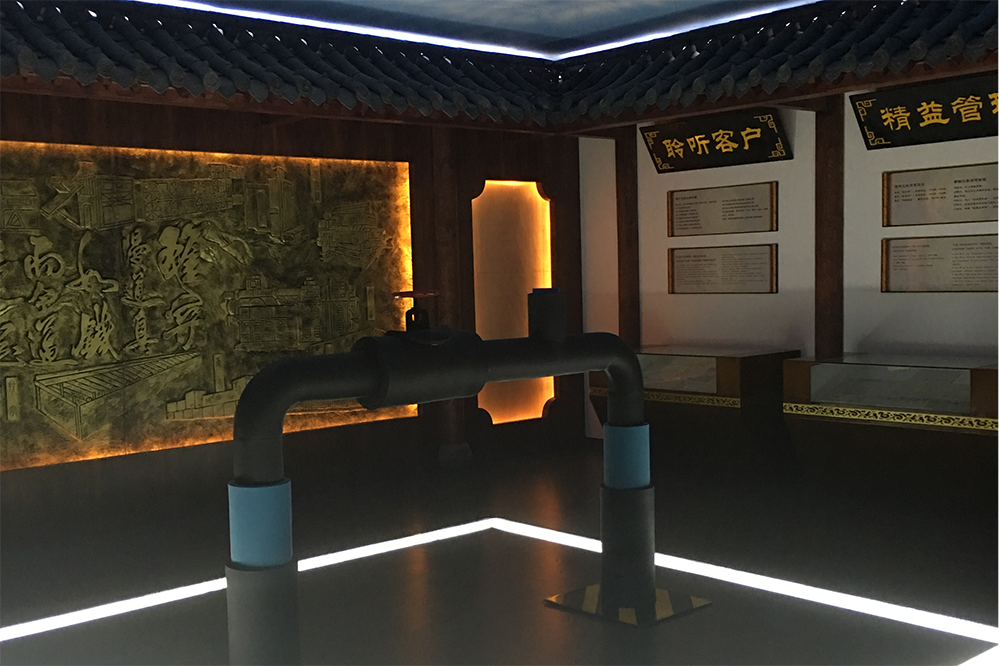

Kingflex flexible ultra low temperature adiabatic system has the inherent characteristics of impact resistance, and its cryogenic elastomer material can absorb the impact and vibration energy caused by the external machine to protect the system structure.
Kingflex Dimension Specification
Inches
mm
Size (L * W)
㎡ / Roll
3/4"
20
10 × 1
10
1"
25
8 × 1
8
Kingflex ULT insulation can be used in Low temperature storage tank; industrial gas and agricultural chemical production plants; platform pipe; gas station; nitrogen plant...
Property
Base material
Standard / Test Method
Kingflex ULT
Kingflex LT
Thermal Conductivity
-100°C: 0.028 -165°C: 0.021
0°C: 0.033 -50°C: 0.028
ASTM C177
Density Range
60-80Kg/m³
40-60Kg/m³
ASTM D1622
Recommend Operation Temperature
-200°C to 125°C
-50°C to 105°C
-
Percentage Of Close Areas
>95%
>95%
ASTM D2856
Moisture Performance Factor
NA
<1.96x10g(m.m.Pa)
ASTM E 96
Wet resistance Factor μ
NA
>10000
EN12086 / EN13469
Water Vapor Permeability Coefficient
NA
0.0039g/h.m² (25mm thickness)
ASTM E 96
PH
≥8.0
≥8.0
ASTM C871
Tensile Strength Mpa
-100°C: 0.30 -165°C: 0.25
0°C: 0.15 -50°C: 0.218
ASTM D1623
Compressive Strength Mpa
-100°C: ≤0.3
-40°C: ≤0.16
ASTM D1621
Frequently Asked Questions
What are the primary applications of Kingflex ULT insulation?
Kingflex ULT insulation is specifically engineered for extreme low-temperature systems, including low-temperature storage tanks, industrial gas and agricultural chemical production plants, platform pipes, gas stations, and nitrogen plants.
What is the recommended operating temperature range for Kingflex ULT?
Kingflex ULT insulation can safely operate in temperatures ranging from -200°C up to 125°C, making it ideal for demanding cryogenic applications.
How does the cryogenic elastomer material protect system structures?
The material features inherent impact resistance. Its cryogenic elastomer structure effectively absorbs external machine vibration and impact energy, protecting and stabilizing the overall piping and system structures.
What is the percentage of closed-cell structure for Kingflex insulation?
Both Kingflex ULT and Kingflex LT have a closed-cell area percentage of over 95%. This high closed-cell count ensures exceptional resistance against moisture and vapor infiltration.
What testing standards does the insulation material comply with?
The material is rigorously tested using international standards including ASTM C177 (thermal conductivity), ASTM D1622 (density range), ASTM D1623 (tensile strength), and ASTM D2856 (closed-cell content).
