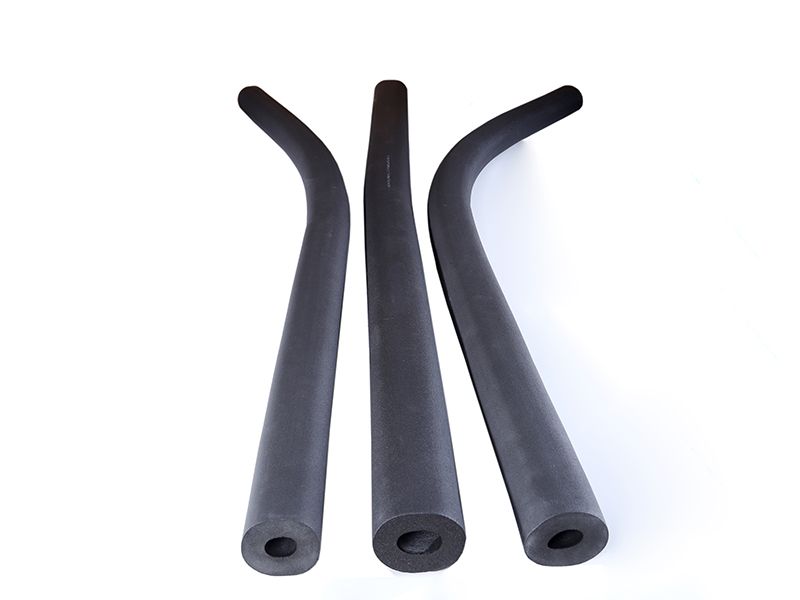

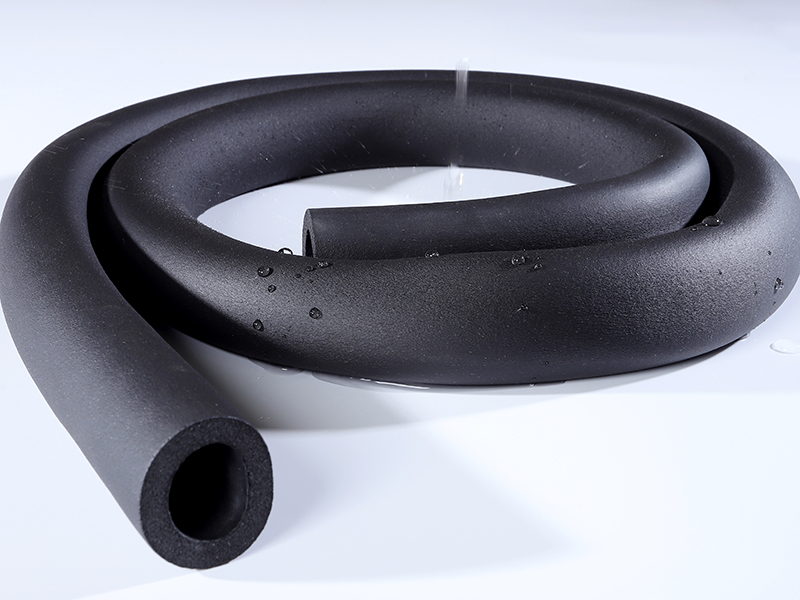

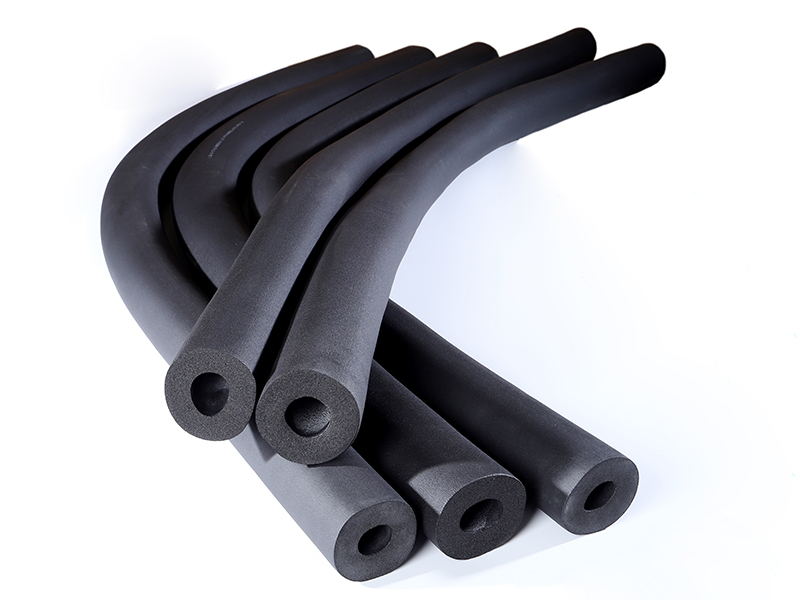

• Kingflex LT Insulation Tube with black color is Synthetic Diene Terpolymer based rubber foam with Standard Length with 6.2ft(2m). • Kingflex LT Insulation Tube is with A high-performance thermal insulation material designed to meet the demands of cryogenic-temperature environments. And it is part of the Kingflex Cryogenic multi-layer configuration, providing low temperature flexibility to the system.
Send Inquiry

Product Description

Efficient Insulation Technology

The expanded closed-cell structure of Kingflex LT Insulation Tube makes it an efficient insulation. It is manufactured without the use of CFC’s, HFC’s or HCFC’s. It is also formaldehyde free, low VOCs, fiber free, dust free and resists mold and mildew. Kingflex LT Insulation Tube can be made with special antimicrobial product protection for added defense against mold on the insulation.

CFC, HFC & HCFC Free
Low VOCs & Formaldehyde Free
Fiber & Dust Free
Mold & Mildew Resistant

Standard Sizes Specifications

LT Tube Standard Size
Steel Pipes 25mm Insulation Thickness
Nominal Pipe Nominal Outside (mm) Pipe Max Outside (mm) Inner Min/Max (mm) Code m/Carton
3/4 10 17.2 18 19.5-21 KF-ULT 25X018 40
1/2 15 21.3 22 23.5-25 KF-ULT 25X022 40
3/4 20 26.9 28 9.5-31.5 KF-ULT 25X028 36
1 25 33.7 35 36.5-38.5 KF-ULT 25X035 30
1 1/4 32 42.4 42.4 44-46 KF-ULT 25X042 24
1 1/2 40 48.3 48.3 50-52 KF-ULT 25X048 20
2 50 60.3 60.3 62-64 KF-ULT 25X060 18
2 1/2 65 76.1 76.1 78-80 KF-ULT 25X076 12
3 80 88.9 89 91-94 KF-ULT 25X089 12
Recommended Applications

Kingflex LT Insulation Tube is designed for pipes, tanks, and vessels (including elbows, flanges, etc.) in petrochemical, industrial gas, and agricultural chemical production plants.

It is specially designed for use in import/export pipelines and process areas of LNG facilities, operating reliably in conditions down to -180˚C.

Application Restrictions

Not recommended for application on process pipelines and equipment carrying liquid oxygen.

Do not use on gaseous oxygen lines and equipment running above 1.5MPa (218 psi) pressure or operating at temperatures above +60˚C (+140˚F).

Frequently Asked Questions

What makes Kingflex LT Insulation Tube an efficient insulation?

Kingflex LT Insulation Tube utilizes an expanded closed-cell structure, which provides highly efficient thermal insulation properties for various piping and vessel applications.

Does this insulation contain harmful environmental substances?

No. It is manufactured completely without the use of CFCs, HFCs, or HCFCs. Additionally, it is formaldehyde-free, low VOCs, fiber-free, and dust-free.

How does the product resist mold and mildew?

The insulation naturally resists mold and mildew growth. It can also be custom-manufactured with special antimicrobial product protection for enhanced defense.

What is the minimum operating temperature for Kingflex LT?

Kingflex LT Insulation Tube is suitable for extreme cold environments, with operating capabilities reaching down to -180˚C, making it ideal for LNG installations.

Are there any system compatibility restrictions?

Yes. It is not recommended for pipelines or equipment carrying liquid oxygen. It should also not be applied to gaseous oxygen systems running above 1.5MPa (218 psi) pressure or operating temperatures above +60˚C (+140˚F).
