Kingflex Cryogenic products are designed to meet the demands of low-temperature environments. And it is can reduce the risk of corrosion under insulation, and mimimise the time needed for installation. It is suitable for temperatures to -183 °C.
It is designed to meet the demands of low-temperature environments and is suitable for use in the oil and gas industry. This insulation solution provides exceptional thermal performance, reduces the risk of corrosion under insulation (CUI) and minimises the time needed for installation.

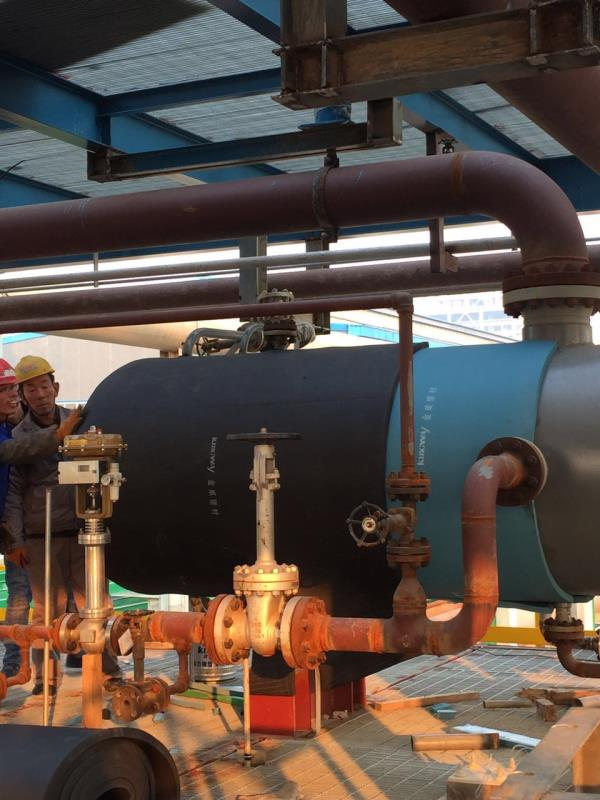

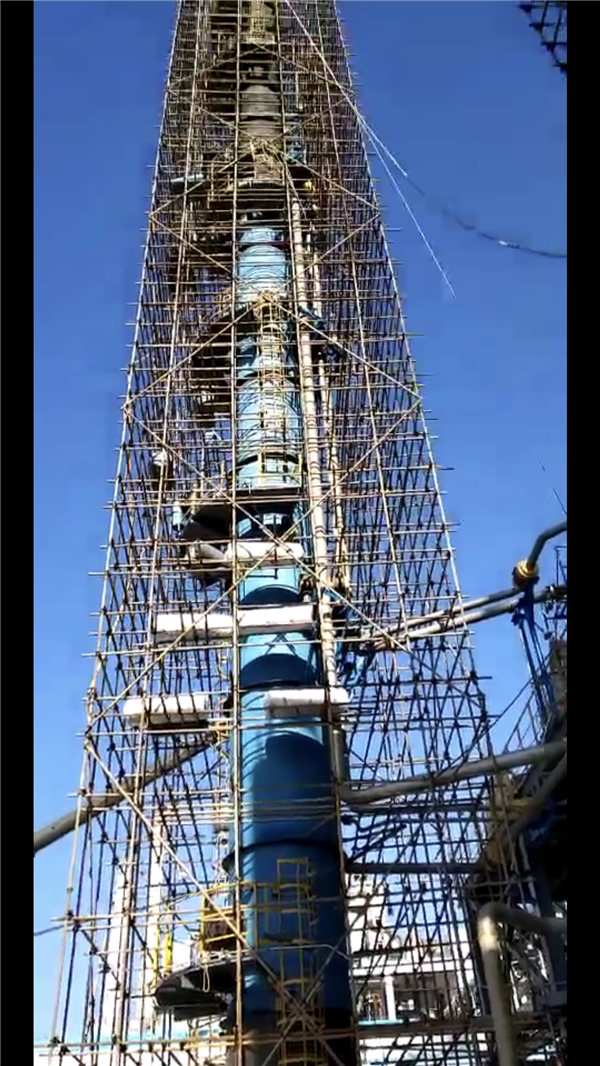

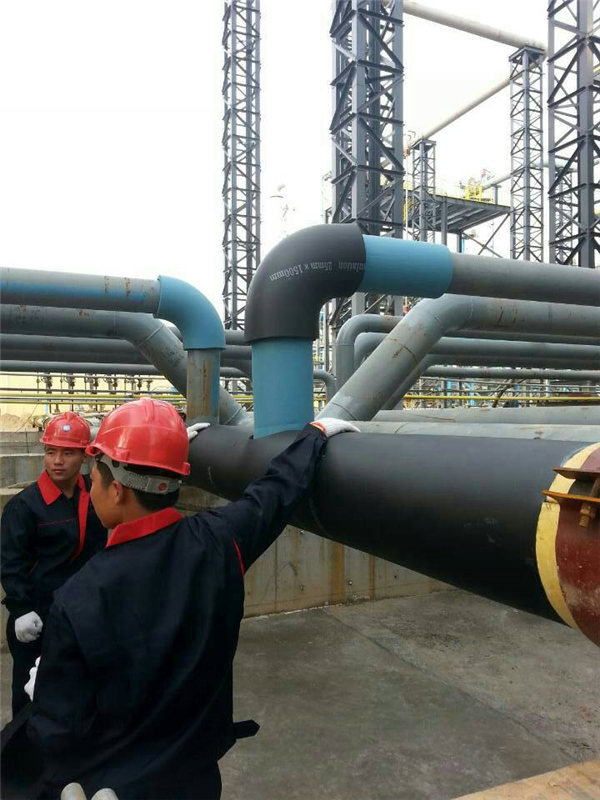

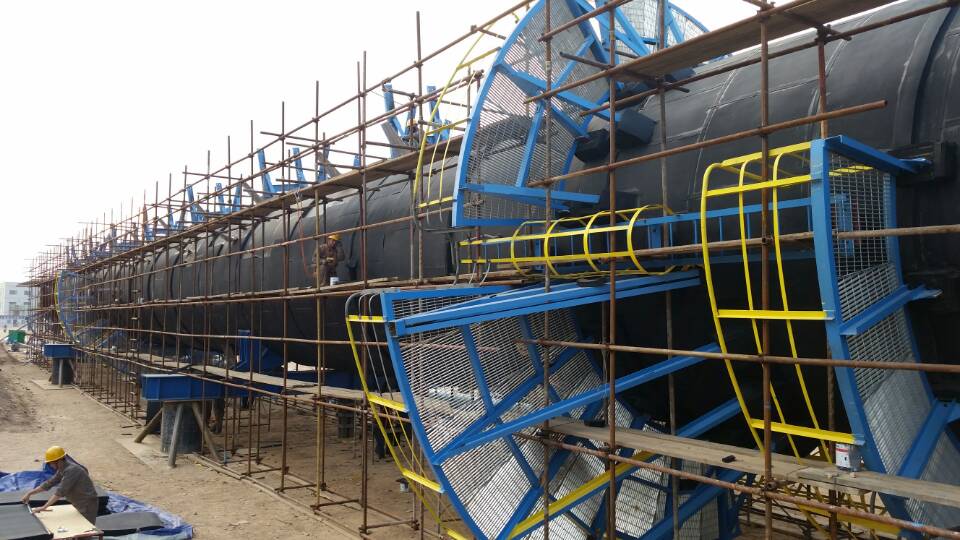

King flex flexible ultra-low temperature insulation system belongs to the multi-layer composite structure, is the most economical and reliable cooling system. The system can be directly installed under the temperature as low as -110°C on all piping equipment when the surface temperature of the pipe is lower than -100 °C and the pipeline usually has obvious repeated movement or vibration.
Standard Size Specification

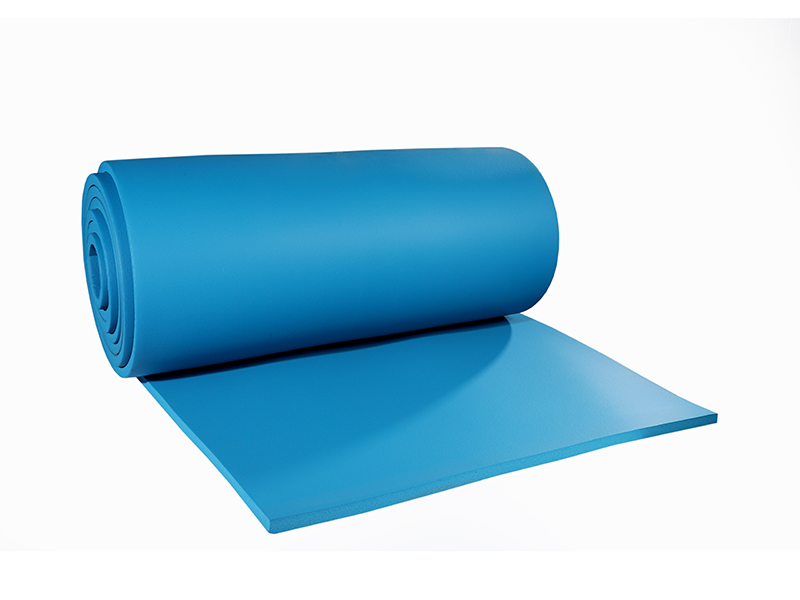

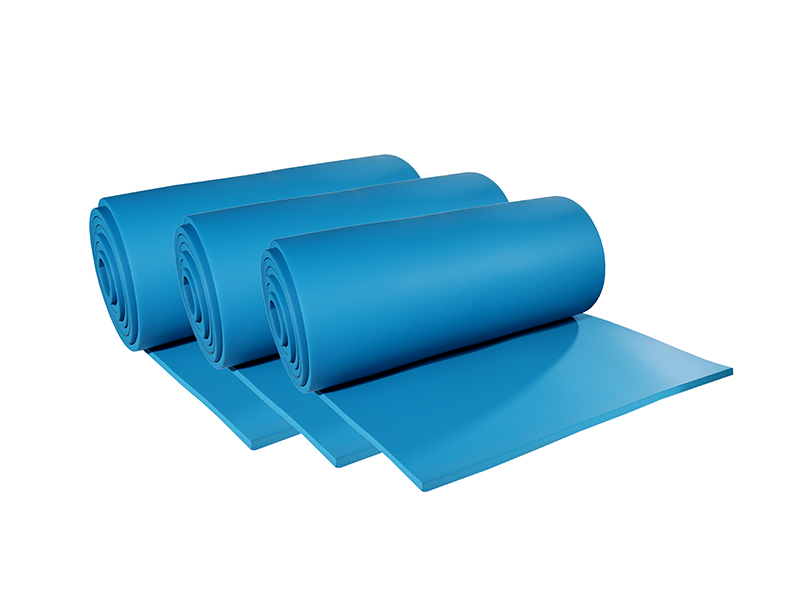

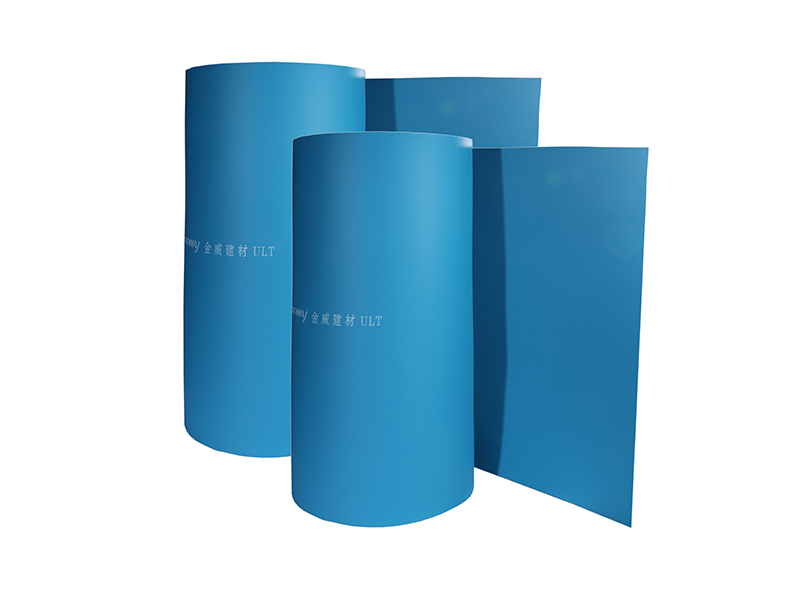

ULT Sheet standard size
Code
Thickness (mm)
Length (m)
M² / Bag
KF-ULT-25
25
8
8
Key Features & Benefits
Low thermal conductivity
Suitable for applications from -200 °C to +110 °C
Low density and weight
Cost effective solution
Fewer seams for faster, secure installation
Easily applied to awkward and difficult shapes
Easily handled and transported
Free of fibre and dust
Suitable for the oil and gas industry
Minimised risk of corrosion under insulation

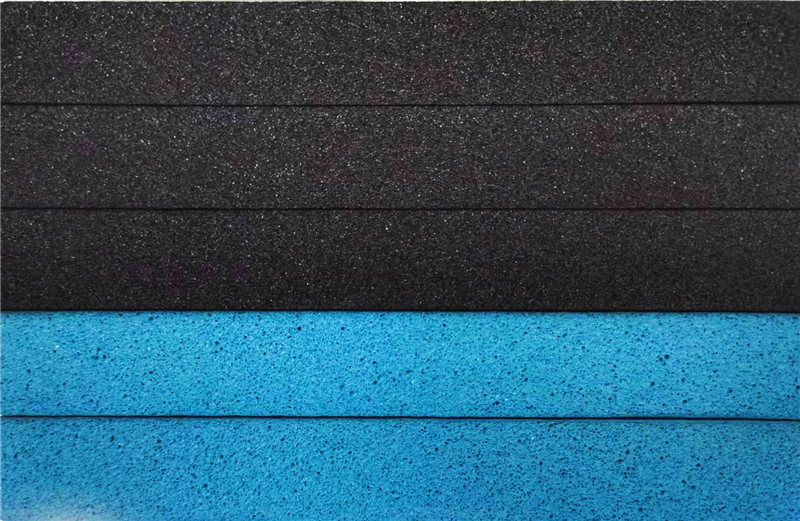

Multi‐layered system provides exceptional thermal performance
Ease of installation with reduced use of hazardous components
Performance Specifications
Performance
Base Material
Standard
Kingflex ULT
Kingflex LT
Thermal Conductivity
(-100℃, 0.028 / -165℃, 0.021)
(0℃, 0.033 / -50℃, 0.028)
ASTM C177 / EN 12667
Density
60-80 kg/m³
40-60 kg/m³
ASTM D 1622
Recommend Operating Temperature
(-200℃ to +125℃)
(-50℃ to +105℃)
NA
Percentage of Close Area
> 95%
> 95%
ASTM D 2856
Moisture Permeance Factor
NA
< 1.96 × 10⁻¹¹ g/(m·s·Pa)
ASTM E96
Wet Resistance Factor µ
NA
> 10000
EN 12086 / EN 13469
Water Vapor Permeability Coefficient
NA
0.0039g/h.m² (25mm thickness)
ASTM E96
PH
≥ 8.0
≥ 8.0
ASTM C871
Tensile Strength MPa
-100℃, 0.30 / -165℃, 0.25
0℃, 0.15 / -40℃, 0.218
ASTM D 1623
Compressive Strength MPa
(-100℃, ≤ 0.37)
(-40℃, ≤ 0.16)
ASTM D 1621
Frequently Asked Questions (FAQ)
Q1: What temperature range is the Kingflex ULT insulation system suitable for?
A1: The Kingflex ULT insulation system is recommended for operating temperatures ranging from -200 °C up to +125 °C, making it highly effective for extreme cryogenic applications.
Q2: How does the system handle structural movement and vibration?
A2: The system can be directly installed on piping equipment even under temperatures as low as -110°C when the surface temperature is below -100 °C, especially in setups where pipelines undergo repeated movement or vibration.
Q3: What are the key structure features of Kingflex ULT?
A3: It features a multi-layer composite closed-cell structure with a high closed-area percentage of over 95%. This configuration provides excellent thermal resistance and minimizes moisture penetration.
Q4: Does the insulation system help prevent corrosion under insulation (CUI)?
A4: Yes, the multi-layered design and low moisture permeance significantly minimize the risk of moisture ingress, which is the primary cause of corrosion under insulation (CUI).
Q5: Is the insulation installation complex?
A5: No, the system is designed for ease of installation. It requires fewer seams to provide a faster and more secure installation, adapts easily to awkward shapes, and reduces the use of hazardous components.
Q6: What standards does Kingflex ULT comply with for thermal conductivity?
A6: The thermal conductivity performance of Kingflex ULT is tested and measured in accordance with recognized international standards, including ASTM C177 and EN 12667.
