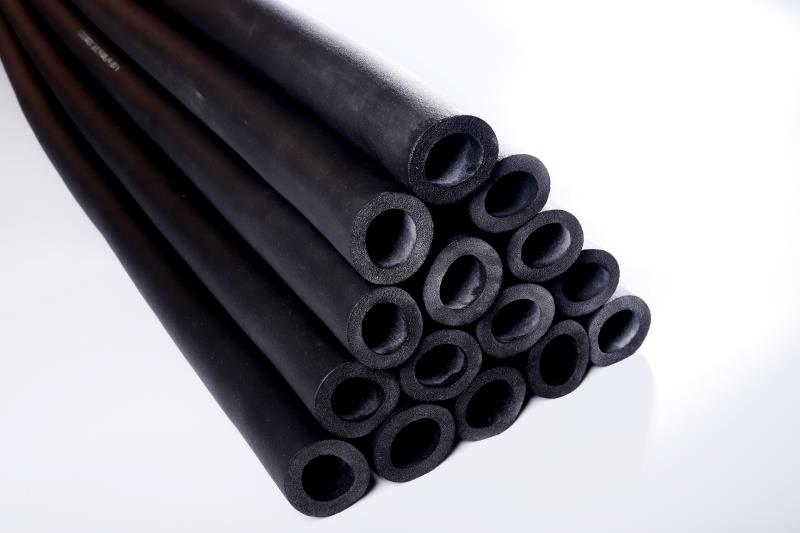

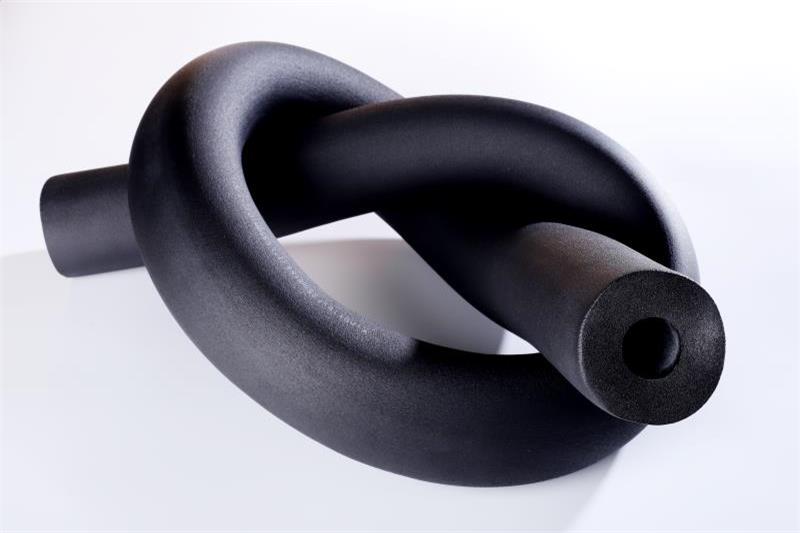

Specialized in insulation rubber foam products, featuring a closed-cell construction and outstanding properties such as low thermal conductivity, high elasticity, hot and cold resistance, fire retardancy, waterproofing, and shock/sound absorption.
These rubber insulation materials are widely used in large central air conditioning systems, chemical and electrical industries for hot and cold media pipelines, and various fitness equipment jackets/pads to achieve lower thermal loss.
-
Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″, 1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25, 32, 40 and 50mm)
-
Standard Length with 6ft (1.83m) or 6.2ft (2m).
Frequently Asked Questions
What are the main performance advantages of the insulation rubber foam?
The insulation rubber foam features a closed-cell construction that provides outstanding properties including low thermal conductivity, high elasticity, hot and cold resistance, fire retardancy, waterproofing, and excellent shock and sound absorption.
Where are these rubber insulation materials typically used?
They are widely applied in large central air conditioning systems, chemical and electrical industries for hot/cold media pipelines, as well as protective jackets or pads for fitness equipment to minimize energy and cold loss.
What wall thicknesses and lengths are available?
The nominal wall thicknesses range from 1/4” up to 2” (6mm to 50mm), and they come in standard lengths of either 6ft (1.83m) or 6.2ft (2m).
What is the fire performance rating of this insulation material?
According to test standards, the material achieves Class 0 & Class 1 fire ratings (BS 476 Part 6 & 7), has a Flame Spread and Smoke Developed Index of 25/50 (ASTM E 84), and features an Oxygen Index of ≥36.
How is the insulation material packaged for transport?

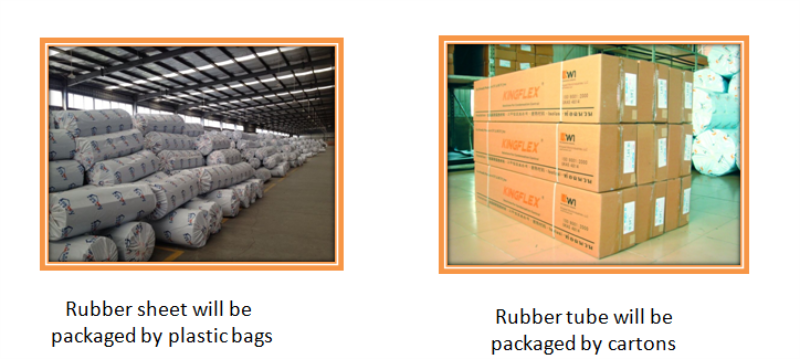

For secure transit, the rubber foam insulation tubes are packed in standard export cartons, while the sheet rolls are packed in standard export plastic bags.
