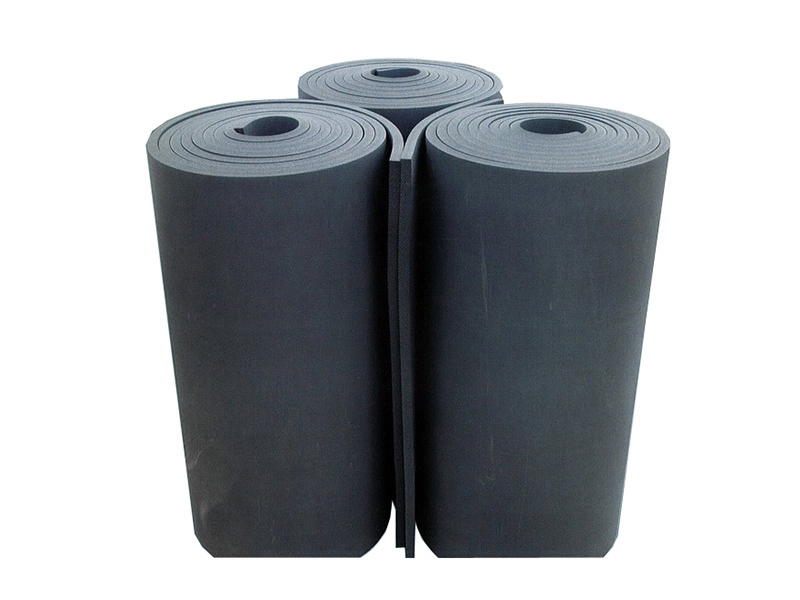

Kingflex Insulation sheet roll 13mm thickness is a flexible, closed-cell elastomeric sheet insulation product used to conserve energy and prevent condensation on large pipes, ducts (covers), vessels, tanks and equipment.
The Closed cell structure of Kingflex Insulation sheet roll 13mm thickness creates exceptional thermal properties (k-value of 0.245 at 75°F and wvt of 0.03 perm-in) that protect against moisture penetration and heat loss or gain within a -297°F to +220°F temperature range.
Kingflex Insulation Sheet Roll 13mm thickness is available with 1m, 1.2m and 1.5m width and thickness from 6mm to 30mm.
Kingflex Insulation Sheet Roll 13mm thickness is non-porous, non-fibrous and resists mold, fungal and bacterial growth. An easy-to-clean and uniquely tough protective skin on both sides provides a better surface to resist moisture and dirt. The double-sided skin can be used with either side facing away from the applied surface, resulting in less waste if one side becomes damaged.
Suitable apparent density and stable closed cell structure create the lowest and the most stable thermal conductivity.
Perfect closed cell structure brings low water absorption and high moisture resistance factor ų. ų value fully promote up to 10000 in the industry-leading.
Passed test of BS 476 part 6 part 7 (Class 0). It has achieved the highest fire certification of BS standard. It can better control balance of the oxygen index and smoke density with foaming chemical reaction fully.
Kingflex product has high tear strength. It can prevent surface damage. Meanwhile, compare with the high density material, Kingflex is more flexible, and easier to install. The joint is not easy to rebound and gap.
Formulated and structured to meet energy conservation requirements and protect systems efficiently with minimized material waste.

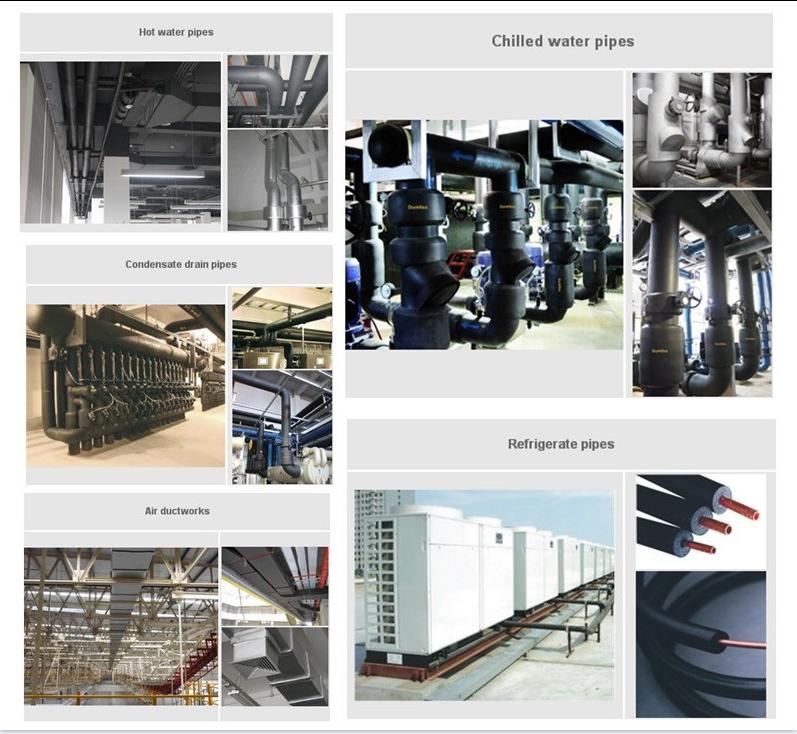

What are the primary applications of Kingflex Insulation sheet roll 13mm thickness?
It is a flexible, closed-cell elastomeric sheet insulation product used to conserve energy and prevent condensation on large pipes, ducts (covers), vessels, tanks, and equipment.
What is the operating temperature range for this insulation sheet roll?
It operates effectively within a temperature range of -297°F to +220°F, protecting against moisture penetration and heat loss or gain.
What dimensions and thicknesses are available?
It is available in widths of 1m, 1.2m, and 1.5m, with thicknesses ranging from 6mm to 30mm.
How does the double-sided protective skin prevent material waste?
The tough protective skin on both sides resists moisture and dirt, and it can be installed with either side facing away from the applied surface. This reduces waste if one side becomes damaged.
What fire safety standards does the Kingflex product meet?
It has passed the BS 476 part 6 and part 7 (Class 0) tests, achieving the highest fire certification of the BS standard. It effectively controls the balance of the oxygen index and smoke density.

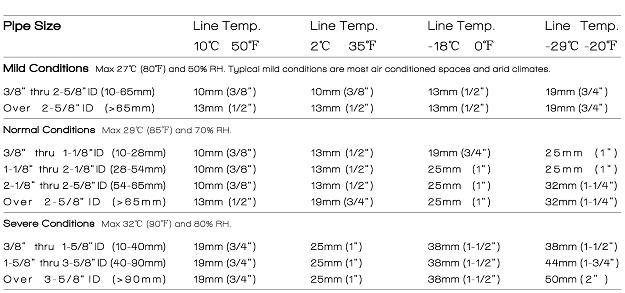

How to calculate the thickness according to the temperature?
Thickness requirements are calculated based on the specific operating temperature (within the -297°F to +220°F range) and ambient environmental conditions to successfully prevent condensation and control thermal transfer.
