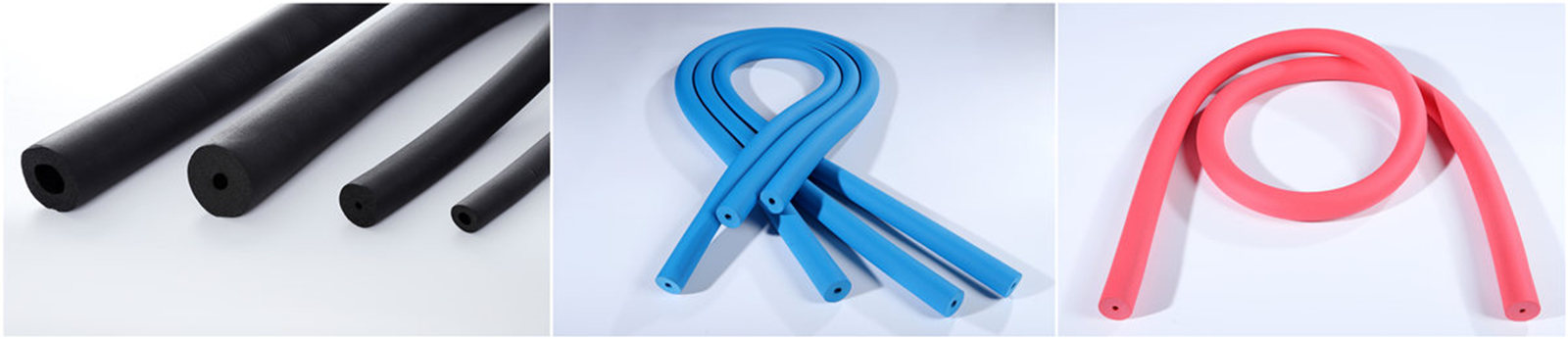

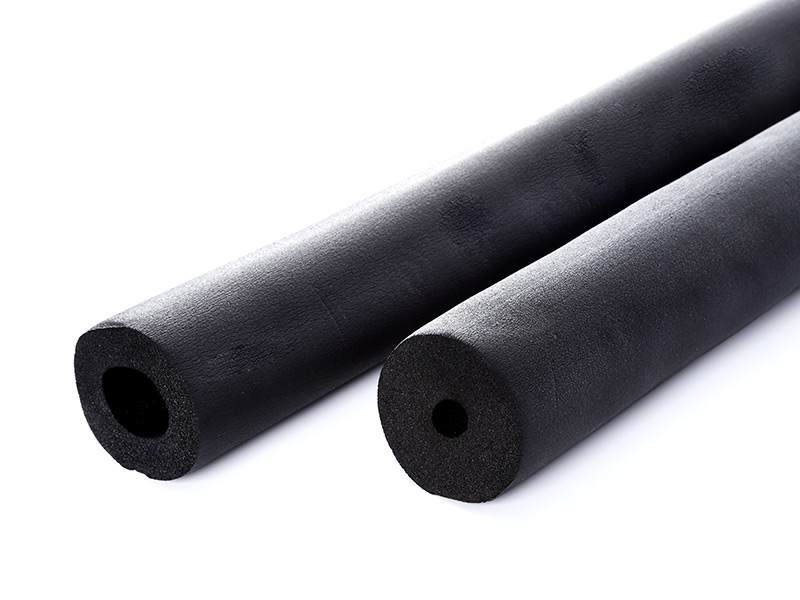

The expanded closed-cell structure of Rubber Foam Insulation Tube makes it an efficient insulation. It is manufactured without the use of CFC’s, HFC’s or HCFC’s. It is also formaldehyde free, low VOCs, fiber free, dust free and resists mold and mildew. Rubber Foam Insulation Tube can be made with special antimicrobial product protection for added defense against mold on the insulation.
CFC & HFC Free
Formaldehyde Free
Low VOCs & Dust Free
Mold & Mildew Resistant
Specifications & Size Recommendations
NO.
Copper Tube
Steel Pipe
Internal Φ mm
9mm · 3/8" FF
13mm · 1/2" HH
19mm · 3/4" MM
25mm · 1" RR
Nom. ID Inches
Nom. ID Inches
I.P.S. Inches
Φ External mm
Φ Nominal mm
Ref. Wall*ID
Lengths (2m) per cart
Ref. Wall*ID
Lengths (2m) per cart
Ref. Wall*ID
Lengths (2m) per cart
Ref. Wall*ID
Lengths (2m) per cart
1
1/4
6.4
-
-
-
7.1 - 8.5
9*06
170
13*6
90
19*6
50
25*6
35
2
3/8
9.5
1/8
10.2
6
11.1 - 12.5
9*09
135
13*10
80
19*10
40
25*10
25
3
1/2
12.7
-
12.5
-
13.1 - 14.5
9*13
115
13*13
65
19*13
40
25*13
25
4
5/8
15.9
1/4
13.5
8
16.1 - 17.5
9*16
90
13*16
60
19*16
35
25*16
20
5
3/4
19.1
-
-
-
19.0 - 20.5
9*19
76
13*19
45
19*19
30
25*20
20
6
7/8
22.0
1/2
21.3
15
23.0 - 24.5
9*22
70
13*22
40
19*22
30
25*22
20
7
1
25.4
-
25.0
-
26.0 - 27.5
9*25
55
13*25
40
19*25
25
25*25
20
8
1 1/8
28.6
3/4
26.9
20
29.0 - 30.5
9*28
50
13*28
36
19*28
24
25*28
18
9
-
32.0
-
-
-
32.5 - 35.0
9*32
40
13*32
30
19*32
20
25*32
15
10
1 3/8
34.9
1
33.7
25
36.0 - 38.0
9*35
36
13*35
30
19*35
20
25*35
15
11
1 1/2
38.0
-
38.0
-
39.0 - 41.0
9*38
36
13*38
24
19*38
17
25*38
12
12
1 5/8
41.3
1 1/2
42.4
32
43.5 - 45.5
9*42
30
13*42
25
19*42
17
25*42
12
13
-
44.5
-
44.5
-
45.5 - 47.5
9*45
25
13*45
20
19*45
16
25*45
12
14
1 7/8
48.0
1 1/2
48.3
40
49.5 - 51.5
9*48
25
13*48
20
19*48
15
25*48
12
15
2 1/8
54.0
-
54.0
-
55.0 - 57.0
9*54
25
13*54
20
19*54
15
25*54
10
16
2
57.1
-
57.0
-
58.0 - 60.0
-
-
13*57
18
19*57
12
25*57
9
17
2 3/8
60.3
2
60.3
50
61.5 - 63.5
-
-
13*60
18
19*60
12
25*60
9
18
2 5/8
67.0
-
-
-
67.5 - 70.5
-
-
13*67
15
19*67
10
25*67
8
19
3
76.2
2 1/2
76.1
65
77.0 - 79.5
-
-
13*76
12
19*76
10
25*76
6
20
3 1/8
80.0
-
-
-
-
-
-
13*80
12
19*80
10
25*80
6
21
3 1/2
88.9
3
88.9
80
90.5 - 93.5
-
-
13*89
10
19*89
8
25*89
6
22
4 1/4
108.0
-
108.0
-
108 - 111
-
-
13*108
6
19*108
6
25*108
5
Tolerance: Thickness
± 1.3mm
± 2.0mm
± 2.4mm
± 2.4mm
Technical Data Specifications
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m³
45-65Kg/m³
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 & Part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO 4589
Water Absorption, % by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23

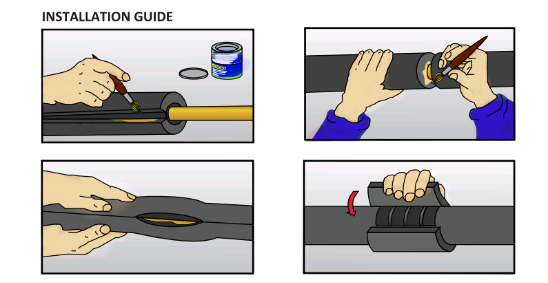

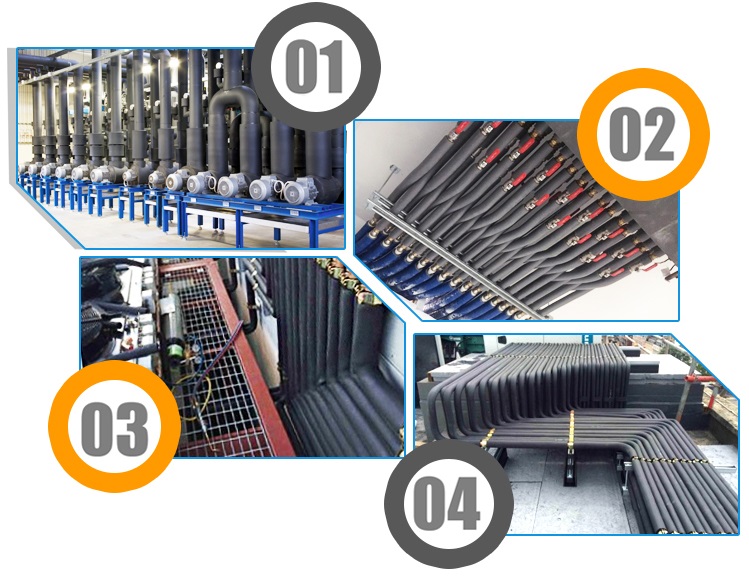

Rubber Foam Insulation Tube is used to retard heat gain and control condensation drip from chilled-water and refrigeration systems. It also efficiently reduces heat flow for hot-water plumbing and liquid-heating and dual-temperature piping. The recommended temperature usage range for Rubber Foam Insulation Tube is -297°F to +220°F (-183°C to +105°C). For use on cold pipes, Rubber Foam Insulation Tube thicknesses have been calculated to control condensation on the insulation outer surface, as shown in the table of thickness recommendations.
Frequently Asked Questions
What is the temperature range for this insulation tube?
The recommended operating temperature usage range for the Rubber Foam Insulation Tube is from -297°F to +220°F (-183°C to +105°C), making it suitable for a variety of refrigeration and dual-temperature systems.
How does the insulation prevent condensation?
It uses an expanded closed-cell structure to control condensation drip on chilled-water and refrigeration systems. The specific thicknesses are calculated to retard heat gain and keep the outer surface dry.
Does the product resist mold and mildew?
Yes, the insulation is naturally resistant to mold and mildew. It is fiber-free, dust-free, and can be manufactured with special antimicrobial product protection for extra defense on cold surfaces.
What is the fire rating and safety performance?
The insulation material has a Class 0 & Class 1 fire rating according to BS 476 Part 6 & Part 7, a Flame Spread and Smoke Developed Index of 25/50 (ASTM E 84), and an Oxygen Index of ≥36.
What applications are these insulation tubes used for?
They are widely used to control heat flow and condensation in chilled-water pipes, refrigeration lines, hot-water plumbing, liquid-heating systems, and dual-temperature piping configurations.
