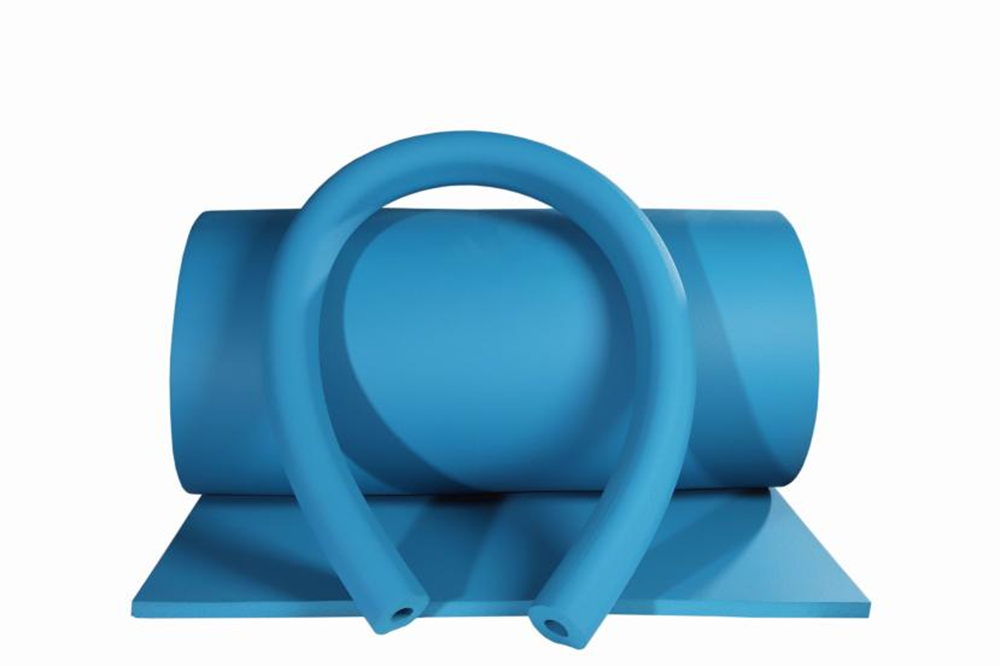

China Flexible Rubber Insulation For Cryogenic System Manufacturer, Factory
The ultra-low temperature protection system of diolefin and butadiene rubber is a high-performance elastic foaming developed by us specifically for the insulation project under ultra-low temperature conditions.Reducing temperature variation stress is one of the important features of the system over traditional rigid foam insulation materials such as foam glass, polyurethane PIR and PUR.
Insulation that maintains its flexibility at very low temperatures down to -200℃ to +125℃
Reduces the risk of crack development and propagation
Reduces the risk of corrosion under insulation
Protects against mechanical impact and shock
Low thermal conductivity
Cryogenic Rubber Foam is a reliable and effective solution for insulation in extreme cold environments. Its versatility, durability, and insulation properties make it a top choice for a wide range of industrial and commercial applications.
Dimensions & Roll Sizes
Inches
mm
Size (L * W)
㎡ / Roll
3/4"
20
10 × 1
10
1"
25
8 × 1
8
Physical & Thermal Properties
Property
Base Material Grade
Test Method / Standard
ULT Grade
LT Grade
Thermal Conductivity
-100°C, 0.028 -165°C, 0.021
0°C, 0.033 -50°C, 0.028
ASTM C177
Density Range
60-80 Kg/m³
40-60 Kg/m³
ASTM D1622
Recommend Operation Temp
-200°C to 125°C
-50°C to 105°C
-
Percentage Of Close Areas
>95%
>95%
ASTM D2856
Moisture Performance Factor
NA
<1.96x10⁻⁹ g(m·s·Pa)
ASTM E 96
Wet Resistance Factor μ
NA
>10000
EN12086 EN13469
Water Vapor Permeability
NA
0.0039 g/h.m² (25mm thickness)
ASTM E 96
PH Value
≥8.0
≥8.0
ASTM C871
Tensile Strength (MPa)
-100°C, 0.30 -165°C, 0.25
0°C, 0.15 -50°C, 0.218
ASTM D1623
Compressive Strength (MPa)
-100°C, ≤0.3
-40°C, ≤0.16
ASTM D1621
Growth in the construction industry and many other industrial segments, combined with concerns over rising energy costs and noise pollution, is fueling market demand for thermal insulation. With more than four decades of dedicated experience in manufacturing and applications, our insulation products are optimized to ride on top of this wave.
Frequently Asked Questions (FAQs)
What is the recommended operating temperature range for Cryogenic Rubber Foam?
Depending on the grade, the ULT Grade is recommended for extreme environments operating from -200°C up to 125°C, while the LT Grade is optimized for temperature ranges between -50°C and 105°C.
How does Cryogenic Rubber Foam prevent corrosion under insulation (CUI)?
With a high percentage of closed cell areas (>95%) and superior wet resistance, the material prevents moisture intrusion and condensation on the cold surfaces, drastically minimizing the risk of corrosion under insulation.
Does this insulation maintain flexibility in extreme cold?
Yes. Unlike rigid insulation materials, Cryogenic Rubber Foam is designed to retain its elasticity and flexibility at temperatures as low as -200°C. This greatly reduces the risk of crack formation and stress-induced propagation.
What are the standard densities for the ULT and LT grades?
The ULT Grade features a density range of 60-80 Kg/m³, designed for heavy-duty ultra-low applications. The LT Grade has a density range of 40-60 Kg/m³ to cover standard low-temperature requirements.
How does Cryogenic Rubber Foam react to mechanical impact?
Its elastomeric closed-cell structure operates as a cushion that absorbs mechanical impacts and shocks, protecting both the pipework and the insulation barrier from physical damage during operations.
What testing standards are used to measure the material properties?
The insulation properties are tested in compliance with globally recognized testing methods, including ASTM C177 for thermal conductivity, ASTM D1622 for density, and ASTM D1623 for tensile strength.
