- Improve the energy efficiency of the building
- Reduce transmission of exterior sound to the interior of the building
- Absorb reverberating sounds within the building
- Provide thermal efficiency
- Keep the building warmer in winter and cooler in summer

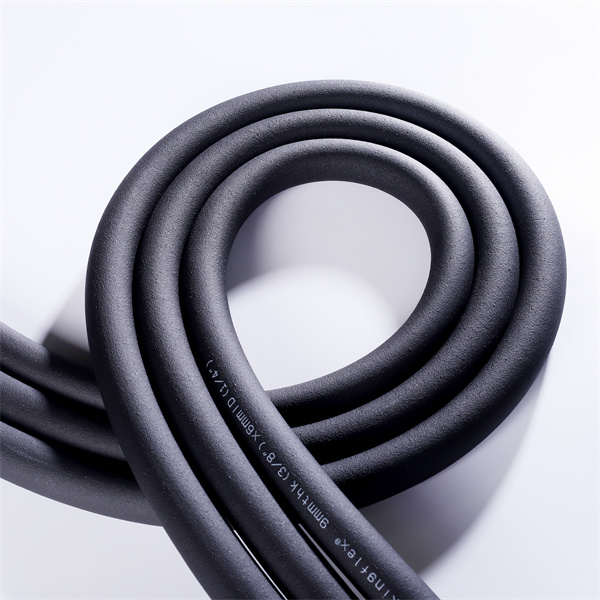

The closed cell construction has many great features such as soft resistance refractive index, cold resistance, fire-retardant, waterproof, low thermal conductivity, shock and sound absorption and so on. It can be widely used in large-scale central and home air conditioning, construction, chemicals, textile and electrical industries.
Technical Data Sheet
| Technical Data |
| Property |
Unit |
Value |
Test Method |
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m³ |
45-65Kg/m³ |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10⁻¹³ |
DIN 52 615 / BS 4370 Part 2 1973 |
| μ |
- |
≥10000 |
- |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |

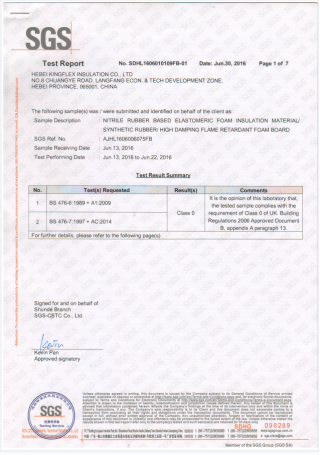

| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406, ISO4589 |
| Water Absorption, %by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
Good |
ASTM G23 |

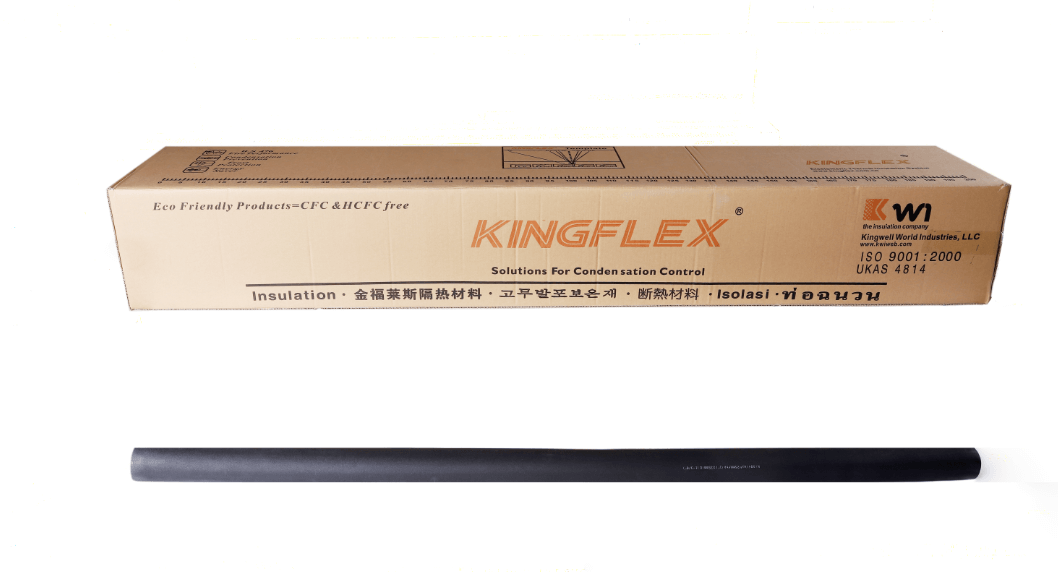

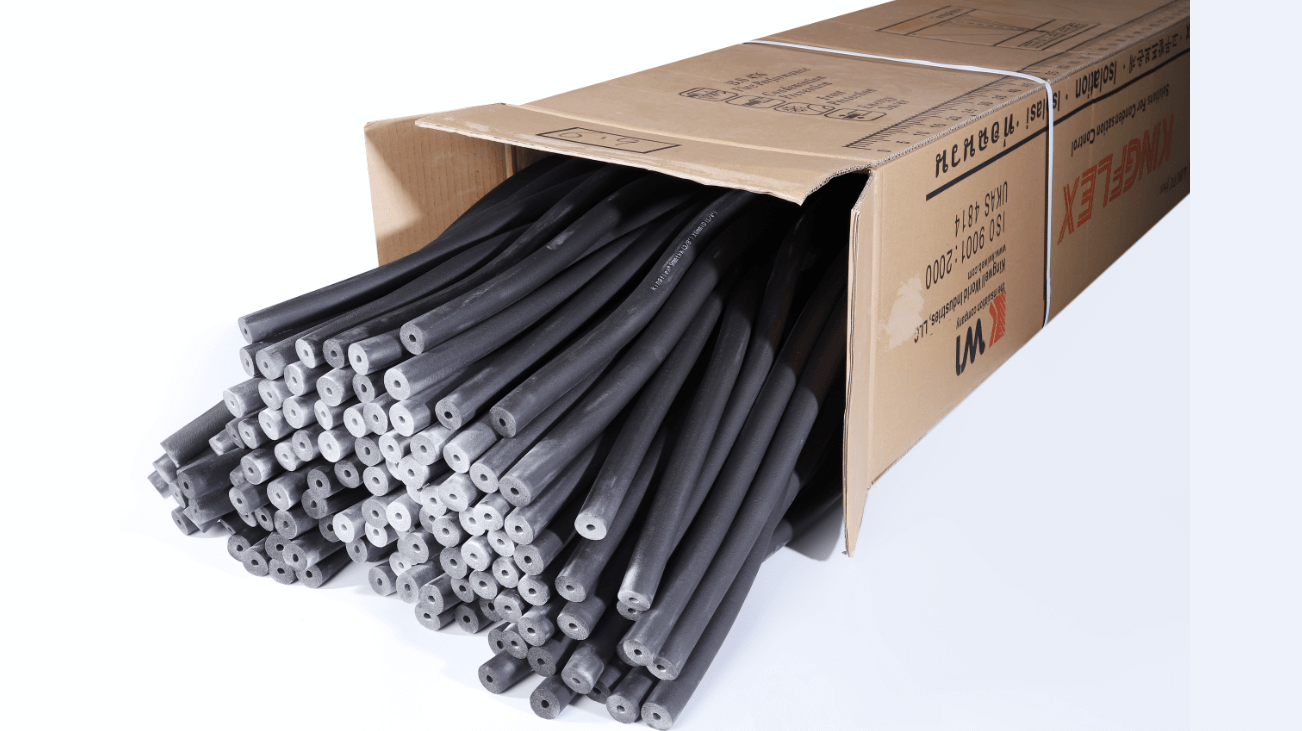

Insulation tube packed in export standard carton. OEM can be supplied.
Frequently Asked Questions
What are the main performance benefits of this insulation?
It improves building energy efficiency, reduces exterior noise, absorbs reverberating sounds inside the building, and offers high thermal efficiency to keep buildings warmer in winter and cooler in summer.
Where is this insulation material typically applied?
It is widely used in large-scale central and domestic air conditioning systems, building construction, chemical processing, textile manufacturing, and various electrical industries.
What is the thermal conductivity of this insulation material?
The material features low thermal conductivity: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, as tested by ASTM C 518 standards.
What are the fire safety ratings for this product?
It achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 and Part 7 tests, and features an Oxygen Index of ≥36.
Does this insulation offer resistance to mold and environmental factors?
Yes, it demonstrates good resistance against fungi, ozone, U.V. radiation, and general weathering, complying with ASTM and GB test methods.
How is the insulation packaged, and are customized options available?
The insulation tubes are packed in standard export cartons, and OEM customization services can be provided upon request.
