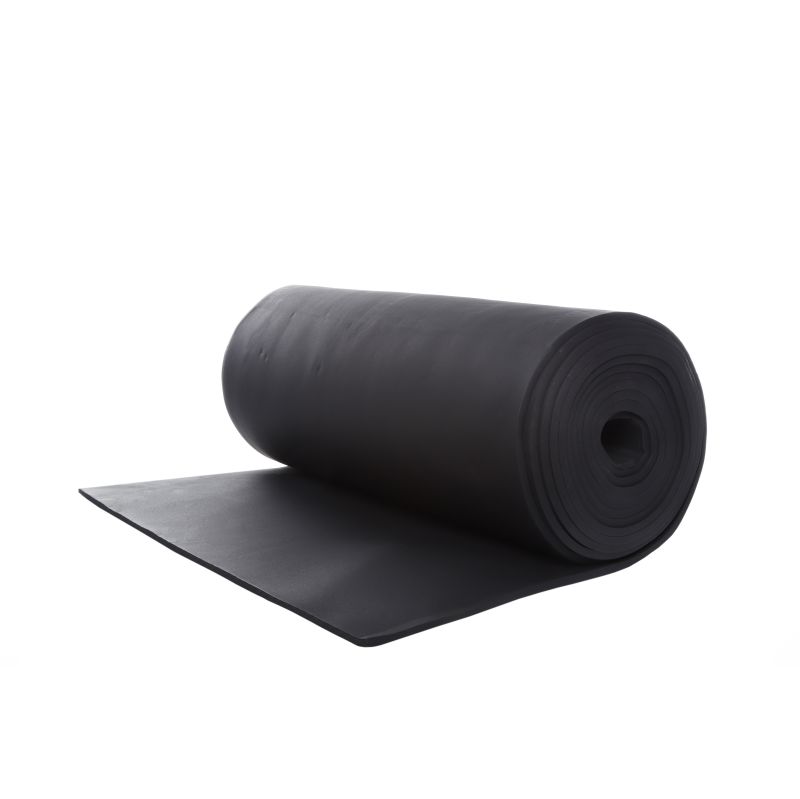

Foam rubber Insulation Sheet Roll is NBR/PVC-based closed cell, flexible elastomeric foam insulation. Foam rubber Insulation Sheet Roll is environmentally-friendly as it is free of CFCs, HFCs, HCFCs, PBDEs, formaldehyde and fibers.
Dimension Specifications
| Thickness |
Width 1m |
Width 1.2m |
Width 1.5m |
| Inches |
mm |
Size(L*W) |
㎡/Roll |
Size(L*W) |
㎡/Roll |
Size(L*W) |
㎡/Roll |
| 1/4" |
6 |
30 × 1 |
30 |
30 × 1.2 |
36 |
30 × 1.5 |
45 |
| 3/8" |
10 |
20 × 1 |
20 |
20 × 1.2 |
24 |
20 × 1.5 |
30 |
| 1/2" |
13 |
15 × 1 |
15 |
15 × 1.2 |
18 |
15 × 1.5 |
22.5 |
| 3/4" |
19 |
10 × 1 |
10 |
10 × 1.2 |
12 |
10 × 1.5 |
15 |
| 1" |
25 |
8 × 1 |
8 |
8 × 1.2 |
9.6 |
8 × 1.5 |
12 |
| 1 1/4" |
32 |
6 × 1 |
6 |
6 × 1.2 |
7.2 |
6 × 1.5 |
9 |
| 1 1/2" |
40 |
5 × 1 |
5 |
5 × 1.2 |
6 |
5 × 1.5 |
7.5 |
| 2" |
50 |
4 × 1 |
4 |
4 × 1.2 |
4.8 |
4 × 1.5 |
6 |
Technical Data
| Property |
Unit |
Value |
Test Method |
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m3 |
45-65Kg/m3 |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10 ﹣¹³ |
DIN 52 615 / BS 4370 Part 2 1973 |
| μ |
- |
≥10000 |
- |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |

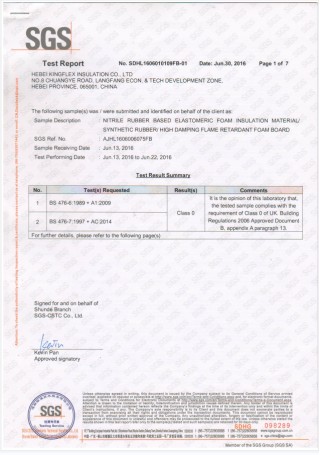

| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406, ISO4589 |
| Water Absorption, % by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
- |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
- |
Good |
ASTM G23 |
Key Features & Benefits
✓
Packed in PE bags; OEM packing is available.
✓
They are cost-effective, easy to install, and highly flexible.
✓
Elastomeric, flexible, and soft texture.
✓
Low thermal conductivity with independent closed foam structure for excellent heat insulation performance.
✓
Fire-resistant material properties to enhance safety.
✓
The rubber foam pipe lagging is resistant to water vapour.
✓
Offers excellent adhesion to adhesives and coatings.
✓
Easy to cut, carry, and install. Installing nitrile rubber lagging on pipes is a simple DIY task.
✓
Significantly reduces energy costs.
Frequently Asked Questions
What materials are used to make this insulation sheet roll?
The insulation sheet roll is made from NBR/PVC-based closed cell, flexible elastomeric foam insulation. It is free of CFCs, HFCs, HCFCs, PBDEs, formaldehyde, and fibers.
What is the temperature range of the insulation material?
The insulation operates efficiently within a temperature range of -50°C to 110°C, verified by test method GB/T 17794-1999.
How does this insulation sheet roll perform in fire resistance?
It is built with fire-resistant material, achieving Class 0 & Class 1 fire ratings under BS 476 Part 6 & Part 7, and has a flame spread/smoke developed index of 25/50 under ASTM E 84.
How does the closed cell structure benefit the insulation performance?
The independent closed foam structure provides low thermal conductivity, high resistance to water vapour, and excellent overall heat insulation performance.
Is the installation of this foam rubber lagging easy?
Yes, it is highly flexible, easy to cut, carry, and install. Adhering nitrile rubber lagging to pipes is a straightforward DIY task that offers excellent adhesion to coatings and adhesives.
What packaging options are available?
The products are standardly packed in PE bags, and custom OEM packaging can also be manufactured according to specific demands.
