China Kingflex insulation tube adopts high-performance Factories, Quotes

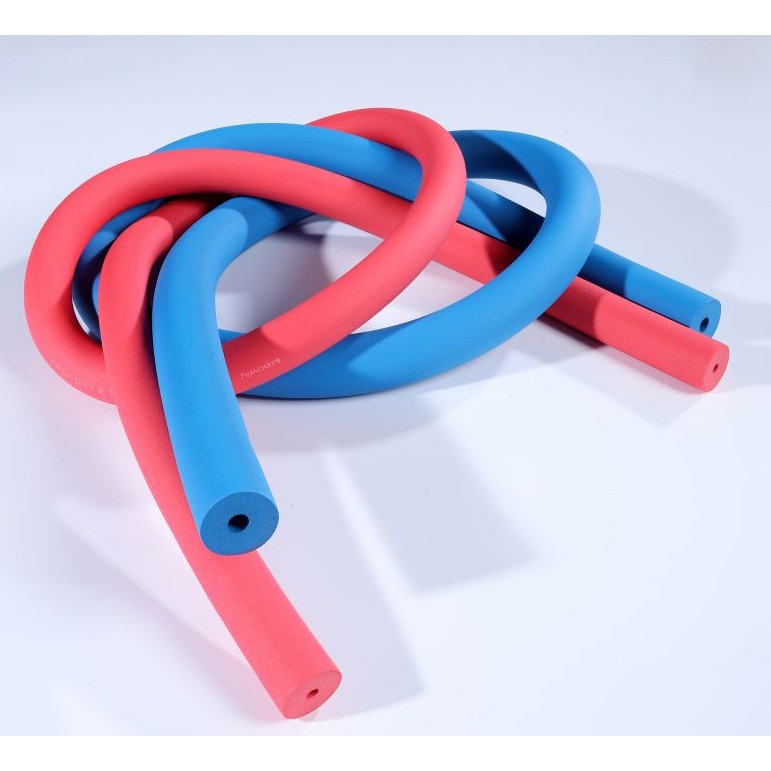

Kingflex insulation tube adopts high-performance NBR/PVC as the main raw material with various quality supplementary material by special frothing process to produce the soft energy conversation foam insulation.The insulation tubes are manufactured in various diameters and thickness for efficient and precise insulation application. Available colors: Black, Blue, Red. It is widely used for the thermal insulation of various water and steam pipelines in the central air-conditioning freezer, building, ship, vehicle and other industries. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

Elastomeric Insulation Tube

Our elastomeric insulation tube features a robust closed-cell construction, delivering exceptional performance properties including cold resistance, fire retardancy, waterproofing, low thermal conductivity, and superb shock and sound absorption. It is engineered for versatile deployment across large-scale central and domestic air conditioning systems, general building construction, chemical processing, textiles, and electrical manufacturing industries.

Technical Specification Data
Property Unit Value Test Method
Temperature range °C -50 to 110 GB/T 17794-1999
Density range Kg/m³ 45-65 ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10⁻¹³ DIN 52 615 / BS 4370 Part 2 1973
μ (Mu-value) - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 & Part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM G21
Ozone resistance - Good GB/T 7762-1987
Resistance to U.V. and weather - Good ASTM G23
Key Material Advantages

Excellent thermal insulation - very low thermal conductivity

Excellent acoustic insulation - efficiently minimizes sound and vibration transmission

Highly moisture resistant and certified fire retardant

Great physical strength to resist structural deformation

Strictly closed-cell inner molecular matrix

BS476 / UL94/ DIN5510/ ASTM-E84/ CE/ REACH/ ROHS/ GB certified

Frequently Asked Questions

What are the primary benefits of closed-cell insulation?

The closed-cell structure prevents water vapor transmission (water vapor permeability ≤0.91×10⁻¹³ Kg/(m.s.pa)) and ensures a low, stable thermal conductivity of ≤0.030 W/(m.k) at -20°C.

What is the safe temperature range for this insulation tube?

This elastomeric insulation handles a wide operating temperature range from -50°C to 110°C, making it ideal for freezing pipe lines and hot water systems alike.

Does this insulation meet building fire safety regulations?

Yes, it achieves Class 0 and Class 1 fire ratings according to BS 476 Part 6 & Part 7, has a flame spread/smoke developed index of 25/50 under ASTM E 84, and an oxygen index of ≥36.

Can this product be used for outdoor and environmental protection?

Yes, it has proven high resistance to ozone (GB/T 7762-1987), fungi (ASTM G21), and weathering/UV exposure (ASTM G23), ensuring durability in various environmental conditions.

Which regulatory standards and certifications does it comply with?

The product is extensively tested and certified under standards including BS476, UL94, DIN5510, ASTM-E84, CE, REACH, ROHS, and GB specifications.
