Low thermal conductivity for optimal energy conservation.
✓
Closed-cell foam structure blocks moisture ingress.
✓
Highly elastic and flexible rubber tubing reduces the vibration and resonance of chilled and hot water piping during use.
✓
Meets the most stringent requirements of fire retardant standards.
✓
Long term temperature tolerance: -50 degrees to 110 degrees C.
✓
Good elasticity, high flexibility, and long-term excellent sealing performance.
✓
Extremely long service life: 10-30 years.

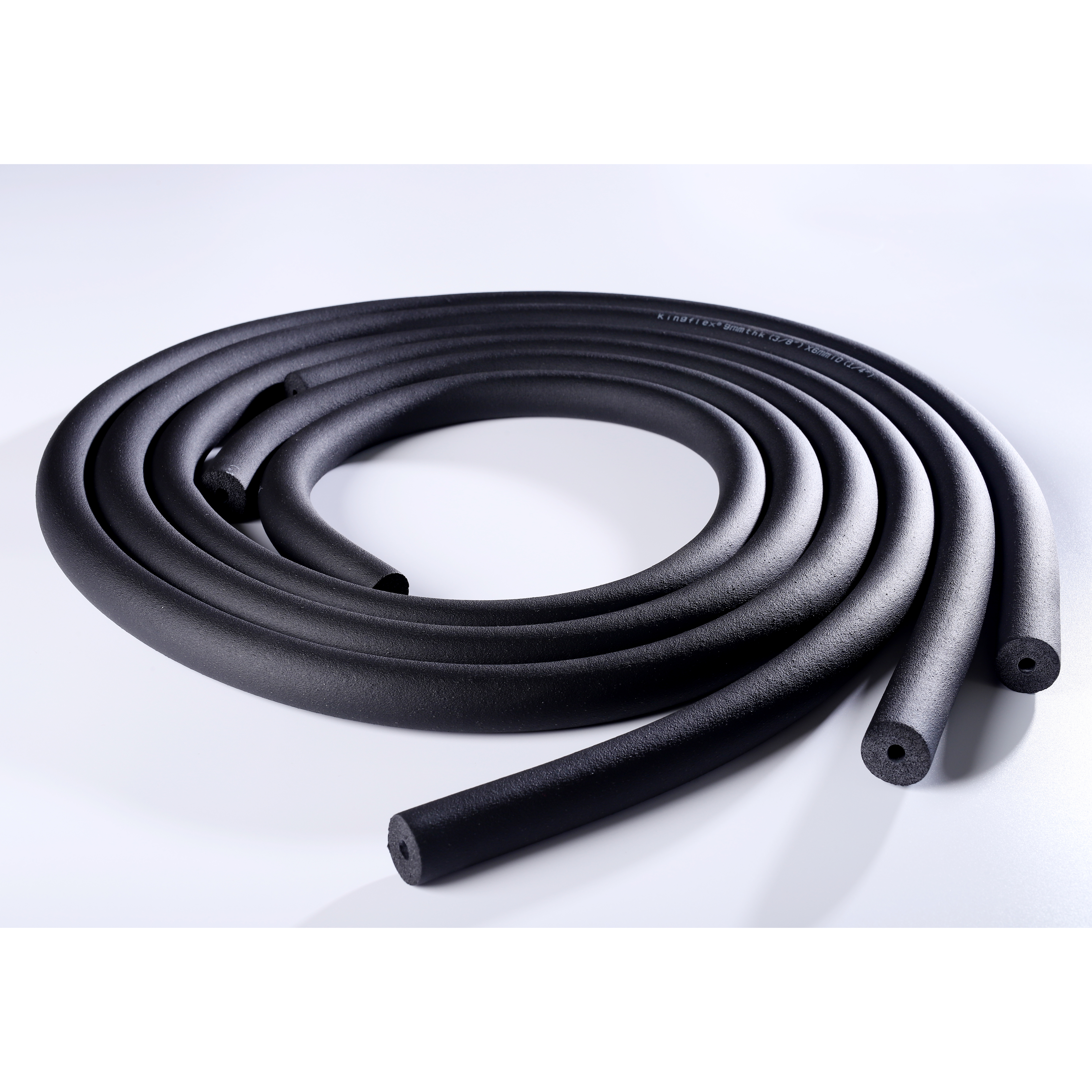

Our elastomeric insulation tube is generally black in color, with other colors available upon request. The product comes in tube, roll, and sheet form. The extruded flexible tubes are specially designed to fit the standard diameters of copper, steel, and PVC piping. Sheets are available in standard precut sizes or in rolls.
The rubber foam material is available with different facings, including FSK Alu Foil, Adhesive Kraft, and others, to meet diverse project requirements.
What is the temperature range of the elastomeric rubber foam insulation?
The insulation material offers a broad long-term temperature tolerance range from -50 degrees to 110 degrees C, making it highly suitable for both chilled and hot water piping systems.
Does this insulation material meet fire safety standards?
Yes, it meets the most stringent requirements for fire retardancy. It achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 and 7, and has an Oxygen Index of ≥36%.
How does the closed-cell foam structure benefit pipe insulation?
The closed-cell structure ensures extremely low thermal conductivity and offers high resistance to water vapor permeability (μ ≥ 10000). This prevents condensation and minimizes energy loss.
Can the insulation tubing reduce noise and vibration?
Yes, the highly elastic and flexible properties of the rubber tubing effectively cushion physical impacts and reduce the vibration and resonance of both hot and chilled water piping during operation.
What product forms and options are available?
The product is supplied in tube, roll, and sheet forms. The tubes are sized to fit standard copper, steel, and PVC piping. Various surface facings such as FSK Aluminum Foil and Adhesive Kraft are also available upon request.
What is the expected lifespan of this rubber foam insulation?
Thanks to its outstanding resistance to fungi, ozone, UV rays, and harsh weather conditions, this insulation foam delivers a long service life of 10 to 30 years.
Kingflex
