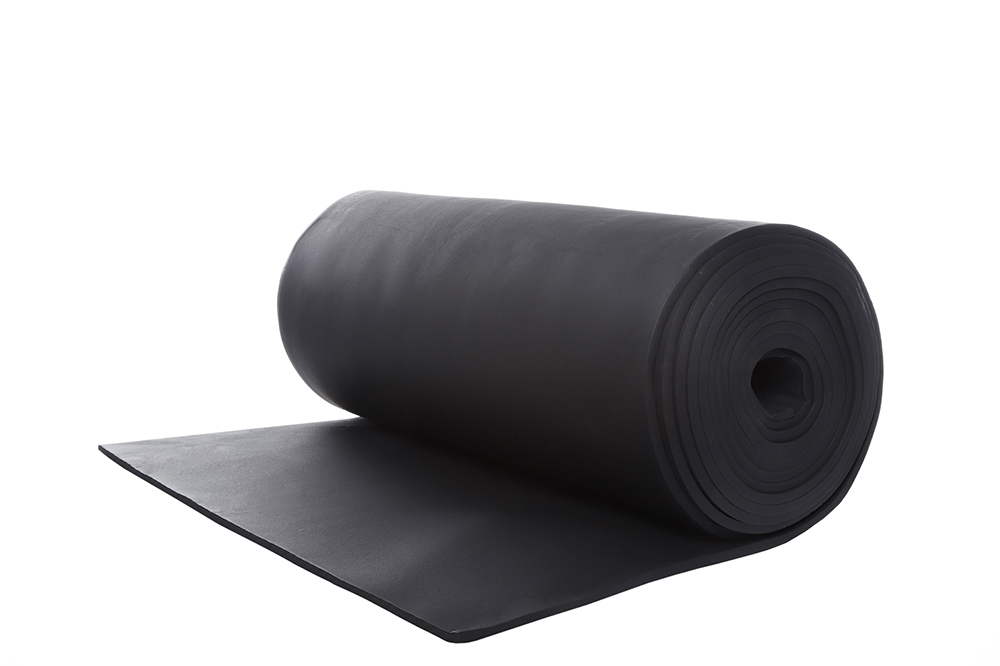

China Kingflex NBR Rubber Foam Sheet Roll Factories, Quotes

Kingflex offers elastomeric closed cell foaming Nitrile rubber foam insulation sheet roll.

Product Description

Insulation Material Showcase 1
Insulation Material Showcase 2

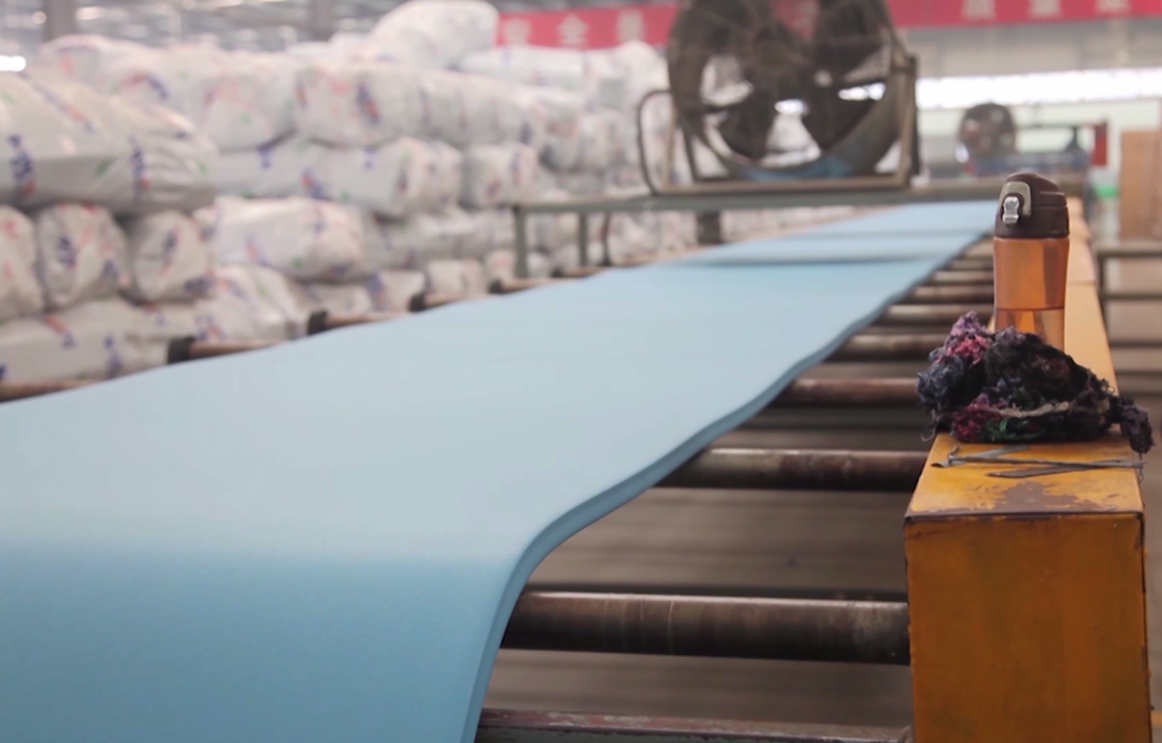

Insulation Material Showcase 3

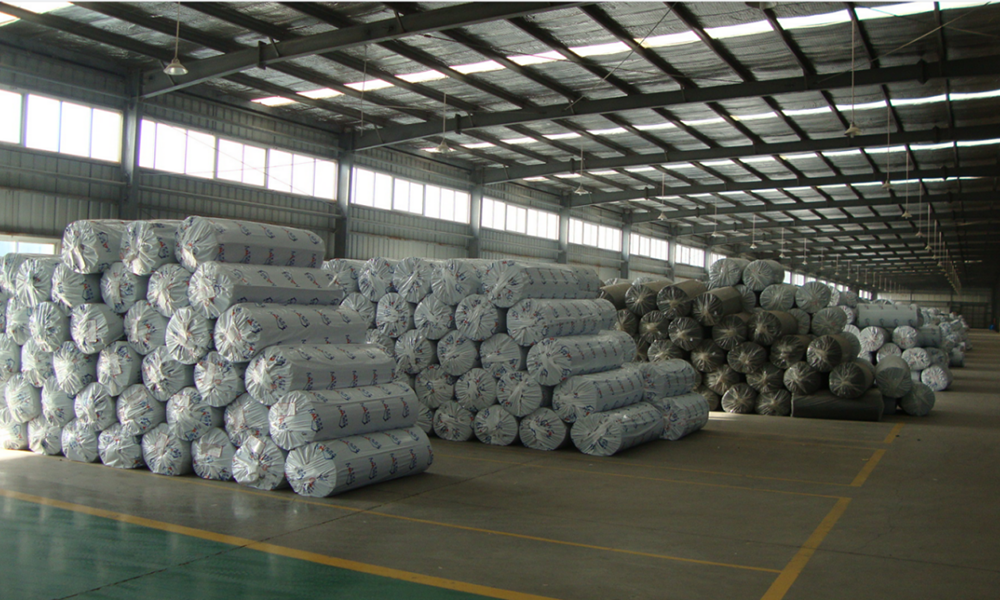

Insulation Material Showcase 4

Closed cell foam, high closed cell ratio, significantly improve the water vapor isolation ability, not easy to condensation, moisture resistance is excellent, to ensure the insulation effect.

Nitrile rubber foam insulation material adopts advanced closed cell foam process, this structure makes it has unique water vapor resistance, low thermal conductivity and sound insulation and shock absorption properties, and is widely used for applicable to water pipes in the hvac system and duct, refrigeration and heating equipment, hot water piping and process for cold insulation of pipeline and ensure the tightness of the entire system.

Insulation Performance Showcase 1
Insulation Performance Showcase 2
Application Scenario 1
Application Scenario 2
Application Scenario 3
Application Scenario 4
Application Scenario 5
Dimension
Thickness Width 1m Width 1.2m Width 1.5m
Inches mm Size(L*W) ㎡/Roll Size(L*W) ㎡/Roll Size(L*W) ㎡/Roll
1/4" 6 30 × 1 30 30 × 1.2 36 30 × 1.5 45
3/8" 10 20 × 1 20 20 × 1.2 24 20 × 1.5 30
1/2" 13 15 × 1 15 15 × 1.2 18 15 × 1.5 22.5
3/4" 19 10 × 1 10 10 × 1.2 12 10 × 1.5 15
1" 25 8 × 1 8 8 × 1.2 9.6 8 × 1.5 12
1 1/4" 32 6 × 1 6 6 × 1.2 7.2 6 × 1.5 9
1 1/2" 40 5 × 1 5 5 × 1.2 6 5 × 1.5 7.5
2" 50 4 × 1 4 4 × 1.2 4.8 4 × 1.5 6
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m3 45-65Kg/m3 ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406,ISO4589
Water Absorption,%by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23

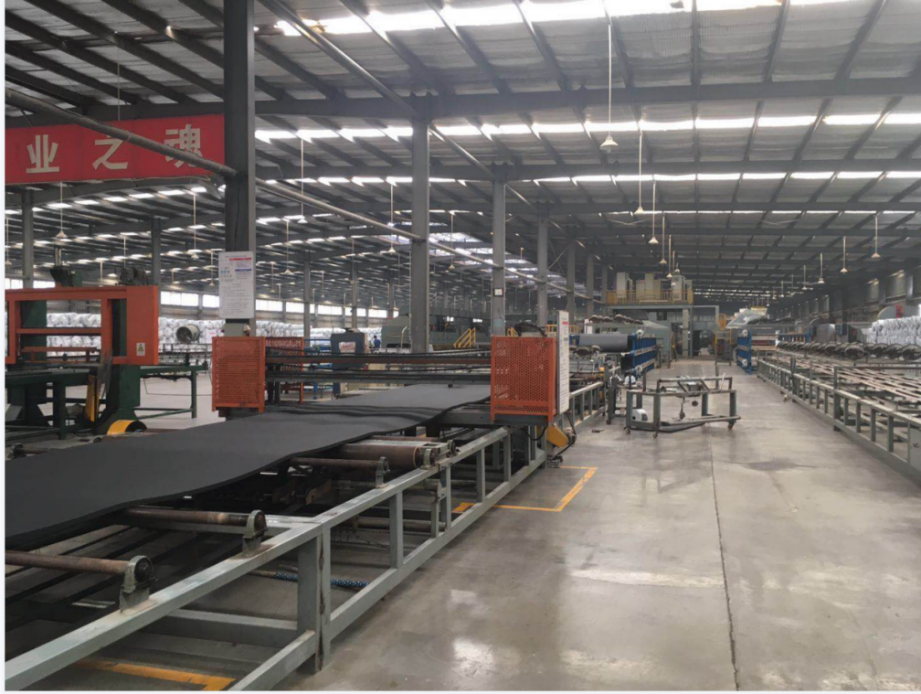

Insulation Packing and Storage
Frequently Asked Questions
Q: What are the main benefits of closed-cell Nitrile rubber foam insulation?
It features a high closed-cell ratio that significantly improves water vapor isolation, prevents condensation, and offers excellent moisture resistance and low thermal conductivity.
Q: Where is this insulation material typically applied?
It is widely used for water pipes and ducts in HVAC systems, refrigeration and heating equipment, hot water piping, and process pipelines for cold insulation.
Q: What temperature range can this insulation material withstand?
According to the technical specifications, it operates effectively within a temperature range of -50°C to 110°C, conforming to GB/T 17794-1999 test standards.
Q: What is the fire rating and smoke index of the material?
The material achieves Class 0 & Class 1 fire ratings (tested under BS 476 Part 6 & 7) and has a Flame Spread and Smoke Developed Index of 25/50 (ASTM E 84).
Q: Does this foam insulation resist environmental degradation?
Yes, it exhibits excellent resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and UV/weathering (ASTM G23), ensuring long-term durability.
Q: How does the water vapor permeability performance benefit the system?
With a low water vapor permeability (≤0.91×10⁻¹³ Kg/(m·s·Pa)), it ensures superior moisture barrier performance, maintaining the tightness and efficiency of the entire system.
