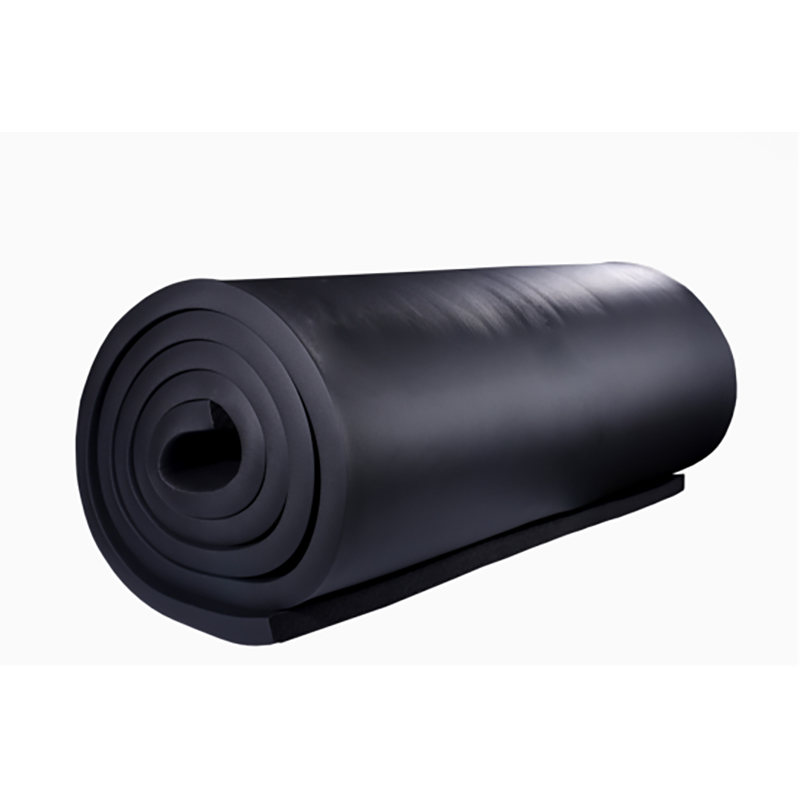

China Kingflex 13mm Thickness Rubber Foam Sheet Manufacturer, Supplier
1 / 1
China Kingflex 13mm Thickness Rubber Foam Sheet Manufacturer, Supplier

China Kingflex 13mm Thickness Rubber Foam Sheet Manufacturer, Supplier

Kingflex rubber foam are used for the heat-insulating and heat-preservation of shell of big tanks and piping in the construction, business and industry, heat insulation of air conditioners ,heat insulation of joint pipes of house air conditioners and automobile air conditioners. Kingflex rubber foam are widely used in the protection of sport equipment,in cushions and diving suits. Kingflex rubber foam are used in sound isolation of wall planking,sound absorption in air ducts ,and sound absorbing decorations in resistance and pressure relief in instruments and equipment.
Send Inquiry

Product Description

Kingflex Dimensions Sheet

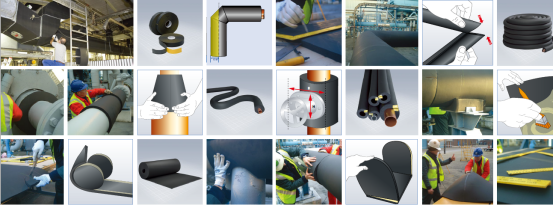

Kingflex Material Roll
Kingflex Dimensions
Thickness Width 1m Width 1.2m Width 1.5m
Inches mm Size(L*W) ㎡/Roll Size(L*W) ㎡/Roll Size(L*W) ㎡/Roll
1/4" 6 30 × 1 30 30 × 1.2 36 30 × 1.5 45
3/8" 10 20 × 1 20 20 × 1.2 24 20 × 1.5 30
1/2" 13 15 × 1 15 15 × 1.2 18 15 × 1.5 22.5
3/4" 19 10 × 1 10 10 × 1.2 12 10 × 1.5 15
1" 25 8 × 1 8 8 × 1.2 9.6 8 × 1.5 12
1 1/4" 32 6 × 1 6 6 × 1.2 7.2 6 × 1.5 9
1 1/2" 40 5 × 1 5 5 × 1.2 6 5 × 1.5 7.5
2" 50 4 × 1 4 4 × 1.2 4.8 4 × 1.5 6
Kingflex Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406,ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Rubber Foam Details

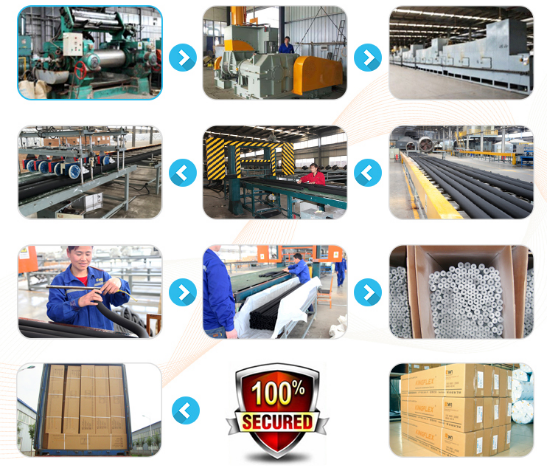

Rubber Foam Factory Processing

Kingflex Rubber foam Material is soft heat-insulating, heat-preservation and energy conservation materials made with advanced technology at home and advanced full-automatic continuous production line imported from abroad, using butyronitrile rubber with best performance and polyvinyl Chloride (NBR,PVC) as main raw materials and other high quality auxiliary materials through foaming and so on special procedure.

Frequently Asked Questions (FAQ)
Q: What is the temperature range that Kingflex rubber foam can withstand?
Kingflex rubber foam insulation operates efficiently within a wide temperature range of -50°C to 110°C, as tested under standard GB/T 17794-1999 methods.
Q: What fire safety ratings does the material achieve?
The material is rated Class 0 and Class 1 according to BS 476 Part 6 & 7 testing standards. It also features a 25/50 Flame Spread and Smoke Developed Index under ASTM E 84.
Q: How effectively does Kingflex prevent water vapor transmission?
It offers exceptional moisture protection with a water vapor permeability value of ≤0.91×10 ﹣¹³ Kg/(m.s.pa) and a resistance factor (μ) of ≥10000.
Q: Is the insulation resistant to environmental factors like mold and UV?
Yes, Kingflex rubber foam demonstrates "Good" resistance to fungi growth, ozone, UV radiation, and general weathering, complying with ASTM and GB test procedures.
Q: What is the thermal conductivity of this insulation material?
It retains a very low thermal conductivity: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C.
