China Rubber Foam Sheet Material Heat Insulation Board Suppliers, Pricelist

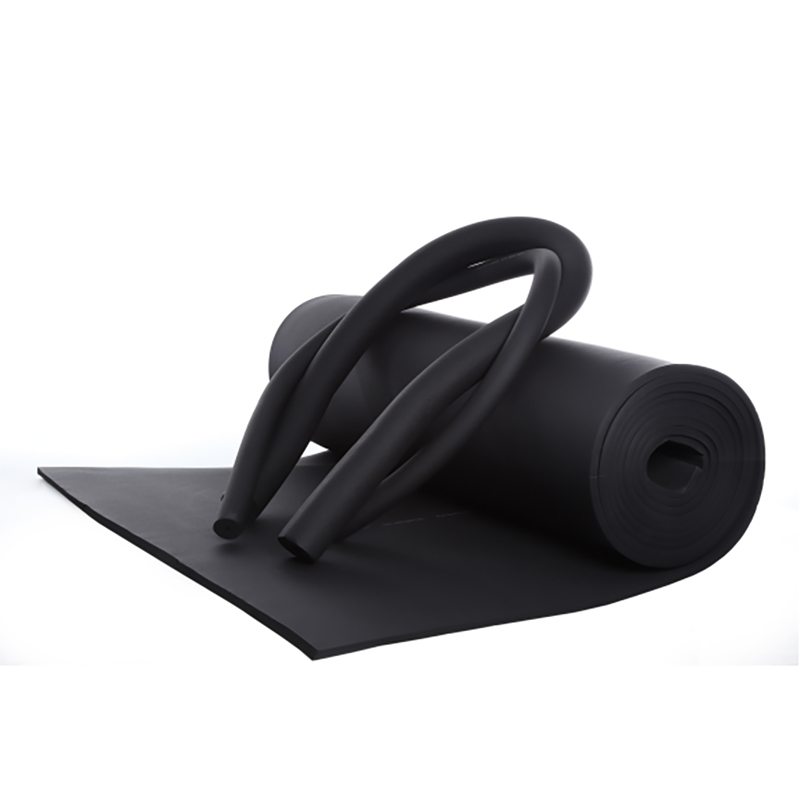

Customized Fire Retardant NBR Rubber Foam Sheet Insulation Roll adopts high-performance NBR/PVC as the main raw material with various quality supplementary material by special frothing process to produce the soft energy conversation foam insulation. It has closed cell construction and has many great features such as soft resistance refractive index, cold resistance, fire-retardant, waterproof, low thermal conductivity , shock and sound absorption and so on. It can be widely used in large-scale central and home air conditioning,construction, chemicals, textile and electrical industries.

Send Inquiry

Product Description

Product Dimensions
Thickness		Width 1m		Width 1.2m		Width 1.5m
Inches	mm	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll
1/4"	6	30 × 1	30	30 × 1.2	36	30 × 1.5	45
3/8"	10	20 × 1	20	20 × 1.2	24	20 × 1.5	30
1/2"	13	15 × 1	15	15 × 1.2	18	15 × 1.5	22.5
3/4"	19	10 × 1	10	10 × 1.2	12	10 × 1.5	15
1"	25	8 × 1	8	8 × 1.2	9.6	8 × 1.5	12
1 1/4"	32	6 × 1	6	6 × 1.2	7.2	6 × 1.5	9
1 1/2"	40	5 × 1	5	5 × 1.2	6	5 × 1.5	7.5
2"	50	4 × 1	4	4 × 1.2	4.8	4 × 1.5	6

Technical Data Specification
Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m³	45-65Kg/m³	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10⁻¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, %by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM G21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Appearance of High-grade, clean, generous, especially for supermarkets, exhibition centers, stadiums, workshops and other non-ceiling construction sites.

Anti-UV, anti-oxidation, anti-aging, corrosion-resistant.

Excellent water resistance with their penetration ability to maintain product initial thermal conductivity coefficient.

Greatly improved the life of the products.

Sports and Medical Equipment

Machinery Parts

Air–Condition and Automobile

Frequently Asked Questions

What dimensions and thicknesses are available for the insulation rolls?

The insulation rolls come in various thicknesses ranging from 1/4" (6mm) up to 2" (50mm), and are available in standard widths of 1m, 1.2m, and 1.5m to fit different application demands.

What is the operating temperature range of this material?

The material performs reliably within a wide temperature range of -50°C to 110°C, conforming to the GB/T 17794-1999 test standard.

How does the insulation rate in terms of fire and smoke safety?

It meets strict safety requirements, achieving Class 0 and Class 1 ratings under BS 476 Part 6 & 7, and a Flame Spread/Smoke Developed Index of 25/50 in ASTM E 84 testing.

Is the insulation material resistant to environmental factors and weather?

Yes, it demonstrates excellent (Good) resistance to UV, ozone, fungi growth, and general weathering, making it durable for demanding external conditions.

What are the primary applications of this elastomeric foam?

It is widely used in air conditioning, automotive components, machinery parts, sports and medical equipment, and architectural projects like supermarkets, exhibition centers, and stadium construction.

Why does it maintain its thermal conductivity over time?

Due to its excellent water resistance and extremely low water vapor permeability (≤0.91×10⁻¹³ Kg/(m.s.pa)), moisture does not easily penetrate the material, ensuring the thermal conductivity remains stable.
