This solution system overcomes stress at low temperatures and provides maximum mechanical performance.
Technical Specifications & Material Comparison
| Property |
Base Material |
Standard / Test Method |
| Kingflex ULT |
Kingflex LT |
| Thermal Conductivity |
-100°C, 0.028
-165°C, 0.021 |
0°C, 0.033
-50°C, 0.028 |
ASTM C177 |
| Density Range |
60-80Kg/m³ |
40-60Kg/m³ |
ASTM D1622 |
| Recommend Operation Temperature |
-200°C to 125°C |
-50°C to 105°C |
- |
| Percentage Of Close Areas |
>95% |
>95% |
ASTM D2856 |
| Moisture Performance Factor |
NA |
<1.96x10g(m.m.Pa) |
ASTM E 96 |
| Wet resistance Factor μ |
NA |
>10000 |
EN12086 / EN13469 |
| Water Vapor Permeability Coefficient |
NA |
0.0039g/h.m² (25mm thickness) |
ASTM E 96 |
| PH |
≥8.0 |
≥8.0 |
ASTM C871 |
| Tensile Strength Mpa |
-100°C, 0.30
-165°C, 0.25 |
0°C, 0.15
-50°C, 0.218 |
ASTM D1623 |
| Compressive Strength Mpa |
-100°C, ≤0.3 |
-40°C, ≤0.16 |
ASTM D1621 |
Over four decades, Kingflex Insulation Company has grown from a single manufacturing plant in China to a global organization with product installation in over 50 countries. From the National Stadium in Beijing, to the high rises in New York, Singapore and Dubai, people around the world are enjoying the quality products from Kingflex.

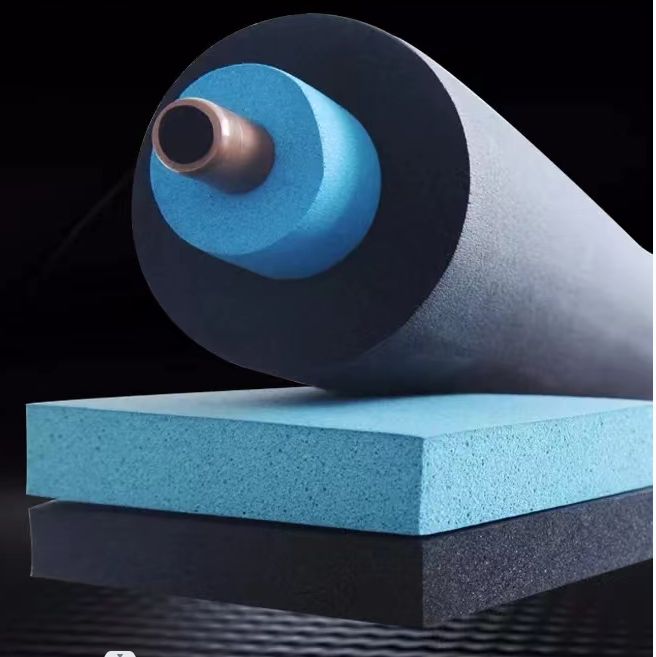

Kingflex ULT is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam. The product has been specially developed for use on the import/export pipelines and process areas of liquefied natural gas (LNG) facilities. It is part of Kingflex Cryogenic multi-layer configuration, providing low temperature flexibility to the system.
Standard Dimensions & Packaging Details
| Kingflex Dimension Specifications |
| Inches |
mm |
Size (L * W) |
㎡ / Roll |
| 3/4" |
20 |
10 × 1 |
10 |
| 1" |
25 |
8 × 1 |
8 |
Frequently Asked Questions (FAQ)
What is Kingflex ULT designed for?
Kingflex ULT is specially developed for use on import/export pipelines and process areas of liquefied natural gas (LNG) facilities. It provides cryogenic thermal insulation and is part of a multi-layer configuration that delivers low-temperature flexibility to the piping system.
What are the recommended operating temperatures for Kingflex ULT and LT?
The recommended operating temperature range for Kingflex ULT is -200°C to 125°C, making it optimal for extreme cryogenic environments. For Kingflex LT, the recommended operating temperature range is -50°C to 105°C.
How does Kingflex ULT handle mechanical stress at low temperatures?
Kingflex ULT is built as a flexible, high-density, and mechanically robust closed-cell elastomeric foam. This material structure is designed specifically to overcome thermal and physical stress under extreme low temperatures while maintaining peak mechanical performance.
What is the cell structure of Kingflex ULT and LT insulation?
Both materials feature a closed-cell structural configuration, with a percentage of closed areas exceeding 95%. This high closed-cell ratio ensures superior thermal resistance and prevents moisture intrusion.
What standard sizes and dimensions are available for Kingflex insulation rolls?
Kingflex insulation is available in standard thicknesses of 3/4" (20mm) in 10 × 1 meter rolls (10 ㎡ per roll) and 1" (25mm) in 8 × 1 meter rolls (8 ㎡ per roll).
What standard test methods are used to verify the performance of these materials?
Performance and physical properties are verified using recognized industry standards, including ASTM C177 for thermal conductivity, ASTM D1622 for density, ASTM D2856 for closed cell structure, and ASTM E 96 for moisture performance and water vapor permeability.
