Less joint ensure the air tightness of the system and make the installation efficient.
✓
Comprehensive cost is competitive.
✓
Built-in moisture proof, no need to install the extra moisture barrier.
✓
Without fiber, dust, CFC, HCFC.
✓
No expansion joint is required.

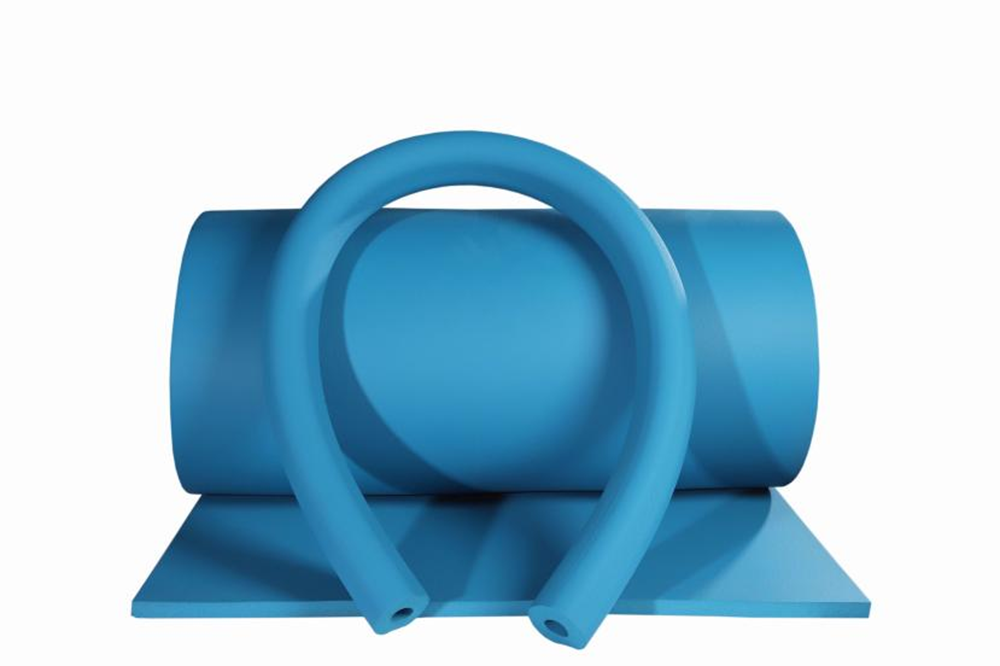

One of the key features of Kingflex Cryogenic Rubber Foam is its exceptional insulation properties. Its closed-cell structure helps to prevent the transfer of heat, making it an ideal choice for use in cryogenic tanks, pipelines, and other cold storage applications.
| Kingflex Dimension |
| Inches |
mm |
Size (L * W) |
㎡ / Roll |
| 3/4" |
20 |
10 × 1 |
10 |
| 1" |
25 |
8 × 1 |
8 |
| Property |
Base material |
Standard / Test Method |
| Kingflex ULT |
Kingflex LT |
| Thermal Conductivity |
-100°C, 0.028
-165°C, 0.021 |
0°C, 0.033
-50°C, 0.028 |
ASTM C177 |
| Density Range |
60-80Kg/m³ |
40-60Kg/m³ |
ASTM D1622 |
| Recommend Operation Temperature |
-200°C to 125°C |
-50°C to 105°C |
- |
| Percentage Of Close Areas |
>95% |
>95% |
ASTM D2856 |
| Moisture Performance Factor |
NA |
<1.96x10g(m.m.Pa) |
ASTM E 96 |
| Wet resistance Factor μ |
NA |
>10000 |
EN12086 / EN13469 |
| Water Vapor Permeability Coefficient |
NA |
0.0039g/h.m² (25mm thickness) |
ASTM E 96 |
| PH |
≥8.0 |
≥8.0 |
ASTM C871 |
| Tensile Strength Mpa |
-100°C, 0.30
-165°C, 0.25 |
0°C, 0.15
-50°C, 0.218 |
ASTM D1623 |
| Compressive Strength Mpa |
-100°C, ≤0.3 |
-40°C, ≤0.16 |
ASTM D1621 |
Frequently Asked Questions (FAQ)
What are the primary applications of Cryogenic Rubber Foam?
Cryogenic Rubber Foam is specifically designed for thermal insulation in low-temperature environments. It is ideal for cryogenic tanks, pipelines, cold storage equipment, and other industrial cold-preservation systems.
What is the difference between Kingflex ULT and Kingflex LT?
Kingflex ULT is engineered for ultra-low temperature applications ranging from -200°C to 125°C, with higher density and exceptional low-temp thermal conductivity. Kingflex LT is designed for moderate low-temperature applications ranging from -50°C to 105°C.
Does this insulation require an additional moisture barrier?
No. The material has a built-in moisture-proof feature due to its closed-cell structure (exceeding 95% closed cells), which naturally prevents moisture penetration without the need for extra barriers.
Why is the closed-cell structure important for cryogenic systems?
A high closed-cell ratio (above 95%) significantly restricts heat transfer and prevents water vapor absorption. This maintains long-term thermal efficiency and prevents condensation or ice formation on low-temperature pipelines.
Is the cryogenic rubber foam safe and environment-friendly?
Yes. The material is formulated without fiber, dust, CFCs, and HCFCs, making it safe to handle and environmentally sustainable during its entire service life.
