Reduces the risk of crack development and propagation
Reduces the risk of corrosion under insulation
Protects against mechanical impact and shock
Low thermal conductivity
Low glass transition temperature
Easy installation even to complex shapes
Less wastage compared to rigid/pre-fabricated pieces
Technical Specifications
Thermal Conductivity
0℃: 0.033 | -50℃: 0.028
Density
40-60 kg/m³
Recommend Operation Temp.
-50℃ to +105℃
Percentage of Close Area
>95%
Tensile Strength (Mpa)
0℃: 0.15 | -40℃: 0.218
Compressive Strength (Mpa)
-40℃: ≤0.16

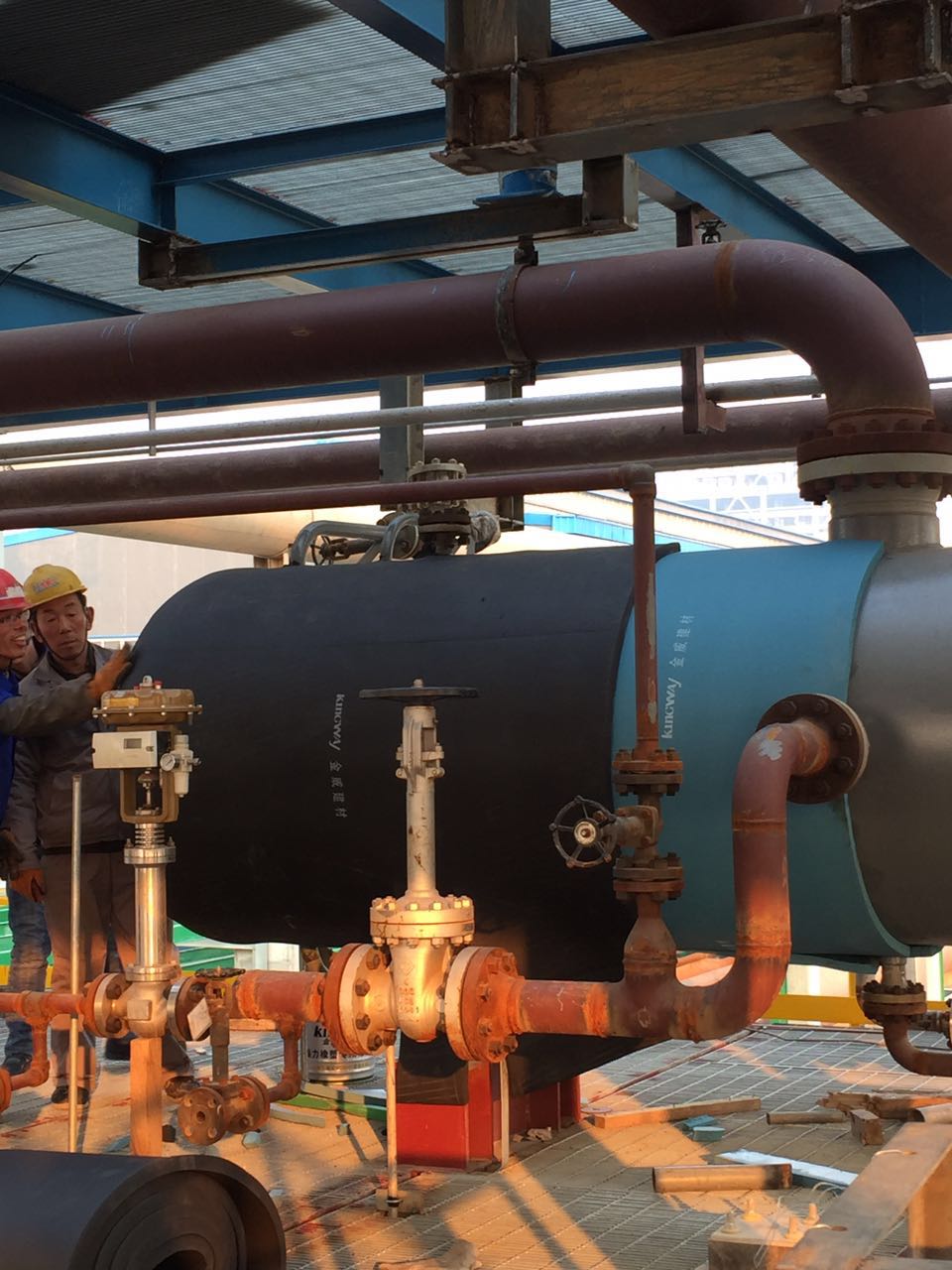

The cryogenic insulation multi-layer composite structure has excellent internal shock resistance. It is designed to meet the demands of low-temperature environments and is suitable for use in the oil and gas industry. This insulation solution provides exceptional thermal performance, reduces the risk of corrosion under insulation (CUI) and minimises the time needed for installation.
Frequently Asked Questions
What is the recommended operating temperature range for this cryogenic insulation?
The recommended operating temperature range for this cryogenic insulation is between -50℃ and +105℃, making it highly suitable for demanding low-temperature environments.
What is the thermal conductivity rating of this insulation material?
The thermal conductivity of the material is 0.033 W/(m·K) at 0℃, and it drops to 0.028 W/(m·K) at -50℃, ensuring excellent thermal efficiency.
How does this product help reduce corrosion under insulation (CUI)?
With a close area percentage exceeding 95% (>95%), the material prevents moisture intrusion, which significantly reduces the risk of corrosion under insulation (CUI).
What are the strength specifications of the composite structure?
It features a tensile strength of 0.15 Mpa at 0℃ and 0.218 Mpa at -40℃. The compressive strength is maintained at ≤0.16 Mpa at -40℃.
Is this insulation easy to install on complex industrial shapes?
Yes, the multi-layer composite structure is designed for easy installation even on complex shapes, which results in less wastage compared to rigid or pre-fabricated insulation pieces.
What industries is this insulation solution suitable for?
Due to its excellent internal shock resistance, low thermal conductivity, and ability to meet the strict demands of low-temperature environments, it is highly suitable for the oil and gas industry.
