Wholesale Elastomeric Insulation For the Ultra Low Temperature Systems Manufacturer, Supplier

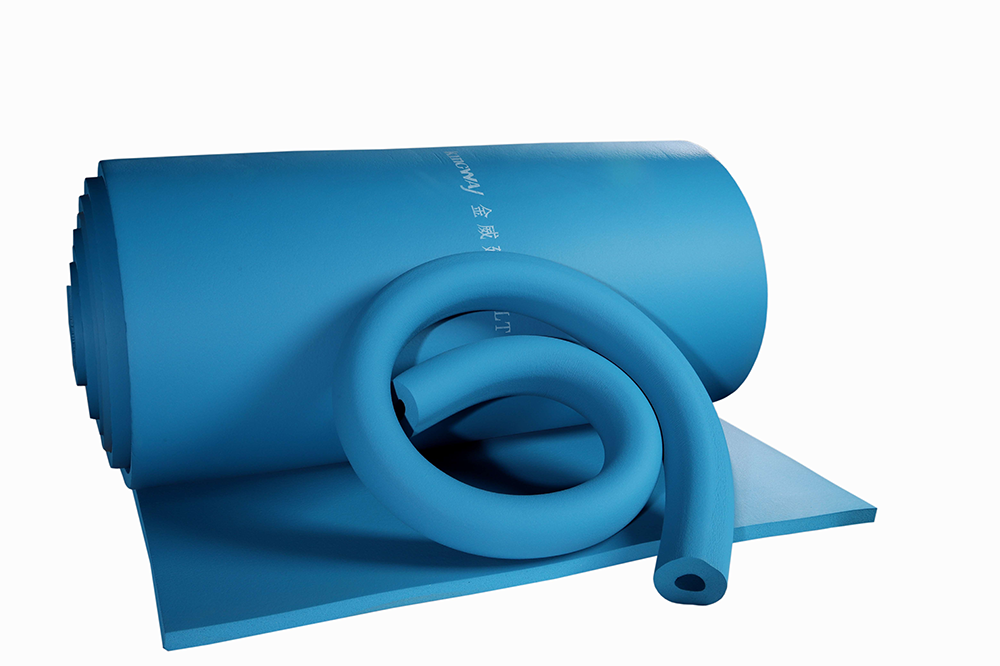

Kingflex ULT is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam.
✓ FPSO floating production storage oil unloading device
✓ Industrial gas and agricultural chemical production plants
✓ Platform pipe
✓ Gas station
✓ Ethylene pipe
✓ LNG
✓ Nitrogen plant
The product has been specially developed for use on the import or export pipelines and process areas of (liquefied natural gas) facilities. It is a part of Kingflex Cryogenic multi layer configuration, providing low temperature flexibility to the system.
Kingflex Dimension
Inches
mm
Size (L * W)
㎡ / Roll
3/4"
20
10 × 1
10
1"
25
8 × 1
8
Main Property
Base material
Test Method / Standard
Kingflex ULT
Kingflex LT
Thermal Conductivity
-100°C, 0.028 -165°C, 0.021
0°C, 0.033 -50°C, 0.028
ASTM C177
Density Range
60-80 Kg/m³
40-60 Kg/m³
ASTM D1622
Recommend Operation Temperature
-200°C to 125°C
-50°C to 105°C
-
Percentage Of Close Areas
>95%
>95%
ASTM D2856
Moisture Performance Factor
NA
< 1.96 x 10 g(m.m.Pa)
ASTM E 96
Wet resistance Factor μ
NA
>10000
EN12086 EN13469
Water Vapor Permeability Coefficient
NA
0.0039 g/h.m² (25mm thickness)
ASTM E 96
PH
≥8.0
≥8.0
ASTM C871
Tensile Strength Mpa
-100°C, 0.30 -165°C, 0.25
0°C, 0.15 -50°C, 0.218
ASTM D1623
Compressive Strength Mpa
-100°C, ≤0.3
-40°C, ≤0.16
ASTM D1621
Our Mission
More comfortable life, more profitable business through energy conservation.
With 5 large automatic assembly lines and more than 600,000 cubic meters of annual production capacity, this enterprise is specified as the designated production enterprise of thermal insulation materials for the National energy department, Ministry of electric power and Ministry of chemical industry.
Frequently Asked Questions (FAQ)
?What is the primary application of Kingflex Cryogenic insulation?
The insulation is specially developed for import/export pipelines and process areas of LNG (liquefied natural gas) facilities. It forms a key part of multi-layer cryogenic configurations, ensuring essential low-temperature flexibility.
?What is the recommended operating temperature range for Kingflex ULT and LT?
Kingflex ULT is recommended for applications operating in temperatures ranging from -200°C to 125°C. Kingflex LT is recommended for temperatures between -50°C to 105°C.
?How does the closed cell structure benefit cryogenic systems?
Both ULT and LT grades boast a closed cell area percentage of over 95%. This exceptionally high ratio prevents moisture intrusion, ensuring thermal stability and long-lasting performance in extreme low-temperature environments.
?What sizing options are available for these rolls?
Standard options include a 3/4" (20mm) thickness available in 10m x 1m rolls (10㎡ total), and a 1" (25mm) thickness available in 8m x 1m rolls (8㎡ total).
?Which testing standards do these insulation materials comply with?
The materials are tested against stringent global standards, including ASTM C177 for thermal conductivity, ASTM D1622 for density, ASTM D2856 for closed cell structure, and ASTM E 96 for water vapor permeability.
