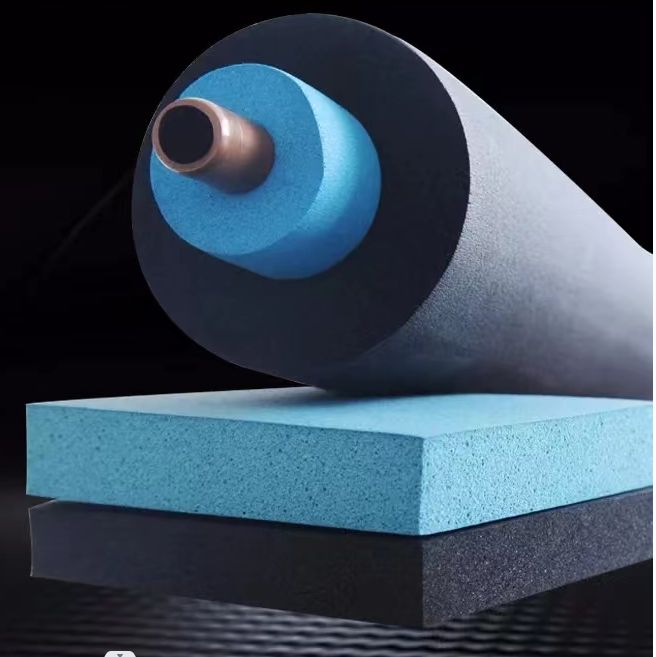

The flexible ULT system insulation system does not need to install an additional moisture barrier. Due to the unique closed-cell structure and polymer blend formulation, the LT low-temperature elastomeric materials are highly resistant to water vapor permeation.
Physical & Technical Properties
| Property |
Base Material Specifications |
Standard / Test Method |
| ULT Material |
LT Material |
| Thermal Conductivity [W/(m·K)] |
-100°C: 0.028
-165°C: 0.021 |
0°C: 0.033
-50°C: 0.028 |
ASTM C177 |
| Density Range |
60 - 80 Kg/m³ |
40 - 60 Kg/m³ |
ASTM D1622 |
| Recommend Operation Temperature |
-200°C to 125°C |
-50°C to 105°C |
- |
| Percentage Of Close Areas |
>95% |
>95% |
ASTM D2856 |
| Moisture Performance Factor |
NA |
<1.96x10⁻¹¹ g/(m·s·Pa) |
ASTM E 96 |
| Wet Resistance Factor |
NA |
>10000 |
EN12086 / EN13469 |
| Water Vapor Permeability Coefficient |
NA |
0.0039 g/(h·m²) (25mm thickness) |
ASTM E 96 |
| PH Value |
≥8.0 |
≥8.0 |
ASTM C871 |
| Tensile Strength (MPa) |
-100°C: 0.30
-165°C: 0.25 |
0°C: 0.15
-50°C: 0.218 |
ASTM D1623 |
| Compressive Strength (MPa) |
-100°C: ≤0.3 |
-40°C: ≤0.16 |
ASTM D1621 |
Key Features & Benefits
❄️
Insulation maintains excellent flexibility at ultra-low temperatures ranging from -200℃ to 125℃.
🛡️
Effectively minimizes the risk of Corrosion Under Insulation (CUI) to extend equipment lifespan.
⚡
Extremely low thermal conductivity yields outstanding energy savings and thermal efficiency.
🔧
Easy, hassle-free installation even for highly complex layouts and pipe geometries.
Standard Dimensions
| Dimension Specifications |
| Inches |
mm |
Size (L * W) |
㎡ / Roll |
| 3/4" |
20 |
10 × 1 m |
10 |
| 1" |
25 |
8 × 1 m |
8 |
Frequently Asked Questions
Does this ULT system require an external moisture barrier?
No, the flexible ULT insulation system does not require an additional moisture barrier. Its unique closed-cell structure and advanced polymer blend formulation natively provide high resistance to water vapor permeation.
What is the operating temperature range for the ULT and LT materials?
The ULT material is designed for extreme low-temperature applications, functioning from -200°C to 125°C. The LT material is suitable for temperatures from -50°C to 105°C.
How does this insulation prevent Corrosion Under Insulation (CUI)?
The closed-cell structure prevents moisture ingress, which is the primary cause of CUI. Additionally, both ULT and LT materials feature a neutral-to-alkaline pH value (≥8.0), reducing the risk of chemical corrosion on metal pipes.
What are the thermal conductivity properties of the ULT insulation?
The ULT material demonstrates outstanding thermal resistance with low thermal conductivity values of 0.028 W/(m·K) at -100°C and 0.021 W/(m·K) at -165°C under ASTM C177 testing standards.
Can these materials be easily installed on complex pipe shapes?
Yes. Because the elastomeric material retains its flexibility even at extremely low temperatures, it can be easily cut, wrapped, and installed around complex fittings, valves, and tight geometries.
What standard sizes are available for the insulation rolls?
The rolls are available in two standard specifications: 3/4" (20mm thickness, 10 × 1 m size, 10 ㎡/roll) and 1" (25mm thickness, 8 × 1 m size, 8 ㎡/roll).
