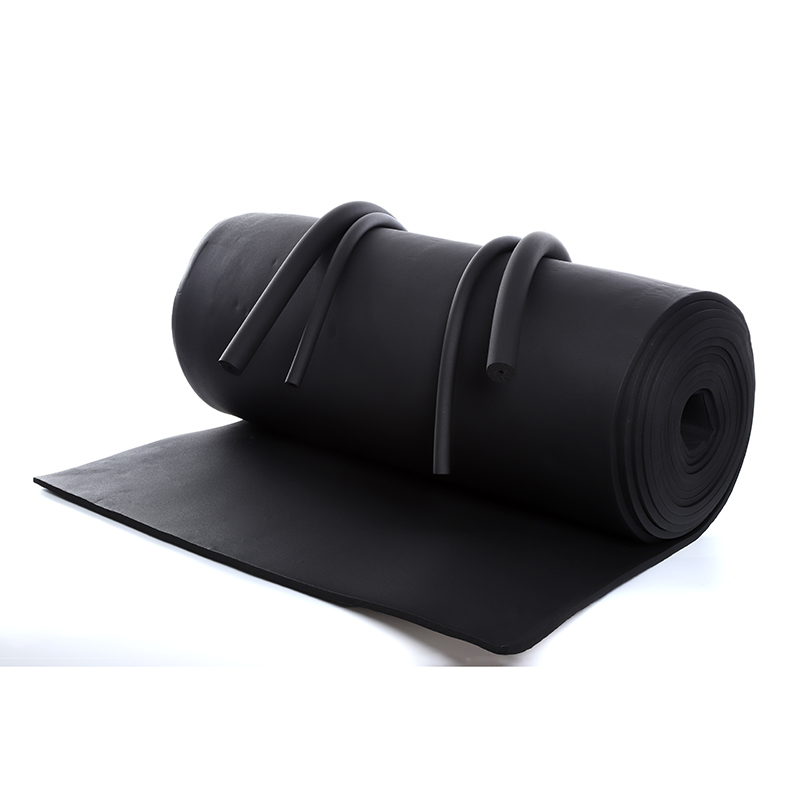

Kingflex insulation sheet is a high-quality rubber plastic heat-insulating and heat-preservation material. It not only has the same thermal conductivity with CLASS B1, but also has better heat insulation, energy saving property and best moisture resistance factor and longer service life. Kingflex insulation sheet has best fireproof property because of many special materials has been added as its raw and processed materials. It accords with kinds of standards and has been sold to all over the word.

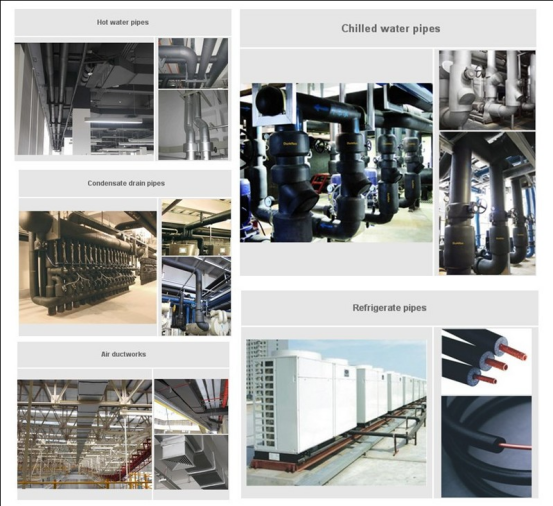

On the basis of the elastomeric foam with closed-cellular structure, high quality flexible insulation product designed for insulating in the field of heating, ventilating, air conditioning and refrigerating(HVAC & R). And provides efficient method of preventing undesirable heat gain or loss in chilled water systems, cold and hot water plumbing, refrigerated pipes, air conditioning ductwork and equipment.
Thermal/heat insulation rubber foam sheet/tube/material is widely used in medium pipeline of center air-conditioner, vehicle and shipping, chemical and medical industrial, getting the effect of reduce the cold and heat losing.
Frequently Asked Questions (FAQ)
Q1. What are the primary applications of this flexible insulation material?
This high-quality elastomeric foam is primarily designed for insulation in the heating, ventilating, air conditioning, and refrigerating (HVAC & R) sectors. It effectively prevents heat gain or loss in chilled water systems, hot and cold water plumbing, refrigerated pipelines, and air conditioning ducts.
Q2. What is the temperature range resistance of the elastomeric foam?
The insulation material functions exceptionally well across a temperature range of -50°C to 110°C, verified in compliance with the GB/T 17794-1999 test standards.
Q3. Does this insulation product meet safety standards for fire rating?
Yes, the material achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 under the ASTM E 84 standard.
Q4. How does the product handle moisture and water absorption?
Thanks to its closed-cellular structure, the material features an extremely low water vapor permeability (≤0.91×10 ﹣¹³ Kg/(m.s.pa)) and maintains water absorption of only 20% by volume as tested by ASTM C 209, ensuring robust protection against moisture ingress.
Q5. How durable is the insulation against outdoor environmental factors?
It features strong resistance capabilities, graded as "Good" for ozone resistance (GB/T 7762-1987), UV and weather resistance (ASTM G23), and fungi resistance (ASTM 21), ensuring longevity under tough environmental conditions.
Q6. What sizes and thicknesses are available for installation?
The thickness ranges from 1/4" (6mm) up to 2" (50mm) to support varying thermal needs. It is available in roll widths of 1m, 1.2m, and 1.5m with customized roll lengths depending on the specifications.
