Growth in the construction industry and many other industrial segments, combined with concerns over rising energy costs and noise pollution, is fueling market demand for thermal insulation. With more than four decades of dedicated experience in manufacturing and applications, the industry leader is riding on the top of the wave.
Key Product Advantages
-
1
Closed-cell structure provides excellent condensation and energy-loss control
-
2
Effectively retards degradation due to ultraviolet (UV) radiation
-
3
Flexible material with dusted, relaxed ID’s for easy installation
-
4
Superior toughness to withstand on-site handling
-
5
Built-in vapor barrier eliminates need for additional vapor retarder
-
6
Complete size range for HVAC/R systems
-
7

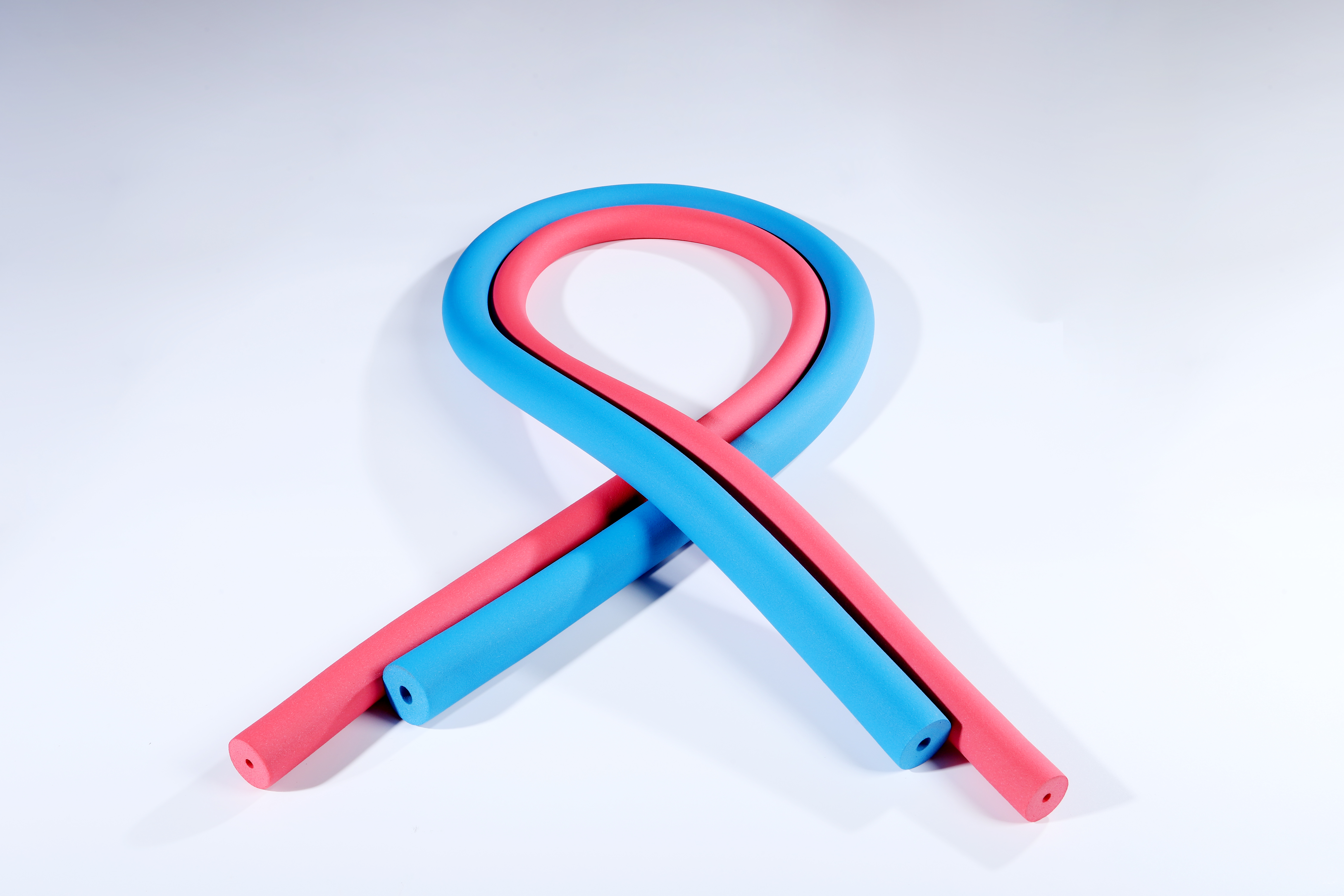

Designed to distinguish clearly between different pipelines

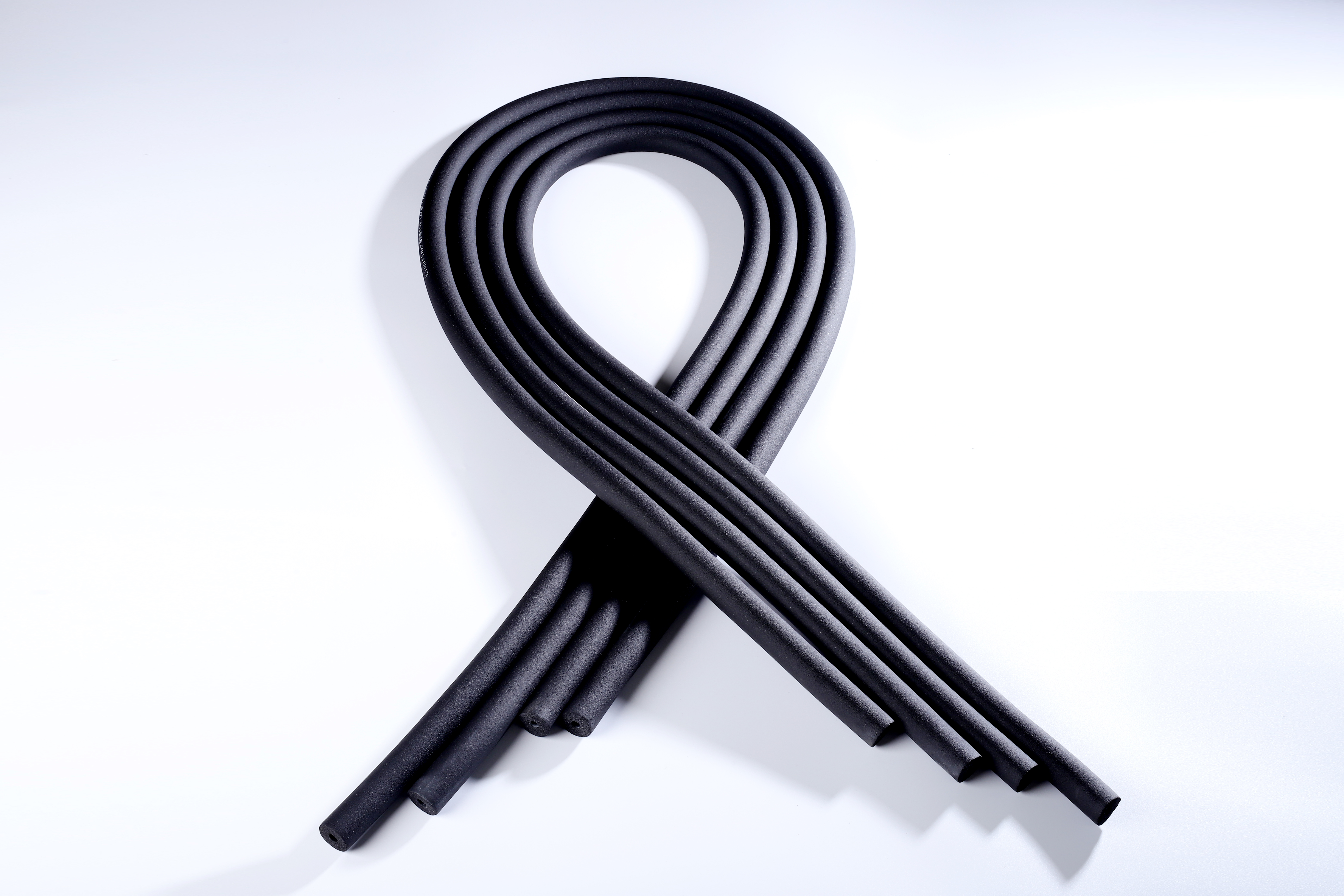

Standard Dimensions: Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″, 1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard length configuration is 6ft (1.83m) or 6.2ft (2m).

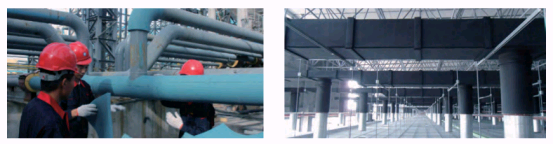

Rubber Foam Insulation could be used in schools, hospitals, government institutions and commercial spaces of all types that value long-term performance. Its moisture-resistant characteristics make it especially valuable on chilled-water and refrigeration piping where condensation might otherwise soak through fibrous types of insulations, significantly degrading their thermal performance, leaving them susceptible to fungal growth and ultimately shortening their life cycle. Moisture-resistant insulation, however, maintains its physical and thermal integrity -- for the life of the mechanical system!
Frequently Asked Questions
What are the primary benefits of the closed-cell structure in rubber foam insulation?
The closed-cell structure provides exceptional condensation control and prevents energy loss, maintaining high thermal efficiency in HVAC/R and piping systems.
Can this insulation material be installed outdoors under sunlight?
Yes. The material effectively retards degradation due to ultraviolet (UV) radiation and shows good resistance to weathering (tested under ASTM G23).
What sizing options are available for different piping needs?
It comes in nominal wall thicknesses ranging from 1/4” up to 2” (6mm to 50mm) and standard lengths of 6ft (1.83m) or 6.2ft (2m) to support a wide range of pipeline sizes.
Why is rubber foam preferred over fibrous insulation for refrigeration piping?
Fibrous insulation can absorb moisture from condensation, which degrades thermal performance and promotes fungal growth. Rubber foam is inherently moisture-resistant, maintaining its structure and thermal performance for the life of the system.
What fire safety ratings does this insulation hold?
It meets Class 0 and Class 1 standards under BS 476 Part 6 & 7 testing, and has a Flame Spread and Smoke Developed Index of 25/50 according to ASTM E 84.
