Wholesale Kingflex NBR is a flexible closed cell elastomeric thermal insulation foam Manufacturers, Supplier
1 / 1

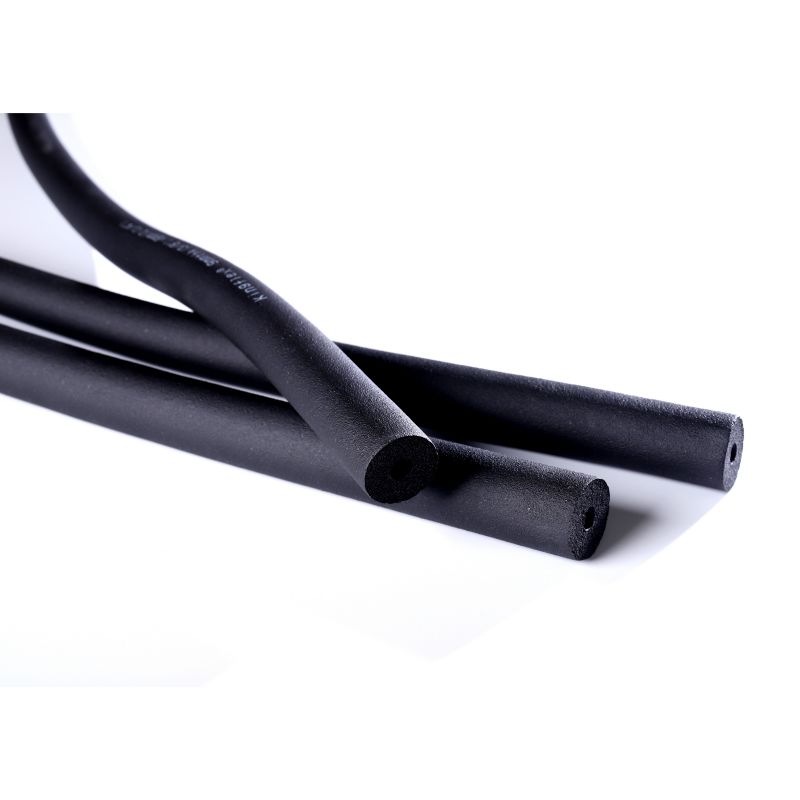

Wholesale Kingflex NBR is a flexible closed cell elastomeric thermal insulation foam Manufacturers, Supplier
Kingflex NBR is a flexible closed cell elastomeric thermal insulation foam, with high water vapor diffusion resistance factor and low thermal conductivity, designed for both indoor and outdoor use; however, external use requires additional protection from weather and UV radiation.
Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm).
Standard Length with 6ft (1.83m) or 6.2ft(2m).
Provides effective insulation in large temperature range environments ranging from -50 to 110 degrees C.
Very low thermal conductivity properties result in excellent insulation for AC ducts, Chilled water pipelines, copper pipelines, drain pipelines, etc.
Very high water vapor diffusion resistance properties resulting in negligible water absorption.
Class O provides top notch fire performance as per the building regulations.
Non-reactive and offers excellent resistance to chemicals, oil, and ozone.
Zero Ozone depletion properties.
It is dust and fiber free product.
Flexible elastomeric closed-cell foam pipe insulation, also known as rubber, is composed of synthetic rubber. The two main foam rubber formulations that are commercially available are nitrile butadiene rubber with PVC (NBR/PVC). The insulation materials are widely in multiple scenes for thermal insulation and noise reduction, which are used in various pipes and equipment, such as central air conditioning, air conditioning units, construction, chemical, medicine, electrical appliances, aerospace, auto industry, thermal power etc.
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m3
45-65Kg/m3
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
≤0.032 (0°C)
≤0.036 (40°C)
ASTM C 518
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO4589
Water Absorption, % by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
Frequently Asked Questions (FAQ)
What temperature range can this elastomeric foam insulation withstand?
This insulation material is highly versatile, providing effective and reliable performance across a wide operating temperature range from -50°C to 110°C.
Where is this insulation material typically applied?
It is widely used for thermal insulation and noise reduction in central air conditioning systems, AC ducts, chilled water lines, copper pipelines, drain lines, and machinery across chemical, medical, automotive, and aerospace industries.
How does this insulation handle moisture and water absorption?
The material possesses exceptionally high water vapor diffusion resistance, which results in negligible water absorption, preventing condensation and rust formation on pipelines.
Does this insulation offer fire resistant properties?
Yes, it achieves top-tier fire ratings of Class 0 and Class 1 as per building standards and complies with key safety parameters such as ASTM E 84 for flame spread and smoke indexes.
Is the material environmentally friendly and safe to handle?
Absolutely. The foam features zero ozone depletion properties and is entirely dust and fiber-free, making it clean, easy to install, and safe for indoor air quality.
