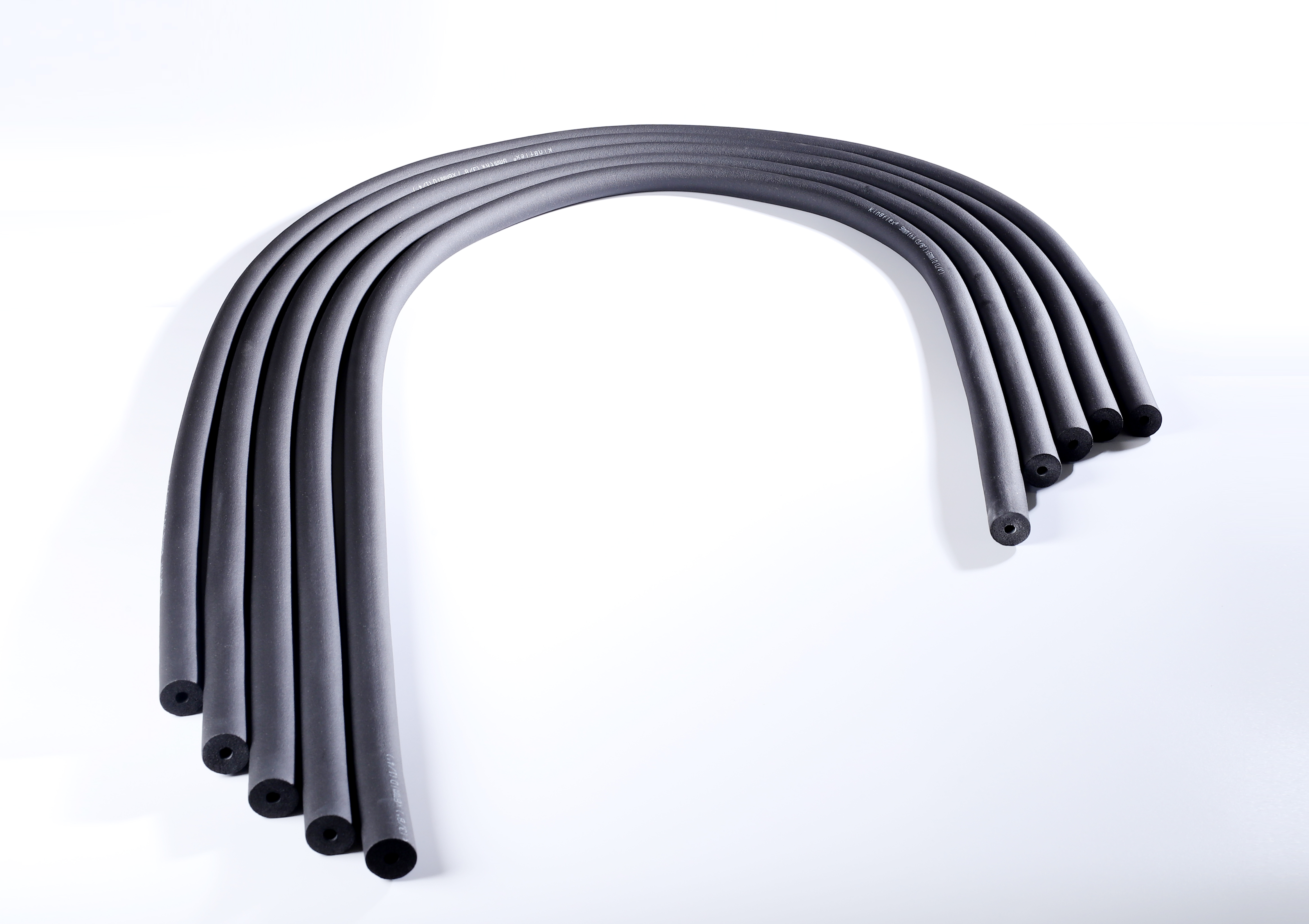

Wholesale Kingflex closed cell rubber foam insulation tubes Manufacturer, Suppliers

Kingflex closed cell rubber foam insulation tubes are produced by imported high-end technology and automatic continuous equipment. We have developed a rubber foam insulation material with excellent performance through in-depth research. The major raw materials we use are NBR/PVC. Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Send Inquiry

Product Description

Technical Data Sheet

Technical Data
Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m³	45-65Kg/m³	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Key Product Advantages

Perfect Heat Preservation Insulation

The high density and closed structure of selected raw material has the ability of low thermal conductivity and stable temperature, providing an excellent isolation effect for hot and cold media.

Good Flame Retardant Properties

When exposed to fire, the insulation material does not melt, produces low smoke, and prevents flame spread to guarantee safety. Rated as nonflammable, with an operating range of -50℃ to 110℃.

Eco-Friendly Material

The environmentally friendly raw material is non-stimulating, non-polluting, and poses no hazard to health or the environment. It resists mold growth, deters pests, and offers excellent corrosion, acid, and alkali resistance.

Easy to Install & Use

Convenient installation that eliminates the need for additional auxiliary layers. The material is simple to cut and adhere, significantly reducing manual labor and installation time.

Product Presentation

Frequently Asked Questions

What is the safe operating temperature range for this insulation material?

The material is highly stable and suitable for applications spanning temperatures from -50°C to 110°C, ensuring reliable performance in both hot and cold environments.

What are the fire performance and safety ratings of this product?

This material boasts a Class 0 and Class 1 fire rating according to BS 476 Part 6 & Part 7. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84, meaning it does not melt or spread flames when exposed to fire.

How effective is the thermal conductivity of this insulation?

The material has exceptionally low thermal conductivity: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, providing outstanding heat preservation performance.

Is the material environmentally friendly and safe to use?

Yes. The material is non-stimulating, pollution-free, and safe for health and the environment. It is also formulated to prevent mold growth, resist pest damage, and withstand corrosion, acids, and alkalis.

Does this insulation material stand up well to outdoor weather conditions?

Yes, it demonstrates outstanding durability with excellent resistance to U.V. radiation, weather exposure, ozone, and fungi, as verified by ASTM G23 and other standards.

Is the installation process complex?

No, the installation is highly efficient. It requires no additional auxiliary protective layers; you simply need to cut the material to size and bond it together using adhesives, which saves significant time and labor cost.
