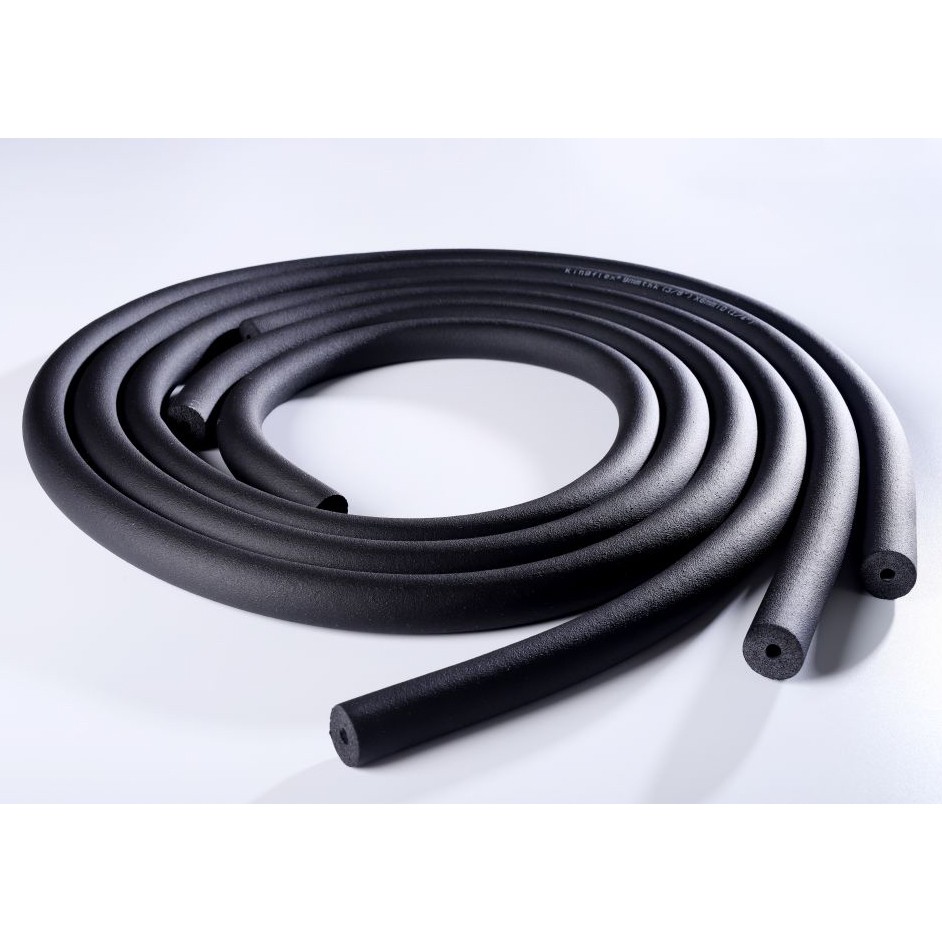

Kingflex Thermal Insulation Tubes are closed-cell elastomeric foam structure whose non-porous composition offers high thermal efficiency as well as protection from imminent condensation problems and helps in sound absorption. Due to their dimensional stability, they reduce friction and reduce installation time significantly.
Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm).
Standard Length with 6ft (1.83m) or 6.2ft(2m).
Thermal Insulation Tubes not only are they environmentally friendly, they pose no harm to human health, they have zero Ozone Depletion Potential (ODP), Global Warming Potential (GWP) of less than five, and a low Volatile Organic Compound (VOC) of less than 6 µg/m2/hr in 24 hours. The elimination of chlorofluorocarbons (CFC) and hydro chlorofluorocarbons (HCFC) from the production process while complying with LEED requirements make these Thermal Insulation Tubes ideal for use in projects that need optimal air conditioning, refrigeration, chilled water pipes, and hot water pipes thermal insulation.
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m³
45-65Kg/m³
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)

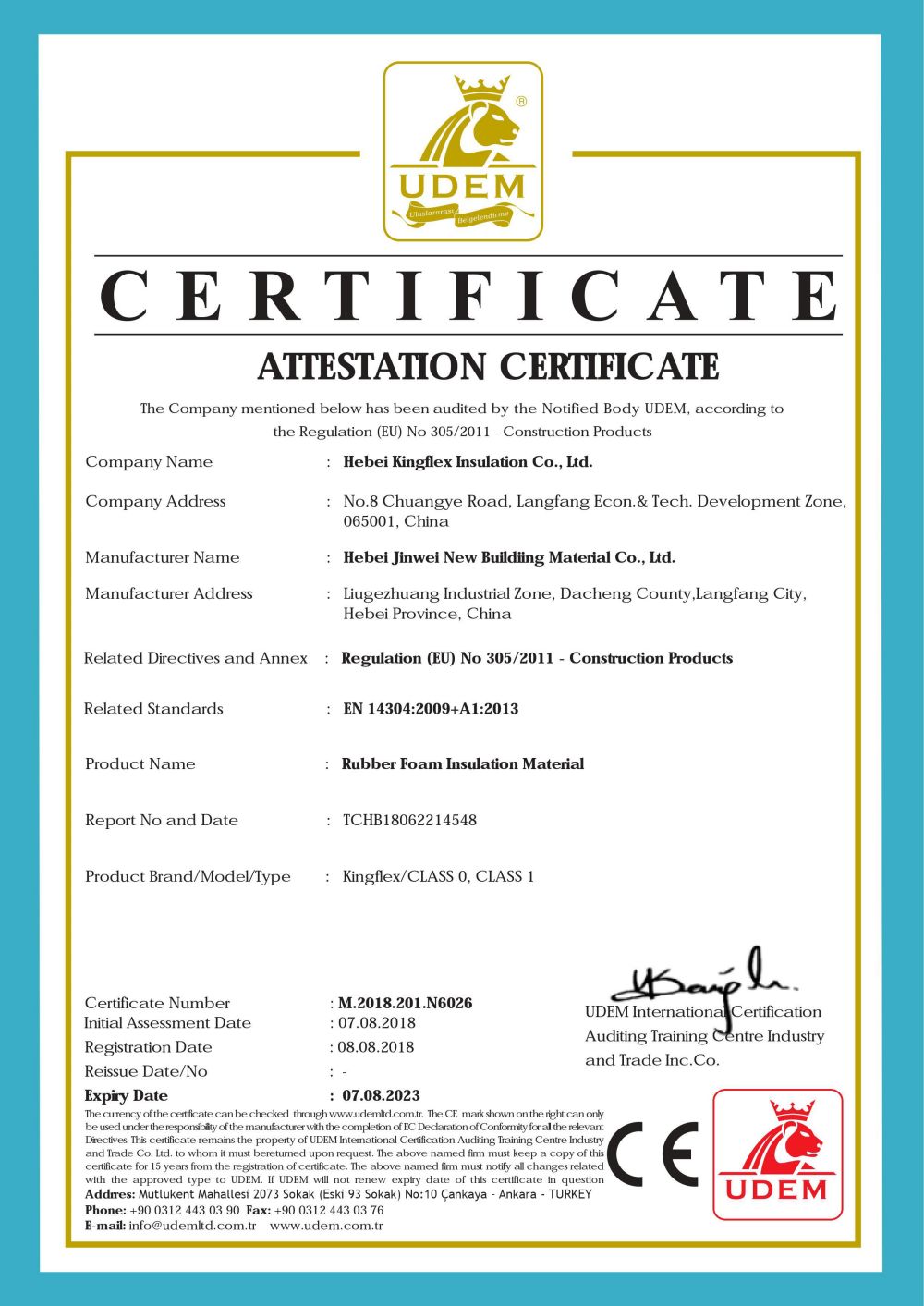

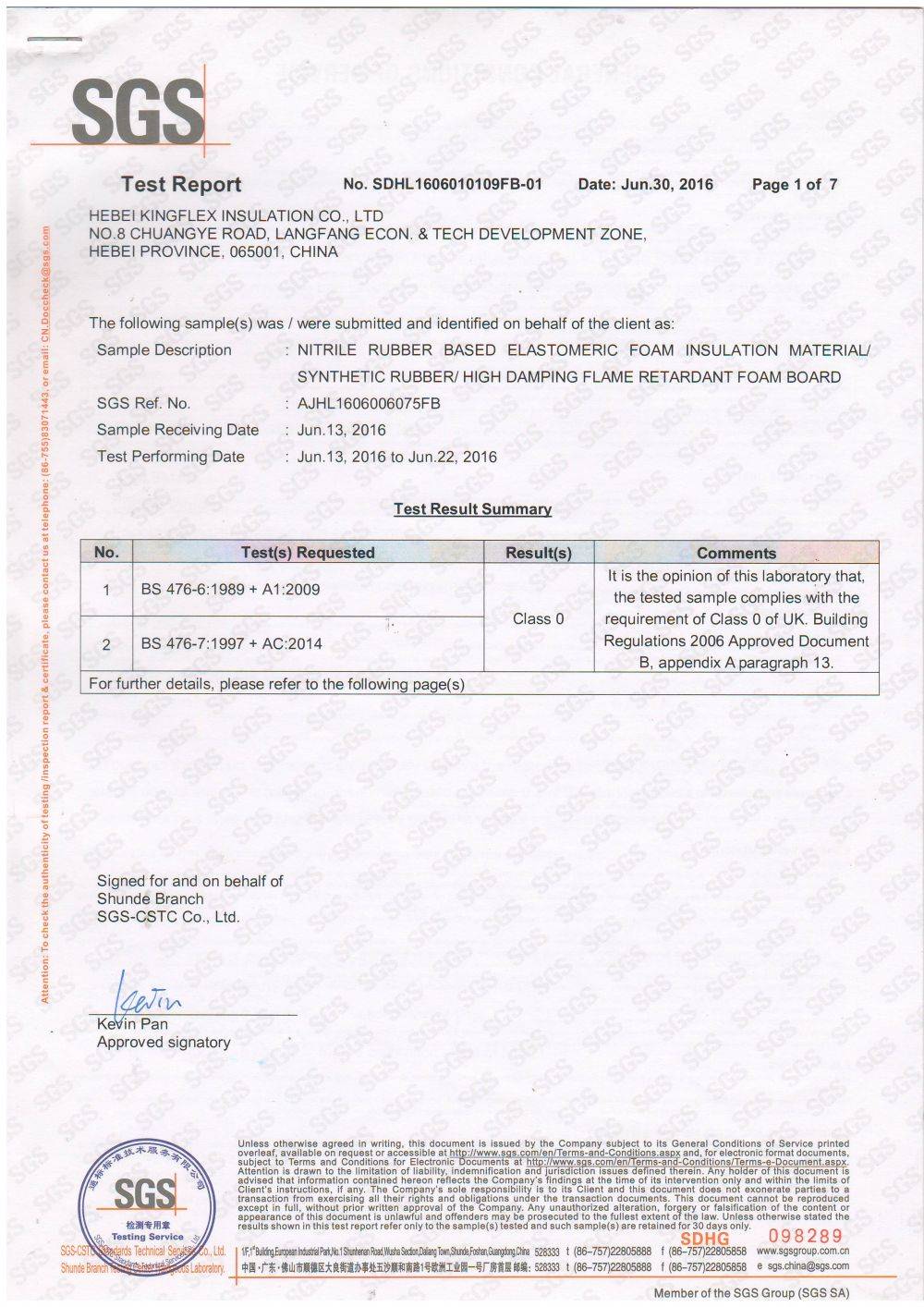

Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO4589
Water Absorption, % by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
Key Benefits of Thermal Insulation Tubes
1
Improve the energy efficiency of the building
2
Reduce transmission of exterior sound to the interior of the building
3
Absorb reverberating sounds within the building
4
Provide thermal efficiency
5
Keep the building warmer in winter and cooler in summer
Frequently Asked Questions
What is the temperature range of these thermal insulation tubes?
These insulation tubes are designed to function efficiently within a temperature range of -50°C to 110°C, making them highly versatile for cold and hot applications.
Are these insulation tubes eco-friendly?
Yes, they are environmentally friendly. They have zero Ozone Depletion Potential (ODP), a Global Warming Potential (GWP) of less than five, and are completely free of CFCs and HCFCs.
How do they perform in terms of fire resistance?
They carry a Class 0 & Class 1 fire rating in compliance with BS 476 Part 6 & 7, and have a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84.
Can they reduce noise inside buildings?
Yes, these tubes help reduce the transmission of exterior sound to the interior and absorb reverberating sounds within the building structure.
Are these insulation tubes resistant to outdoor weather and UV rays?
Yes, the material exhibits good resistance to ozone, fungi, U.V., and weathering, which makes them suitable for challenging environmental conditions.
