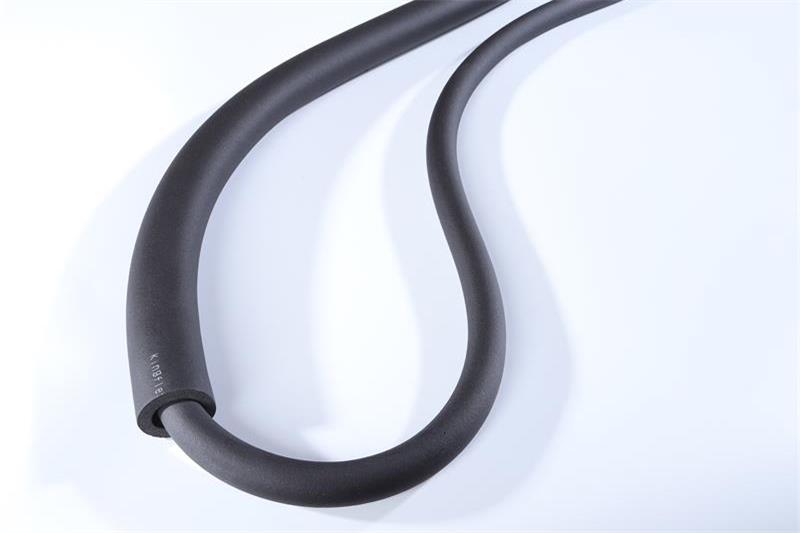

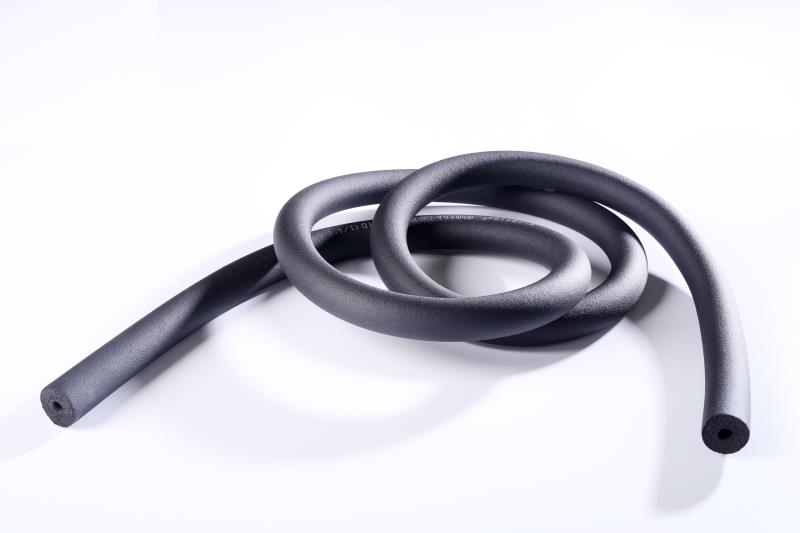

Wholesale Closed Cell Rubber Foam Insulation Tube Manufacturers, Factories

Product Description

Rubber foam insulation product is ideally designed with an excellent fire and safety insulation performance according to the market demand. Adopting unique micro foaming technology, the product cells are uniformed and fine, delivering excellent heat preservation, heat insulation performance, and higher safety fireproof performance. It has achieved the highest fire certification of BS standard, reaching the highest safety standards for fireproofing in the world, bringing higher security for users.
  • Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″, 1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25, 32, 40 and 50mm)
  • Standard Length with 6ft (1.83m) or 6.2ft (2m).
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10⁻¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Key Benefits & Certifications
Excellent thermal insulation - very low thermal conductivity
Excellent acoustic insulation - reduces noise and sound transmission
High moisture and fire resistance
Good structural strength to resist deformation
Closed cell structure prevents water absorption
Certified by ASTM, SGS, BS476 (Class 0 & Class 1), UL94, CE, AS1530, DIN, REACH and RoHS
Frequently Asked Questions
Q1: What are the fire safety ratings of this rubber foam insulation?

The product has achieved Class 0 and Class 1 fire ratings according to BS 476 Part 6 & Part 7. It also holds certifications for UL94 and ASTM E 84, ensuring top-tier safety and performance globally.

Q2: How does the closed cell structure benefit the insulation system?

The closed cell structure creates an effective barrier against water and moisture permeability. This prevents heat transfer issues and ensures long-term thermal stability while resisting mold and fungi growth.

Q3: What thickness options are available for project customization?

We offer nominal wall thicknesses ranging from 1/4” up to 2” (6mm to 50mm) in standard lengths of either 6ft (1.83m) or 6.2ft (2m) to suit various HVAC and piping applications.

Q4: Can this insulation product be used in low-temperature environments?

Yes, the product operates efficiently in a wide temperature range from -50°C to 110°C, making it suitable for both cold piping systems and hot water lines.

Q5: Does this rubber foam insulation provide acoustic properties?

Yes, thanks to its dense structure and micro-foaming properties, it serves as an excellent acoustic insulator by damping sound vibrations and reducing structural noise transmitting through piping.

Q6: How does the material perform against weather and UV exposure?

The insulation exhibits good resistance to ozone, UV rays, and general weathering under ASTM G23 standards, maintaining its structural integrity without significant deformation.
