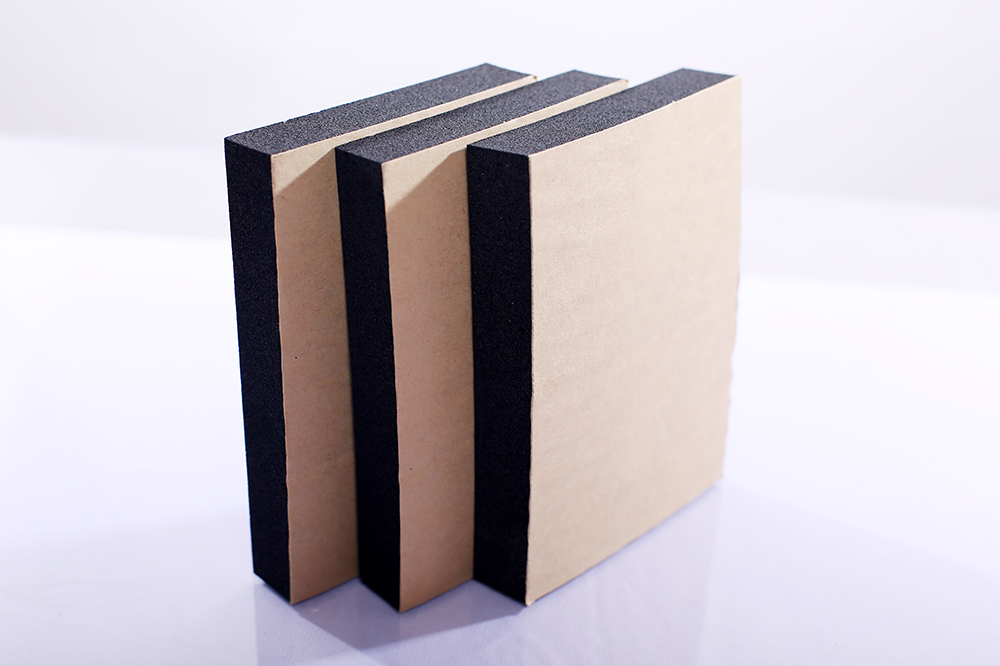

Our rubber foam sheet with self-adhesive is widely used in electrical cabinets, cars, speakers, toys, handicrafts, sports equipment, etc. The adhesive foam pads are made from high-quality neoprene closed-cell foam. Resistant to high and low temperatures, can be used from -50℃ to 110℃. Weatherproof, oil resistance, resistant to corrosion, dust proof, buffering, flame retardant, shock-absorbing, sound and heat insulation, anti-skidding, and insulating.
Key Material Features
High-quality neoprene closed-cell structure
Operational temperature range: -50℃ to 110℃
Flame retardant, weatherproof & oil resistant
Excellent sound/heat insulation and shock absorption
Dimension Specifications
Product Dimension
Thickness
Width 1m
Width 1.2m
Width 1.5m
Inches
mm
Size(L*W)
㎡/Roll
Size(L*W)
㎡/Roll
Size(L*W)
㎡/Roll
1/4"
6
30 × 1
30
30 × 1.2
36
30 × 1.5
45
3/8"
10
20 × 1
20
20 × 1.2
24
20 × 1.5
30
1/2"
13
15 × 1
15
15 × 1.2
18
15 × 1.5
22.5
3/4"
19
10 × 1
10
10 × 1.2
12
10 × 1.5
15
1"
25
8 × 1
8
8 × 1.2
9.6
8 × 1.5
12
1 1/4"
32
6 × 1
6
6 × 1.2
7.2
6 × 1.5
9
1 1/2"
40
5 × 1
5
5 × 1.2
6
5 × 1.5
7.5
2"
50
4 × 1
4
4 × 1.2
4.8
4 × 1.5
6
Adhesion & Customization
Our rubber foam roll with self-adhesive has good adhesion: The adhesive foam sheet has a strong adhesive backing, waterproof and non-degumming, and sticks firmly, is an ideal solution for gaskets and insulation projects. The neoprene foam rubber pad can be easily cut into different shapes and sizes. Just use scissors to trim it to a perfect fit.
Technical Data Sheet
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m3
45-65Kg/m3
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO4589
Water Absorption, % by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
Frequently Asked Questions
What are the main applications for the self-adhesive rubber foam sheet?
It is widely used in electrical cabinets, cars, speakers, toys, handicrafts, sports equipment, gaskets, and insulation projects.
What is the operating temperature range of this foam sheet?
The high-quality neoprene closed-cell foam is highly resistant to both high and low temperatures, operating safely from -50℃ to 110℃.
Is the self-adhesive backing reliable for long-term use?
Yes, it features a strong, waterproof, and non-degumming adhesive backing that sticks firmly, providing an ideal seal for gaskets and structural insulation.
Can I easily customize the size and shape?
Absolutely. The neoprene foam rubber pads are highly flexible and can be effortlessly trimmed to any shape or size with basic household scissors for a perfect fit.
What fire and flame safety standards does this material meet?
The foam insulation satisfies BS 476 Part 6 & 7 with a Class 0 & Class 1 fire rating, and holds a flame spread / smoke developed index of 25/50 under ASTM E 84.
Does this product offer resistance to environmental elements?
Yes, it has verified testing data proving good resistance to UV rays, weathering, ozone, fungi growth, water absorption, and corrosion.
