Insulation Dimensions
| Thickness |
Width 1m |
Width 1.2m |
Width 1.5m |
| Inches |
mm |
Size (L*W) |
㎡/Roll |
Size (L*W) |
㎡/Roll |
Size (L*W) |
㎡/Roll |
| 1/4" |
6 |
30 × 1 |
30 |
30 × 1.2 |
36 |
30 × 1.5 |
45 |
| 3/8" |
10 |
20 × 1 |
20 |
20 × 1.2 |
24 |
20 × 1.5 |
30 |
| 1/2" |
13 |
15 × 1 |
15 |
15 × 1.2 |
18 |
15 × 1.5 |
22.5 |
| 3/4" |
19 |
10 × 1 |
10 |
10 × 1.2 |
12 |
10 × 1.5 |
15 |
| 1" |
25 |
8 × 1 |
8 |
8 × 1.2 |
9.6 |
8 × 1.5 |
12 |
| 1 1/4" |
32 |
6 × 1 |
6 |
6 × 1.2 |
7.2 |
6 × 1.5 |
9 |
| 1 1/2" |
40 |
5 × 1 |
5 |
5 × 1.2 |
6 |
5 × 1.5 |
7.5 |
| 2" |
50 |
4 × 1 |
4 |
4 × 1.2 |
4.8 |
4 × 1.5 |
6 |

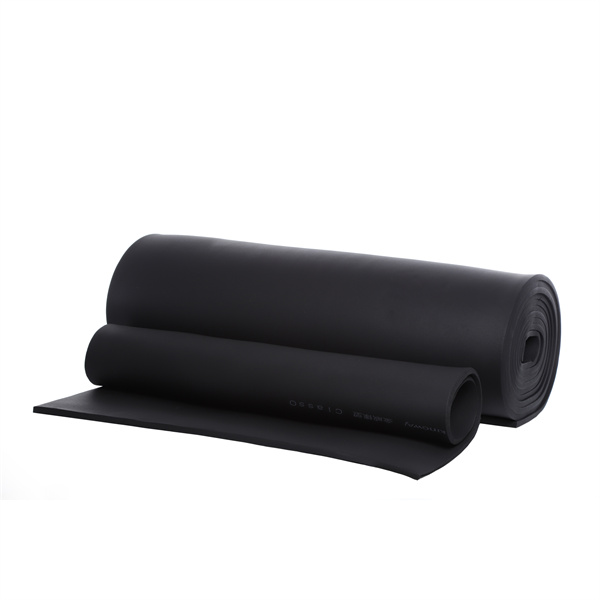

The Class 0/1 insulation is generally black in color, and other colors are available upon request. The product comes in tube, roll, and sheet forms. The extruded flexible tubes are specially designed to fit the standard diameters of copper, steel, and PVC piping. Sheets are available in standard pre-cut sizes or in rolls.
Technical Data
| Property |
Unit |
Value |
Test Method |
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m³ |
45-65Kg/m³ |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10⁻¹³ |
DIN 52 615 / BS 4370 Part 2 1973 |
| μ |
≥10000 |
- |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |
| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406, ISO4589 |
| Water Absorption, % by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
- |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
- |
Good |
ASTM G23 |
Key Features & Advantages
Good fire-blocking performance
Closed pore foaming with good damp-proof properties
Good pliability and high flexibility
Beautiful appearance, easy and quick to install
Safe to use (non-irritating to skin), excellent acid-resisting and alkali-resisting performance
Frequently Asked Questions
What are the fire ratings for this insulation material?
The material achieves Class 0 and Class 1 fire ratings, meeting BS 476 Part 6 & Part 7 test standards. It has a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84.
What forms of insulation products are available?
The insulation comes in three main formats: extruded flexible tubes (designed for standard copper, steel, and PVC piping), rolls, and sheets (available in pre-cut sizes or rolls).
What is the operating temperature range?
The operating temperature range is -50°C to 110°C, tested in compliance with the GB/T 17794-1999 standard.
How does the material prevent moisture absorption?
Thanks to its closed pore foaming structure, the insulation material has a high water vapor resistance factor (μ ≥ 10000) and a low water absorption value of 20% by volume (ASTM C 209).
Is this insulation material environmentally and health-safe?
Yes. The material is safe to handle and install. It does not stimulate or irritate the skin, does not harm health, and is resistant to fungi, ozone, and UV weathering.
