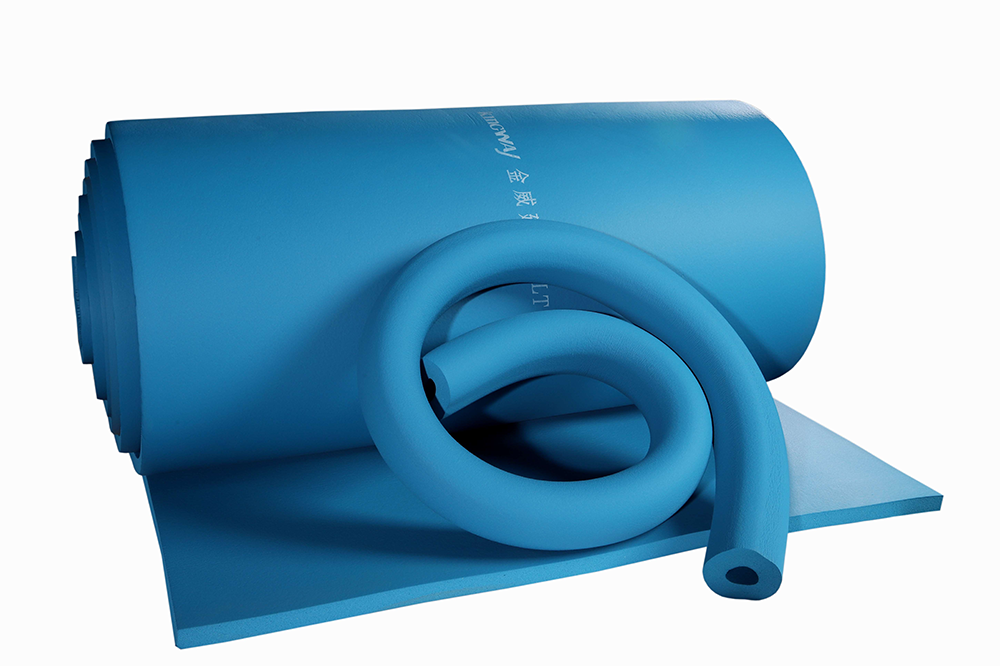

China NBR/PVC Rubber Foam Insulation For Cryogenic System Supplier, Quotes
Multi-layer composite structure: ULT for inner layer; LT for outer layer.
Main material: ULT—alkadiene polymer; color in Blue
LT—NBR/PVC; color in Black
The flexible ultra-low temperature insulation system does not require a moisture barrier. Thanks to the unique closed cell structure and polymer mix formula, the elastic foam material of nitrile butadiene rubber has a high resistance to water vapor penetration. This foam material provides continuous resistance to moisture penetration throughout the thickness of the product.
Dimension Specification
Inches
mm
Size (L*W)
㎡/Roll
3/4"
20
10 × 1
10
1"
25
8 × 1
8
Typical Applications
Low temperature storage tankIndustrial gas production plantsAgricultural chemical production plantsPlatform pipeGas stationNitrogen plant
Property
Base Material
Test Method
ULT Grade
LT Grade
Thermal Conductivity
-100°C: 0.028 -165°C: 0.021
0°C: 0.033 -50°C: 0.028
ASTM C177
Density Range
60-80Kg/m³
40-60Kg/m³
ASTM D1622
Recommend Operation Temperature
-200°C to 125°C
-50°C to 105°C
-
Percentage Of Closed Areas
>95%
>95%
ASTM D2856
Moisture Performance Factor
NA
<1.96x10g(m.m.Pa)
ASTM E 96
Wet resistance Factor μ
NA
>10000
EN12086 EN13469
Water Vapor Permeability Coefficient
NA
0.0039g/h.m² (25mm thickness)
ASTM E 96
PH
≥8.0
≥8.0
ASTM C871
Tensile Strength Mpa
-100°C: 0.30 -165°C: 0.25
0°C: 0.15 -50°C: 0.218
ASTM D1623
Compressive Strength Mpa
-100°C: ≤0.3
-40°C: ≤0.16
ASTM D1621
Growth in the construction and remodeling industries, combined with concerns over rising energy costs and noise pollution, are fueling market demand for thermal insulation. With 40 years of dedicated experience in manufacturing and applications, the focus remains on all verticals in the commercial and industrial market. Scientists and engineers are always at the forefront of the industry. New products and applications are continuously rolled out to make people's living more comfortable and businesses more profitable.
Frequently Asked Questions
Q: Does this low-temperature insulation system require an additional moisture barrier?
No, it does not. The unique closed-cell structure and polymer mix formulation of the nitrile butadiene rubber elastic foam provide outstanding, continuous resistance to water vapor penetration across the entire thickness of the material.
Q: What is the recommended operating temperature range for the ULT and LT grades?
The ULT Grade is designed to withstand extreme cold environments, operating efficiently between -200°C and 125°C. The LT Grade is recommended for temperatures ranging from -50°C to 105°C.
Q: What are the standard dimensions and sizes available for these insulation rolls?
The insulation is available in thickness specifications of 3/4" (20mm) with a roll size of 10m x 1m (10㎡/roll), and 1" (25mm) with a roll size of 8m x 1m (8㎡/roll).
Q: What are the key application areas for these insulation materials?
Common applications include low-temperature storage tanks, industrial gas and agricultural chemical production plants, platform piping, gas stations, and nitrogen plants.
Q: How well does this material resist moisture according to industry standards?
Both ULT and LT grades feature a closed cell ratio of over 95% (tested under ASTM D2856). The LT grade has a wet resistance factor (μ) of over 10,000 (tested under EN12086 / EN13469) and a low water vapor permeability coefficient of 0.0039g/h.m² (for a 25mm thickness).
Q: What is the thermal conductivity of the ULT grade at extremely low temperatures?
Based on the ASTM C177 test standard, the ULT grade maintains a low thermal conductivity of 0.028 W/(m·K) at -100°C and decreases to 0.021 W/(m·K) at -165°C, ensuring high thermal performance.
