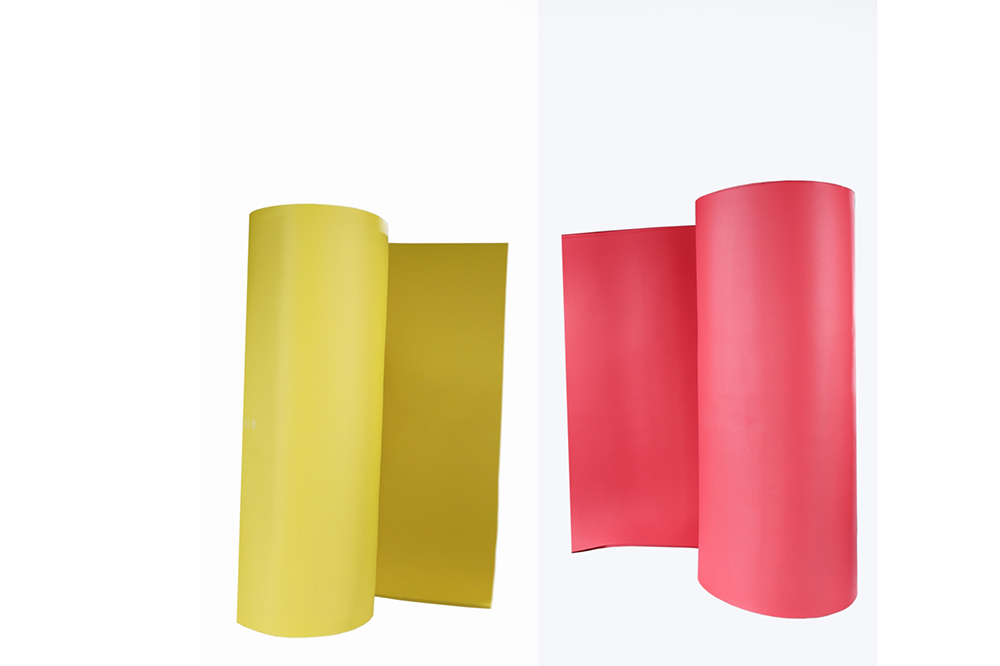

The high-quality colorful rubber foam insulation sheet is a flexible and lightweight elastomeric nitrile rubber material designed for thermal insulation. Rubber foam insulation sheet is generally black in color, other colors are available upon request. The product comes in the tubing, roll, and sheet form. The flexible sheet is specially designed to fit the standard diameters of copper, steel, and PVC piping.
Dimensions Specification
| Dimensions Details |
| Thickness |
Width 1m |
Width 1.2m |
Width 1.5m |
| Inches |
mm |
Size (L*W) |
㎡/Roll |
Size (L*W) |
㎡/Roll |
Size (L*W) |
㎡/Roll |
| 1/4" |
6 |
30 × 1 |
30 |
30 × 1.2 |
36 |
30 × 1.5 |
45 |
| 3/8" |
10 |
20 × 1 |
20 |
20 × 1.2 |
24 |
20 × 1.5 |
30 |
| 1/2" |
13 |
15 × 1 |
15 |
15 × 1.2 |
18 |
15 × 1.5 |
22.5 |
| 3/4" |
19 |
10 × 1 |
10 |
10 × 1.2 |
12 |
10 × 1.5 |
15 |
| 1" |
25 |
8 × 1 |
8 |
8 × 1.2 |
9.6 |
8 × 1.5 |
12 |
| 1 1/4" |
32 |
6 × 1 |
6 |
6 × 1.2 |
7.2 |
6 × 1.5 |
9 |
| 1 1/2" |
40 |
5 × 1 |
5 |
5 × 1.2 |
6 |
5 × 1.5 |
7.5 |
| 2" |
50 |
4 × 1 |
4 |
4 × 1.2 |
4.8 |
4 × 1.5 |
6 |
Key Features
Safety & Environmental Protection
Technical Specification Data
| Technical Data |
| Property |
Unit |
Value |
Test Method |
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m3 |
45-65Kg/m3 |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10 ﹣¹³ |
DIN 52 615 / BS 4370 Part 2 1973 |
| μ |
- |
≥10000 |
- |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |
| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406, ISO4589 |
| Water Absorption, %by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
Good |
ASTM G23 |
Frequently Asked Questions
What is the temperature range for this rubber foam insulation sheet?
This rubber foam insulation sheet works efficiently within a temperature range of -50°C to 110°C, making it suitable for both cold and hot thermal insulation applications.
What are the fire safety ratings of the insulation sheet?
It meets Class 0 and Class 1 standards according to BS 476 Part 6 & 7 test methods, offering high-standard fire-blocking capabilities.
Is the insulation material resistant to environmental factors like UV?
Yes, it features excellent resistance to ozone, UV radiation, and general weathering, complying with ASTM G23 standards.
How does the material prevent moisture build-up?
Due to its closed-cell foaming structure, the material has a very low water vapor permeability (≤0.91×10 ﹣¹³ Kg/(m.s.pa)), providing an exceptional damp-proof barrier.
Does this insulation sheet support mold or fungi growth?
No. Under the ASTM 21 test, the insulation sheet demonstrates good resistance to fungi, preventing organic growth even in humid conditions.
