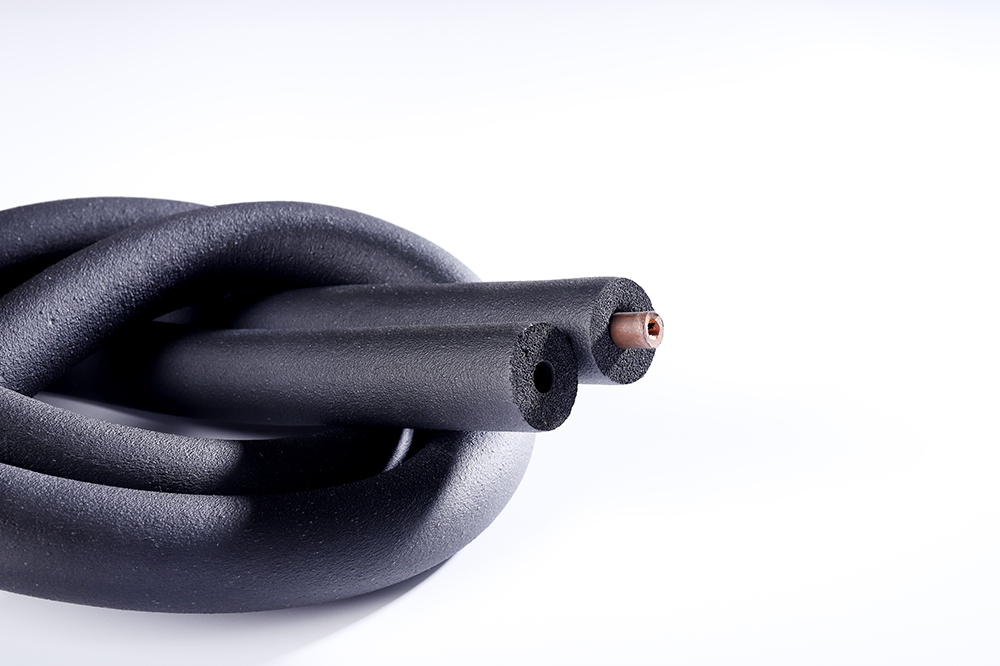

Wholesale The rubber foam insulation tube products Manufacturers, Supplier

We produce Rubber-plsatic Foamed Heat Preservation Products(PVC/NBR)by introducing newest technology and craft and automatic processing line.The major materials we use are NBR/PVC,which are undergone ban bury,vulcanization and foam,Therefore,the main characteristics are:Low density,close bubble structure,low thermal conductivity,Water vapor Transmissibility extremely low,low water -absorptive ability,Fire-proof performance well,superior anti-agde performance,good flexibility,easy to install.This product is suitable for a wide temperature range,from -50℃ is to 110℃ ,also has good anti-adge performance and durability. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Send Inquiry

Product Description

Key Features & Advantages

Excellent fire-resistance performance & Sound absorption.

Low thermal conductivity (K-Value).

Good moisture resistance.

No crust rough skin.

Good pliability and good anti-vibration.

Environmentally friendly.

Easy to install & Nice appearance.

High oxygen index and low smoke density.

The rubber foam insulation tube products are produced by imported high-end technology and automatic continuous equipment. A rubber foam insulation material with excellent performance has been developed through in-depth research. The major materials used are NBR/PVC.

Technical Data

Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m³	45-65Kg/m³	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity (at -20°C)	W/(m.k)	≤0.030	ASTM C 518
Thermal Conductivity (at 0°C)		≤0.032
Thermal Conductivity (at 40°C)		≤0.036
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 & 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Frequently Asked Questions (FAQ)

What are the primary materials used in these insulation tubes?

The insulation tubes are manufactured primarily using high-quality NBR/PVC elastomer blends, processed through advanced continuous automation equipment to ensure optimal density and thermal properties.

What is the thermal conductivity (K-Value) of the material?

The material features low thermal conductivity: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, ensuring excellent thermal efficiency.

How does this insulation perform in case of fire?

The material achieves a Class 0 and Class 1 fire rating according to BS 476 Part 6 & 7 standards. It exhibits high flame resistance, a high oxygen index of ≥36, and a low smoke density.

What is the applicable temperature range for these tubes?

The operating temperature range is wide, spanning from -50°C to 110°C, making it suitable for a variety of hot and cold piping insulation applications.

Does this insulation resist moisture and water vapor?

Yes, it features a highly effective closed-cell structure with a water vapor permeability of ≤0.91×10 ﹣¹³ Kg/(m.s.pa) and a moisture resistance factor (μ) of ≥10000, preventing condensation and moisture penetration.

Is the material resistant to environmental factors like UV and mold?

Absolutely. The material offers good resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and UV/weathering (ASTM G23), ensuring durability in diverse operating conditions.
