China fiber glass wool thermal insulation blanket Factory, Pricelist
♦ Heat-insulation and Heat-preservation
♦ Sound absorption and noise reduction
♦ Stable thermal conductivity
♦ Hydrophobicity not less than 98%, sustained moisture resistance
♦ Excellent fire-proof performance---non flammable CLASS A
♦ No smoke and no toxic gases emission
♦ In compliance with green building regulations
Glass Wool Insulation blanket is non combustible, thermal and acoustic insulation. There is no emission of toxic gases when exposed to fire and thus is one of the most eco-friendly options in insulation of entire building services.
Technical Data
Item
Unit
Index
Standard
Density
kg/m3
10-48
GB/T 5480.3
Average fiber dia
μm
5-8
GB/T 5480.4
Water content
%
≤1
GB/T 16400-2003
Grade of combustibility
-
Non-combustible GradeA
GB 8624-1997
Reshrinking temp
℃
250-400
GB/T 11835-2007
Thermal conductibility
w/m·k
0.034-0.06
GB/T 10294
Hydrophobicity
%
≥98
GB/T 10299
Moisture rate
%
≤5
GB/T 5480.7
Sound absorption coefficient
-
1.03 product reverberation method 24kg/m3 2000HZ
GBJ47-83
Slag inclusion content
%
≤0.3
GB/T 5480.5
Aluminum foil facing glass wool insulation blanket will be available, too. Aluminum foil facing glass wool blanket is designed to meet the market demand for high standards of green and environmental protection building materials, and avoid the harm of formaldehyde, phenol and other harmful substances on human body and environment. Moreover, aluminum foil glass wool blanket can maintain good thermal insulation performance no matter in high or low temperature environments.
Category A fireproof
No change in dimension in case of exposure to heat and humidity
Not fall off in time, decay, get moldy, corrosion affected or oxidize
Not battered by bugs and microorganisms
Not torn during application or reduces by wastage due to the specifications of the glasswool
Easily adapts to any type of wood and metal roof
Easily be taken to the roof and applied by cutting
Durable against acidity
Decreases the fuel consumption of the buildings by a significant amount
Acts as sound isolation as well as thermal isolation with its vibration conserving feature
Specification and Dimension
Product
Length (mm)
Width (mm)
Thickness (mm)
Density (kg/m3)
Glass wool Insulation blanket
10000-20000
1200
30-150
12-48

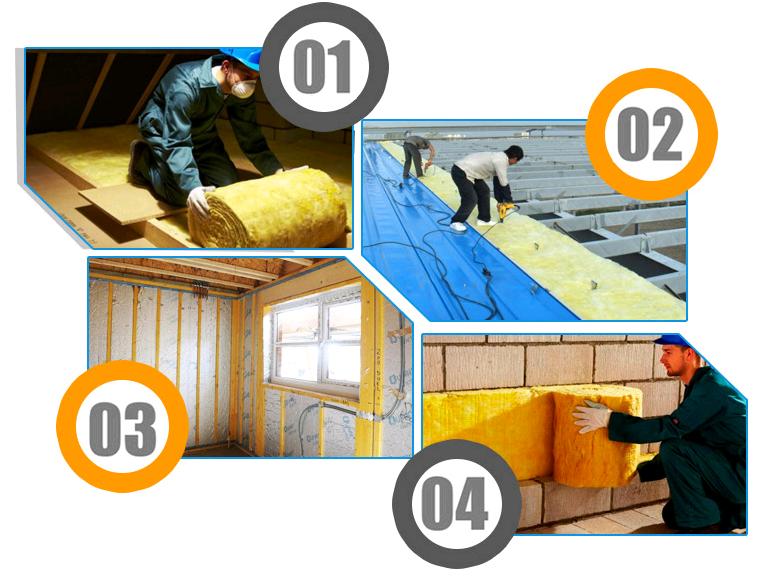

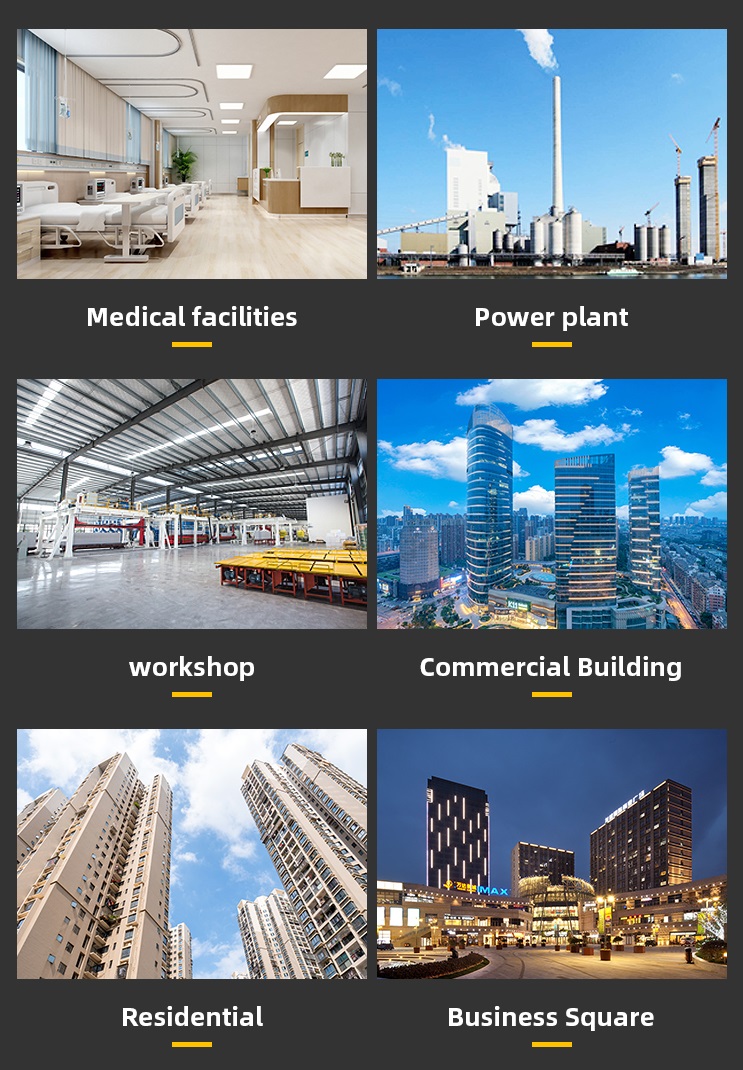

Glass wool insulation blanket can be used for building roof, HVAC systems, solar energy systems, and air condition pipes.
When it is used for roof insulation, it is not torn during application or reduces by wastage due to the specifications of the glasswool. And easily adapts to any type of wood and metal roof. Also due to its being light, it can easily be taken to the roof and applied by cutting. It is durable against acidity. It decreases the fuel consumption of the buildings by a significant amount.
When it is used for HVAC systems, the glasswool blankets of which one side is covered with vapor impermeable Aluminium foil. It also acts as sound isolation as well as thermal isolation with its vibration conserving feature. The Aluminium foil coat that the blanket of the air condition has the highest resistance to vapor permeability. Especially in the cooling systems, this coating of Aluminium foil is very important against the risk of corruption of insulation in time. It allows easy and fast application with its self adhesive maintenance pins.
Frequently Asked Questions
Is the glass wool insulation blanket fireproof?
Yes, the glass wool insulation blanket is non-combustible and has a Grade A fireproof rating according to GB 8624-1997 standards. It does not emit toxic gases when exposed to fire.
Can this insulation blanket be installed on both wood and metal roofs?
Yes, it easily adapts to any type of wood and metal roof. Because of its lightweight properties, it is easy to carry to the roof and shape by cutting.
What are the advantages of using aluminum foil facing?
The aluminum foil facing is vapor impermeable, offering the highest resistance to vapor permeability. This is especially critical in cooling and HVAC systems to prevent the degradation of insulation over time.
Does the insulation degrade or support mold growth?
No. The glass wool insulation blanket is designed to be highly durable. It will not fall off over time, decay, get moldy, oxidize, corrode, or get damaged by insects and microorganisms.
What are the standard dimensions available for this blanket?
The standard specifications include lengths ranging from 10,000 to 20,000 mm, a width of 1,200 mm, thicknesses from 30 to 150 mm, and densities from 12 to 48 kg/m³.
How does this insulation assist in building energy savings?
By providing exceptional thermal insulation, it significantly decreases the heating and cooling load of the structure, reducing the building's overall fuel and energy consumption.
