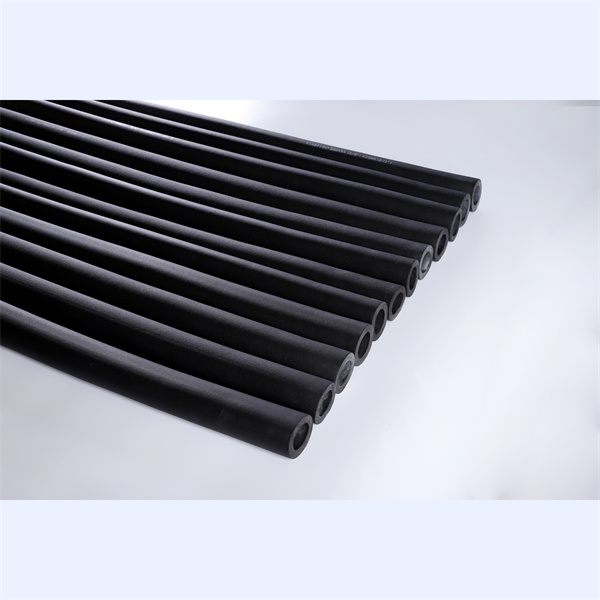

Wholesale Kingflex NBR Elastomeric Insulation Rubber Foam Tube Manufacturer, Supplier

Kingflex NBR Elastomeric Insulation Rubber Foam Tube adopts high-performance NBR/PVC as the main raw material with various quality supplementary material by special frothing process to produce the soft energy conversation foam insulation. It has closed cell construction and has many great features such as soft resistance refractive index, cold resistance, fire-retardant, waterproof, low thermal conductivity , shock and sound absorption and so on. It can be widely used in large-scale central and home air conditioning,construction, chemicals, textile and electrical industries. Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

NBR Elastomeric Insulation Rubber Foam Tube Details 1
NBR Elastomeric Insulation Rubber Foam Tube Details 2
NBR Elastomeric Insulation Rubber Foam Tube Details 3
NBR Elastomeric Insulation Rubber Foam Tube Details 4
low density close & even bubble structure
low thermal conductivity
cold resistance
extremely low water vapor transmissibility
low water absorbtive capacity
great fireproof performance
superior anti-age performance
good flexibility
stronger tear strength
higher elasticity
smooth surface
no formaldehyde
shock absorption
sound absorption
easy to install

NBR Elastomeric Insulation Rubber Foam Tube is generally black in color, other colors are available upon request. The extruded flexible tube are specially designed to fit the standard diameters of copper, steel and PVC piping.

NBR Elastomeric Insulation Foam Tube Black
Technical Data Sheet
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10⁻¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Elastomeric Insulation Production 1
Elastomeric Insulation Production 2
Elastomeric Insulation Production 3
Elastomeric Insulation Application 1
Elastomeric Insulation Application 2
Elastomeric Insulation Warehouse
Elastomeric Insulation Packing
Frequently Asked Questions (FAQ)
Q1: What are the primary features of the NBR Elastomeric Insulation Rubber Foam Tube?
It features a low density, close and even bubble structure with low thermal conductivity. It offers excellent cold resistance, extremely low water vapor transmissibility, great fireproof performance, and superior anti-aging properties. Additionally, it has good flexibility, strong tear strength, and high elasticity.
Q2: What is the applicable temperature range for this NBR rubber foam insulation?
The insulation foam has a working temperature range of -50°C to 110°C, tested in accordance with GB/T 17794-1999 standards.
Q3: What are the fire safety ratings and indices of this product?
The insulation tube has a Fire Rating of Class 0 & Class 1 (according to BS 476 Part 6 & 7), a Flame Spread and Smoke Developed Index of 25/50 (ASTM E 84), and an Oxygen Index of ≥36 (GB/T 2406, ISO4589).
Q4: Does the NBR insulation foam offer moisture protection?
Yes. It has extremely low water vapor permeability (≤0.91×10⁻¹³ Kg/(m.s.pa) tested via DIN 52 615 / BS 4370) and a water absorption capacity of 20% by volume (ASTM C 209), ensuring long-term thermal performance.
Q5: Is this material resistant to outdoor environmental factors?
Yes, the technical data proves it has good resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), as well as excellent resistance to U.V. radiation and general weathering conditions (ASTM G23).
Q6: What types of pipes are these foam tubes compatible with?
The extruded flexible tubes are specifically designed to fit standard diameters of copper, steel, and PVC piping systems.
