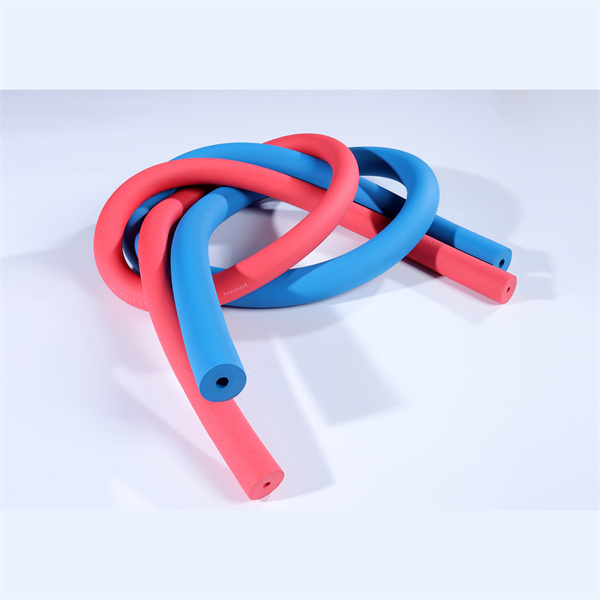

The insulated pipe is made of NBR and PVC. It doesn't contain fibrous dust, benzaldehyde, and chlorofluorocarbons. Moreover, it has low conductivity & heat conductivity, good moisture resistance, and is fireproof.
The insulated pipe can be widely used in cooling units and equipment of central air conditioning, freezing water pipes, condensing water pipes, air ducts, hot-water pipes, and more.
The insulated pipe can be easily installed with new pipelines or used on existing pipelines. The only thing you need to do is cut it, then glue it. It maintains optimal insulation performance post-installation.
A full range of models to choose from: wall thickness ranges from 6.25 mm to 50 mm, and the inside diameter ranges from 6 mm to 89 mm.
Products are well-stocked, and the supply capacity is highly sufficient to ensure timely dispatch and delivery.
We can offer tailored services according to customers' specific requirements and project requests.
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 |
The insulated pipes are made of premium NBR (Nitrile Butadiene Rubber) and PVC. They are entirely free from fibrous dust, benzaldehyde, and chlorofluorocarbons, ensuring safe and reliable operation.
They are ideal for cooling units and central air conditioning systems, freezing water pipes, condensing water pipes, air ducts, hot-water pipes, and various other industrial or commercial piping systems.
Installation is simple and straightforward. For both new and existing piping systems, you only need to cut the insulation tube, place it over the pipe, and seal it using specialized adhesive glue. This process does not impact its structural performance.
We offer a complete range of sizing options. Wall thicknesses range from 6.25 mm to 50 mm, and the inside diameters range from 6 mm to 89 mm to fit different piping specifications.
The insulated pipes achieve Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7 test protocols, along with a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84 standards.
Yes. The material demonstrates good resistance to ozone, UV radiation, weathering, and fungi growth, making it highly durable for diverse environmental conditions.
