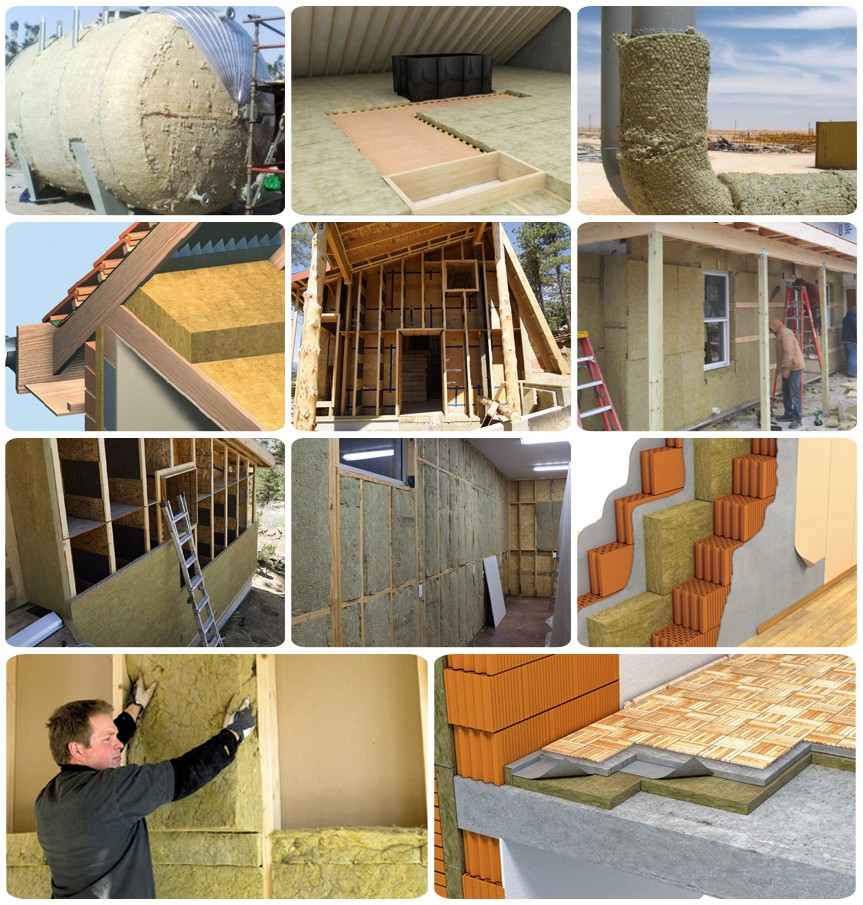

Rock wool insulation board is mainly used for external walls. Together with the roof, they form the envelope of any building, protecting everyone and everything inside. They also cover the largest surface area, making them a prime area for preventing heat loss. The main place where heat is lost is by escaping through poorly insulated walls.
Key Functionality
With rock wool insulation board, living spaces can be made warm, energy efficient and compliant with modern building standards – as well as gaining additional benefits in terms of acoustics, indoor comfort and fire safety.
Technical Indicators
Technical Indicators
Technical Performance
Remark
Thermal conductivity
0.042w/m.k
Normal temperature
Slag inclusion content
<10%
GB11835-89
Non-combustible
Class A
GB5464
Fiber diameter
4-10um
-
Service temperature
-268 to 700℃
-
Moisture rate
<5%
GB10299
Tolerance of density
±10%
GB11835-89
Discover the importance of insulation for exterior walls, and the positive impacts it can bring. These boards have many advantages such as light weight, good performance as a whole and low coefficient of heat conductivity. They are widely used in construction and other industries in the heat preservation field.
It also has a good function of sound absorption, so it can be used to reduce industrial noise and deal with the sound absorption in buildings. Rock wool is produced with natural basalt as the main material, melted at high temperatures and made into artificial inorganic fibers by high-speed centrifugal equipment, then added with special agglomerates and dust-proof oil, heated and solidified into various rock wool heat preservation products in different specifications according to different requirements.
Specifications & Sizes
Rock wool boards / water-proof rock wool boards
Size
mm
Length: 1000 | Width: 630 | Thickness: 30-120
Density
kg/m³
80-220
Rock wool insulation board is central to developing energy-efficient walls, and meets modern code requirements by providing continuous insulation for residential, commercial and industrial buildings.
Frequently Asked Questions
What is the primary application of rock wool insulation board?
It is mainly used for building external walls and roofs, forming a protective thermal envelope to prevent heat loss and improve building energy efficiency.
What are the fire safety ratings of the rock wool insulation board?
The rock wool board is rated as Class A non-combustible material according to the GB5464 standard, providing exceptional fire safety for residential and commercial structures.
What is the thermal conductivity of this insulation board?
It features a low thermal conductivity of 0.042w/m.k at normal temperatures, ensuring excellent heat preservation and reduced energy costs.
Does rock wool insulation provide noise reduction?
Yes, because of its porous structure, the rock wool board offers good sound absorption, making it suitable for reducing industrial noise and managing acoustics within buildings.
What are the standard sizes and densities available?
The standard sizes are 1000mm in length, 630mm in width, and thickness ranging from 30mm to 120mm. The density range is between 80-220 kg/m³.
How is this rock wool insulation board manufactured?
It is manufactured using natural basalt as the main material. It is melted at high temperatures, transformed into artificial inorganic fibers using high-speed centrifugal equipment, mixed with special agglomerates and dust-proof oil, and then solidified into various shapes.
