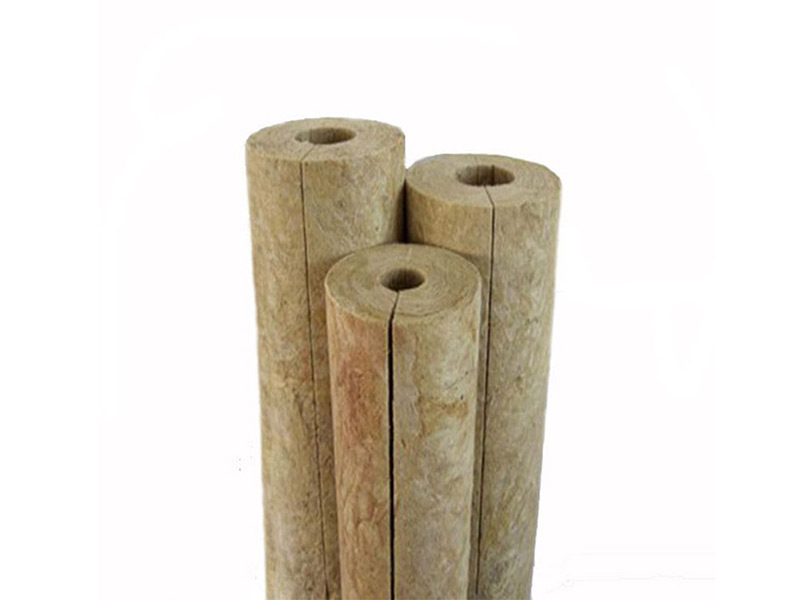

Wholesale rock wool thermal Insulation Pipe Manufacturers, Factory
Kingflex rock wool insulation pipe is produced with natural basalt as main material, melted in high temperature and made into artificial abio-fibers by high speed centifugal equipment, then added with special agglomerates and dustproof oil, heated and solidified into various rock wool heat preservation products in different specifications according to different requirements.Kingflex rock wool insulation pipe have many advantages such as light weight, good performance as a whole and low coefficient of heat conductivity. They are widly used in construction and other inductries in heat preservation field. It also has a good function of sound absorption, so it can be used to reduce the industrial noise and deal with the sound absorption in building.
Designed to be applied around pipes carrying substances at temperatures between 12°C and 150°C, our products help prevent heat loss during transportation – and can protect against dangerous fire hazards.
Hot pipe insulation forms an important part of rock wool insulation pipe Heating, Ventilation and Air Conditioning (HVAC) range. Hot pipes are widely used for heating and warm water distribution in large buildings and complexes, such as airports, factories and high-rise residential blocks.
The distances travelled by hot pipes can be long, and the spaces they pass through extremely cold. This is especially true during the autumn or winter months, when the need for them is at its highest.
Rock wool Pipes (Waterproof)
Size
mm
length 1000 | ID 22-1220 | thick 30-120
Density
kg/m³
80-150
Insulation acts to keeps the heat inside the pipes while air or water is being transported from the boiler/heating system to central heating units. This helps ensure minimal temperature loss while in transit, and a comfortable indoor atmosphere.
Frequently Asked Questions
QWhat is the thermal conductivity of the rock wool insulation pipes?
The thermal conductivity of our rock wool insulation pipes is 0.042w/m.k at normal temperature, providing excellent thermal efficiency for heat conservation.
QWhat temperatures can these rock wool insulation pipes withstand?
The service temperature range of the rock wool pipes is from -268℃ up to 700℃, making them suitable for various demanding industrial and HVAC environments.
QWhat dimensions and densities are available?
The pipes are available in lengths of 1000 mm, with inner diameters (ID) ranging from 22 mm to 1220 mm and thicknesses from 30 mm to 120 mm. The density ranges from 80 to 150 kg/m³.
QAre these rock wool insulation pipes fireproof?
Yes, the rock wool pipes achieve a Class A non-combustible rating according to the GB5464 standard, ensuring reliable fire protection for pipeline systems.
QHow does the product perform in terms of moisture resistance?
These waterproof rock wool pipes have a moisture rate of less than 5% (complying with the GB10299 standard), preventing moisture penetration and retaining high insulation performance.
